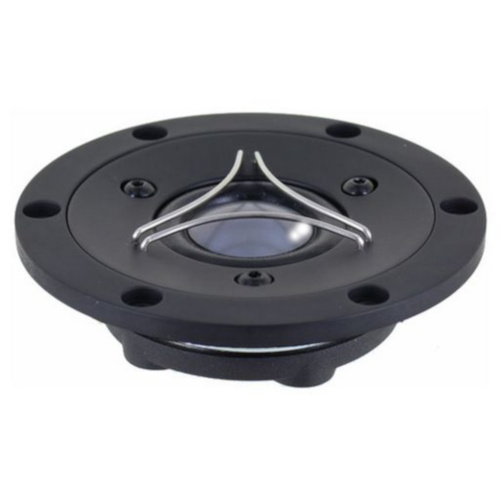

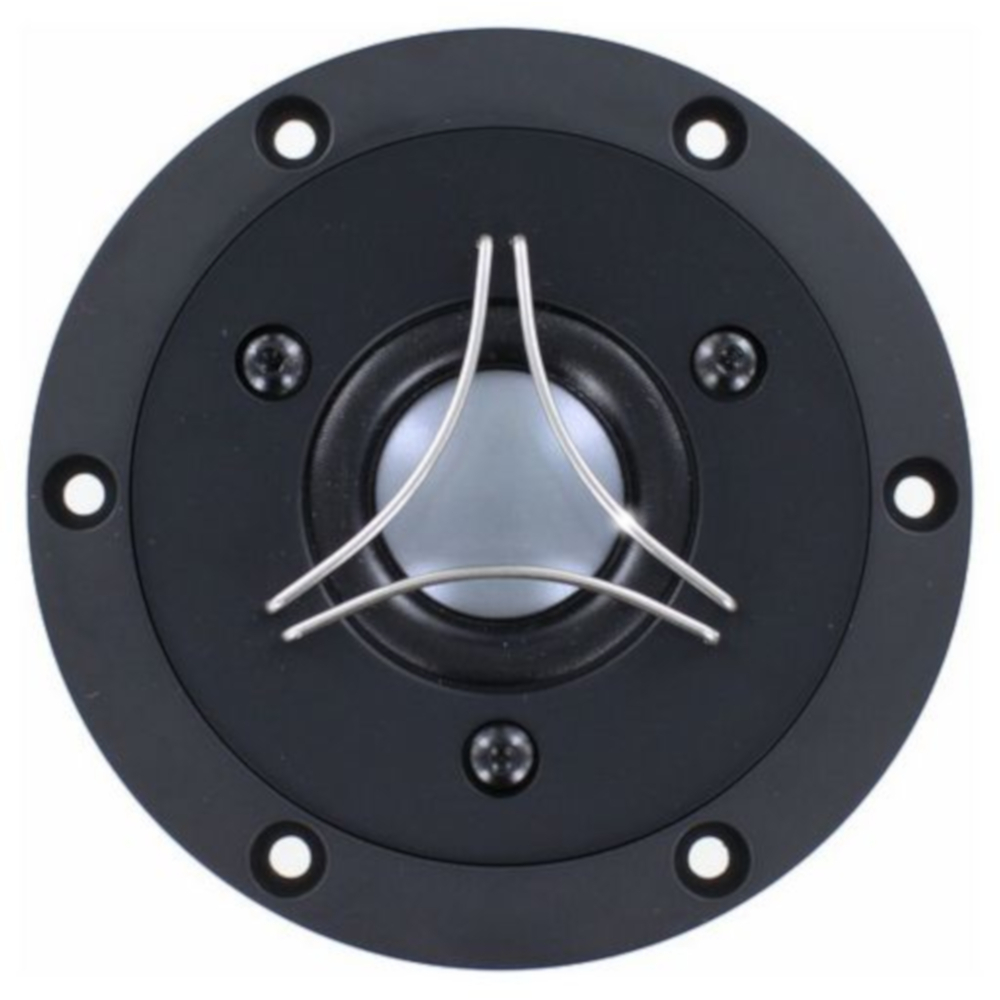

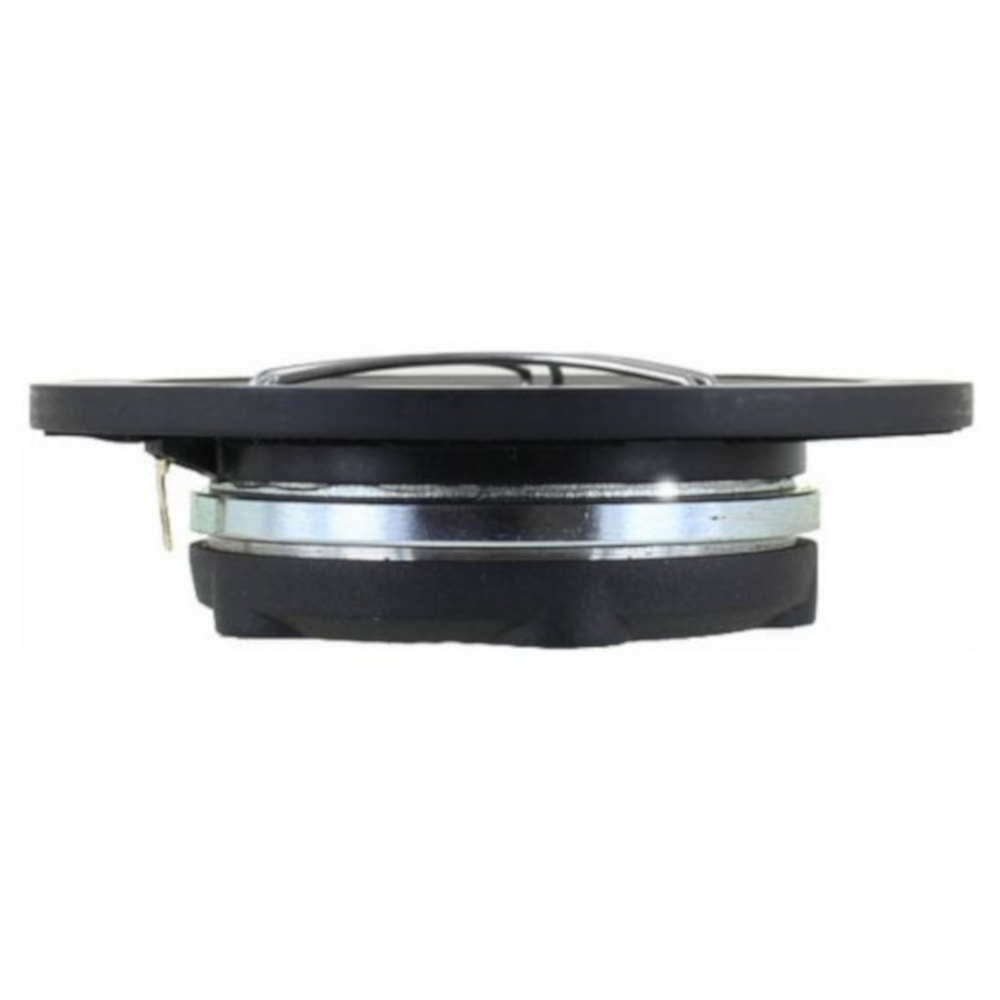

SATORI 1¼" DOME TWEETER BERYLLIUM NEO

Satori Tweeter Beryllium

29MMØ BERYLLIUM DOME

Beryllium dome for non-resonant high frequency extension. Two part aluminium faceplate with integrated mechanical decoupling. Dual balanced compression chambers for improved dynamics. Dual copper caps for absolute minimum voice coil inductance and minimum phase shift. High saturation neodymium motor system with T-shaped pole piece for lower distortion. Non-reflective cast aluminium chamber with optimized damping for improved dynamics. Shallow flow optimized magnet structure for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency for extended range.

Features:

  • Beryllium dome for non-resonant high frequency extension
  • Two part aluminium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range

Specifications:



Description Satori Tweeter Beryllium
Type Tweeter
Size 1'
Price Type each
Power 80Wrms
Coil 29mmØ

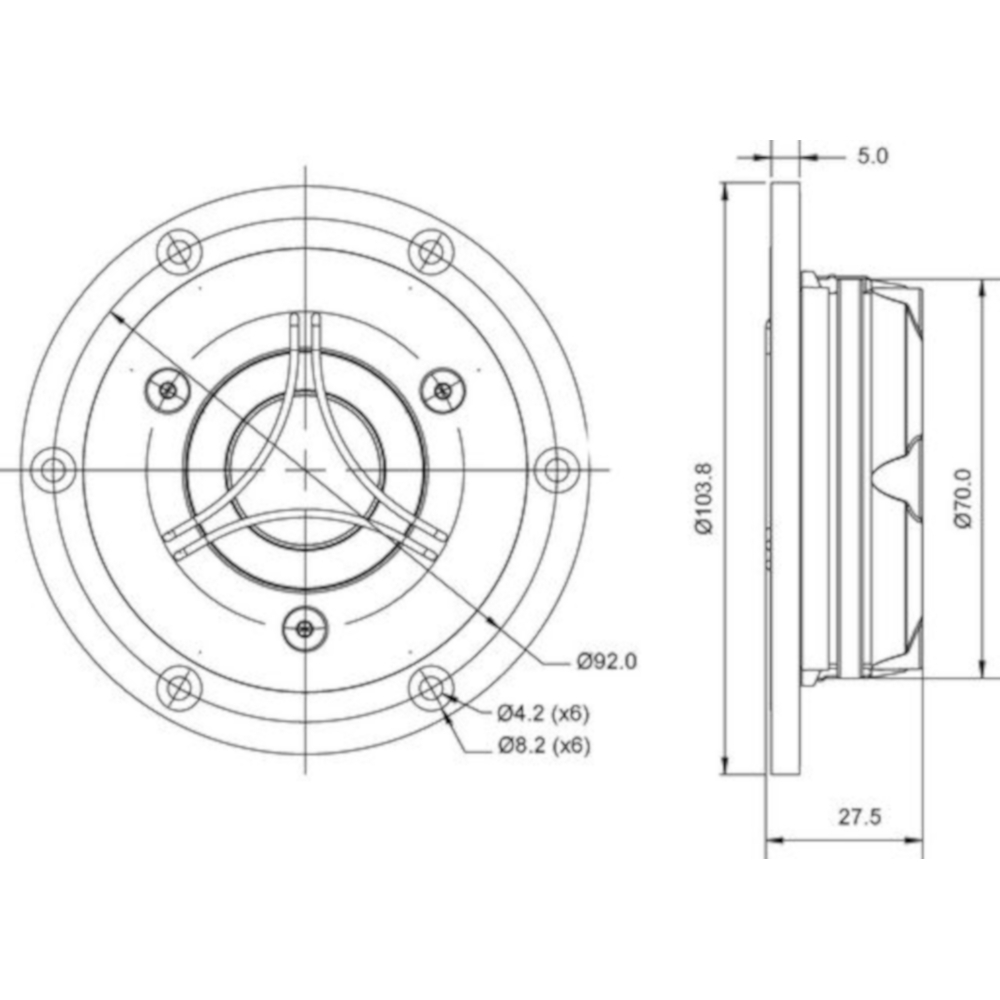

Width 103.8mmØ
QTY 1
Impedance 8Ω Re 6.2Ω
Depth 22.5mm
Mag. 0.11kg
Sens. 93.5dB
Re 6.2Ω
Qms 1.75
Qes 0.8
Qts 0.55
Sd 9.6cm²
Fs 750Hz
Mms 0.44g
Zn 0.04mH
Le 0.04mH
Diam. 25mmØ
Series Satori
Manufacturer Satori
Materials Beryllium Neo
Impedance (Ohm) 8 ohm
Power (RMS) 51-100 Watt
Inch 1
Colour Black
Bl 4.1Tm
Xmax 0.4mm
Flux (lm) 1.5T
Note. Data is correct to stock at time of printing, however SBA are constantly improving their stock and data may change without notice. For the latest datasheets
Sold As Single
Grille SAT29-GRL
Page 9

(TW29BN-B-8)

12 months

SKU TW29BN-B-8
Model # TW29BN-B-8
Unit Of Measure 1
