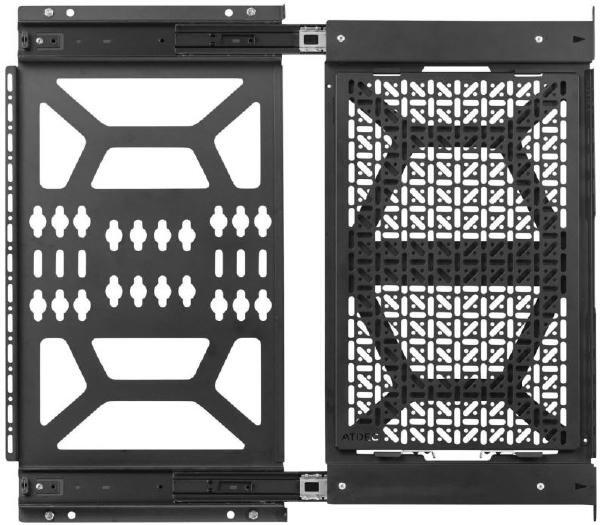

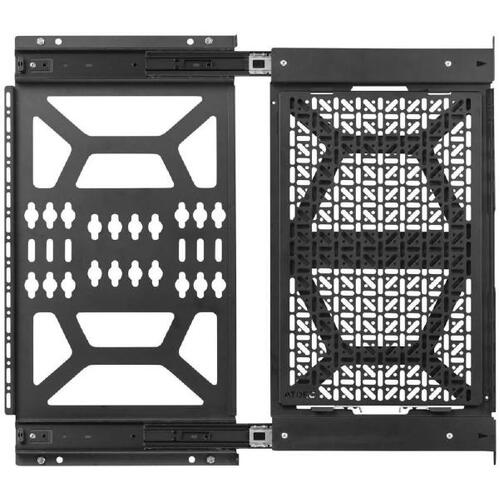

Atdec AD-AC-PS Device Storage Sliding Panel

Atdec AD-AC-PS Device Storage Sliding Panel

This sliding panel is designed to house equipment such as mini PC, connectivity, and other technology devices. It is typically mounted behind a wall display in a video conference room.

AD-AC-PS is expected to be used in meeting rooms with display/s larger than ~60". The mounting bracket fixes to the wall and devices attach to the sliding panel, which is easily pulled out for device access. The sliding panel detaches from the mounting bracket.

Choose me for:

• Video conference rooms with wall mounted display
  • Displays 60"+ usually conceal the sliding panel
  • Sufficient clearance to wall (see note below)
• Eliminating need to remove the display to access rear-mounted devices
• Vastly more efficient device access
• Also mounts to Atdec ADB modular digital signage

Note: consider the under-desk hinged media panel where insufficient clearance is available behind a mounted display.

Features:

• Weight capacity 8kg (17.6lb)
• Generous mounting area
  • 273 x 420mm (10.7" x 16.5")
• Extended sliding distance
  • 350mm (13.5")
• Easy universal device mounting
  • Screws, cable ties, hook & loop strips (eg Velcro™)
• Removable mounting tray
• Left or right side installation (slide out either side)
• Security features
• Steel construction
• Warranty: 10 years

Important: The total minimum distance from the wall to the back of the display is a sum of the following dimensions:
B (minimum) = A + C + D

A: depth of the tallest device attached to the sliding panel
C: depth of the sliding panel 18mm (0.7")
D: clearance of 3mm (0.1") recommended to allow for variance

AD-AC-PS
