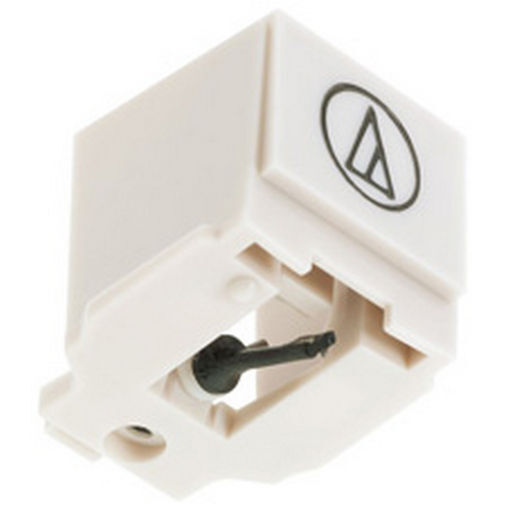

ATN3600L REPLACEMENT STYLUS

ATN3600L STYLUS Round Tracking force 3.0g (NOT AUDIO TECHNICA BRAND)

AT3600L use ATN3600L

Dual-magnet replacement stylus to replace the popular ATN3600L.

To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.
To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.

  • Although these stylii will fit all the cartridges/turntables/systems listed, some stylus are intended for turntables which have tonearms that are NOT adjustable like the Audio Technica LP60 or Sony LX300.
  • Non-adgustable = Use the preset 3g tracking force stylus D1155G or ATN3600L (Round tip) is designed for best operation on novice turntables preset with no adjustments for tracking force or azimuth
  • Adjustable = Use the above 3g or the D1155 with a tracking force of 2g. The cross-reference listed turntables, provided they have adjustable tracking force, are generally best suited to the 2g version.
  • Aiwa : AN11
  • Audio Technica : ATN3600L, ATN3600LAX, ATN3650L, ATN3650, ATN 3601, ATN3600 , ATN91, ATN90
  • Akai : RS82
  • Dual : DN239, DN251, DN251S, DN251E
  • Columbia-Denon : DSN72, DSN84, DSN82
  • Hitachi : DSST7
  • Kenwood Trio : N74
  • JVC Nivico : DT58, DT55
  • National-Panasonic-Technics : EPS43STSD,
  • Onkyo : DN61ST, DN63STE
  • Sansui : SN111
  • Pioneer : PN210, PN240, PN230
  • Philips : D780
  • Sony : ND142G, ND155G
  • Sharp : STY163, STY138, STY140, STY141
  • Sanyo : STW8J, STL5D
  • Yamaha : N7700, N7900
  • Toshiba : N16D
  • Novatech : HT506, HT530, HT531
  • NEC : MC570, MC571
  • Morse : TS725
  • Marantz : CT42
  • Goldstar : ATN91
  • AWA : ATN3601
  • Voxon : VH5, VH10
  • Trakton : TRD195
  • TEAC: JC75, P190, P505
  • Silver : SL500, SL550
  • Sherwood : PD608, PD913, PD701, PD702
  • Samsung : VIP680
  • PYE : ATN91
  • Brands/Cartridges using this stylus:
  • Aiwa: E770, PXE451, PXE45, PXE55, PXE75, PXE77, PXE88, PXE333, PXE550, PXE750, PXE770, PXE850, PXE855, V770, X33, X55, X78
  • Audio Technica: AT90, AT91, AT94E, AT2001, AT2002, AT2003, AT2004, AT2005, AT2006, AT3600, AT360LAX, AT3650, AT3601, AT3651, AT3651, AT3652E
  • Pioneer: PC210, PC230, PC240
  • Philips: GP780
  • Sony: VL42G
  • Brands/Turntables or Systems using this stylus:
  • Akai : APB1, APM350, APM370, APM600, PXE900
  • Audio Technica : AT-LP60, AT-LP60-USB
  • Cord : DJ-U Pro
  • Crosley : CR6010A, C100, C200, CR6232, CR6233, CR6234, CR6249A, CR6250A, Collegiate, Nomad, Bermuda, Dansette Jnr, Keepsake, Keepsake Delux
  • Denon : DP200, DP29F
  • Dual : CS90, CS100, CS120, CS123, CS138, CS415, CS455, CS435-1, CS505-2, CS505-4, CS511, CS514, CS520, CS525, CS610Q
  • Hitachi : HT26, HT28, HT44L, HT55L, MD16, MD26, MD28, SDT44L, SDT55L, SDT60, SMD50
  • Kenwood Trio : KD38, KD39R, KD291R, KD4020, KD5010, P26, RXD25L
  • JVC : ALE1, ALE2, ALE33, DC33, GX120, GX222, GX240, JLA200, KLA200, KLE300, LA10, LA100, LA110, LAX3, LAX 11B, LFX4, LFX5, LFX210, W1, W2, W3, W5CD, W300, W400, QLA200, QLF300, QLF320, QLFX5, W33, W34
  • National Panasonic Technics : P440, Phoenix, SG152, SG235, SGD35, SGV05, SGV06
  • Onkyo : CP1007, CP1022, CP1026A, CP1033, CP1046F, CP1057F, Disco1000, Licence 22, Licence 25, Licence 85, Licence 1000, PX55R
  • Optimus : Lab-1100 Lab1100
  • Sansui : P1000
  • Pioneer : Avanti 7200, PA1, PA3, PA5, MSZ7, PDZ71, PE66A, PL202, PL210, PL222Z, PL223, PL230, PL310, PL333Z, PL335, PL340, PL466, PL530, PL540, PL550, PL555Z, PL990, PL2200, PLJ2500, PLS30, PLZ71, PLZ81, PLZ82, PLZ85, PLZ91, PLZ92, PLZ93, PLZ94, PZP1004, S1, S2, S3
  • Philips : 3in1, EAK1023M, EAK2006, F880, F883, S1628, S1728, S4100, S4200, TTXC1, XC2, XC3, XC2115, XC3006
  • Sony : Comp19, Comp25, Comp26, Comp28, Comp40, Comp48, Comp49, Comp58, Comp69, Comp74, Comp75, Comp76, Comp87, Comp100, Comp110, Comp510, Comp610, Comp710. EXD550W, LBTV701, PS150, PS155, PS200, PS311, PS320, PSD705, PSLX33, PSLX35, PSLX50, PSLX40, PSLX43P, PSLX45, PSLX47P, PSLX50, PSLX52Y, PSLX60, PSLX62, PSLX66, PSLX70, PSLX100, PSLX155, PSLX200, PSLX220, PSLX231, PSLX235, PSLX250, PSLX285, PSLX295, PSLX300, PSLX300USB, PSLX311, PSLX310, PSLX320, PSLX340, PSLX431, PSLX700, PSV701, PSV702, PSV901, System 28, XOD1, XOD5, XOD8, XOD201, XOD301, XOD501, XOD550, Z2000, Z3000, Z5000, PSLX250H,
  • Sharp : 1620, CP1600, CP1900, GX88, N15, RP111, RP302, RP307, RP320, SC6900, SGF650, System111, System160, System304, System320, System650, System 2526
  • Sanyo : DCXW8, DCXW17, DCXW18, G1400, G3230, G5230, GXT260, System220, System330, TP220, TP1400, TPC20, W8, W17, W18, W27
  • Yamaha : P05, P06, P07, P17, P25, P27, P700, P720, P1520, PF30, TT17, TT25, TT250, TT300, TT320, TT330, TT400, TT520, TT700, PF20, TT500
  • Toshiba : SRV9, SRV12
  • Novatech : 668, HT506, HT530, HT531, MAG530, MAG725, MD200, MD500XT, N5100V
  • NEC : MC570, MC571
  • Morse : TS725
  • Marantz : TT42, TT5005
  • Goldstar : GCD82P, GCM-CD1, GSA5300, GSA5420, GSP208
  • AWA : S601, S802
  • Voxon : D0170A, DJ0170A, TT1010, VH5, VH10
  • Trakton : TRD195
  • TEAC : CG7700, CSP208, CSP308, CSP3500, JC75, N595, N707, P190, P305, P440, P707, P708, P988, PS708, PS900, SS700, SS800
  • Silver : SL500, SL550
  • Sherwood : IM2893CD, SS1004, SS1020, PD411, PD608, PD701, PD702, PD724, PD728, PD801, PD913, PD7018, PD7028, ST870, ST101, ST1018, ST1028, ST1620, Dek7U
  • PYE : JH302, MC8125, MC8133, MC8331, MC8533, MC8700, MD7, P4, P4505, P4507, P4509, PL4, PL12, TT1M
  • DJTech : Vinyl USB 10

Do not upgrade from ATN3600L to ATN91R if your tonearm does not allow tracking force

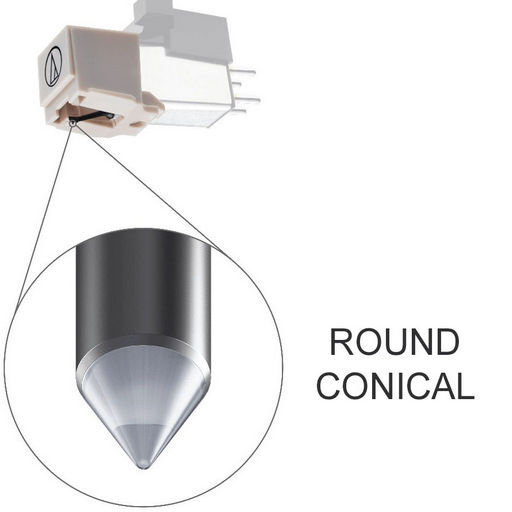

Tip Round
Tracking Force 2.5-3.5g
Manufacturer Generic
Stylus ATN3600L
Suits Cartridge Audio-Technica AT3600
Type Variable Magnet
Models Audio-Technica LP60X, LP60XBT, Lenco L-30, L-3809, LBT-120, LBT-188, LBT-345
Stylus Cartridge Audio-Technica AT3600L

(ATN3600L)

SKU ATN3600L
Model # ATN3600L
Brand Audio Technica
