Autobacs 5 Inch 2 Camera Caravan Kit

The HD5120CK is an advanced rear-view caravan camera kit that offers exceptional resolution. This hassle-free system includes all the necessary components to easily install a dependable caravan/trailer camera and monitor system. With this kit, you can confidently navigate your journey while having a clear and comprehensive view of your surroundings during reverse maneuvers, allowing you to focus on your forward progress with peace of mind.

Specifications

LCD Size:           5-Inch (Diagonal)
Display Format:       16:9
Resolution:        1024 x 600
Brightness:        < 500 CD/M2
Viewing Angles:       70° Left/Right/Up/Down
Video System:       Auto PAL/NTSC Select
Video Connect:        2 x 4-Pin (Female)
Buttons:           Touch Sensitive
Compatibility:        Standard & High Resolution Cameras
Connection Type:        Universal Standard 4-Pin Configuration (M)
Camera Triggers:        2
Monitor View:        Normal/Mirror/Flip/Mirror-Flip Image Select
Guidelines:        Selectable On/Off
Audio:            Internal Speaker
Main Menu:        Brightness/Contrast/Saturation(Colour)/
           Auto Brightness, Reset, Guidelines,
           CAM1 Delay, CAM2 Delay, Language,
           Up/Down CAM1 Mirror, CAM2 Mirror, Volume.
Operating Temp:        -20°C to +70°C
Power Input:        10-32V DC (Negative Ground)
Dimensions:       132.2W x 94.3H x 22.45D mm
           (Excluding bracket & Visor)
CAMERA 1
Image Device:        1/2.9 PV4209K
Diagonal Viewing Angle:    120°
Horizontal Viewing Angle:    103°
Signal System:        PAL
Effective Pixels:        1920(H) x 1080(V)
Resolution:        1080P
Compatibility:        High Resolution HD Series Monitors
Sync System:        Internal
Orientation:        Mirror Image
Night Vision:        4 Infrared LEDs
Illumination:        0.01 Lux with IR on
Ingress Protection:        IP68
Integrated Microphone:    Yes
Operating Temp:        -20 to 70° C
Dimensions (Excl. Bracket):    77.2W x 48.2H x 65.2D mm
Connection:        Universal Standard 4-Pin Female
Power Supply:        12V DC (9-16V)
Power Consumption:        <3W
Max Current:        <250mA

CAMERA 2
Sensor:           1/3 CMOS
Diagonal Viewing Angle:    120°
Horizontal Viewing Angle:    100°
Signal System:        PAL
Effective Pixels:        640 x 480
Resolution:        480p
Orientation:        Selectable Mirror/Non Mirror
Night Vision:        0.2 Lux
Ingress Protection:        IP67
Integrated Microphone:   No
Operating Temp:        -20 to 70°
Power Consumption:        90-300mA
Dimensions:       16.5W x 16.5H x 23D mm (Excluding Bracket)
Connection Type:        Mini 4 Pin Terminated RCA (M)
Lead:           6m
Power Supply:       9-32V DC

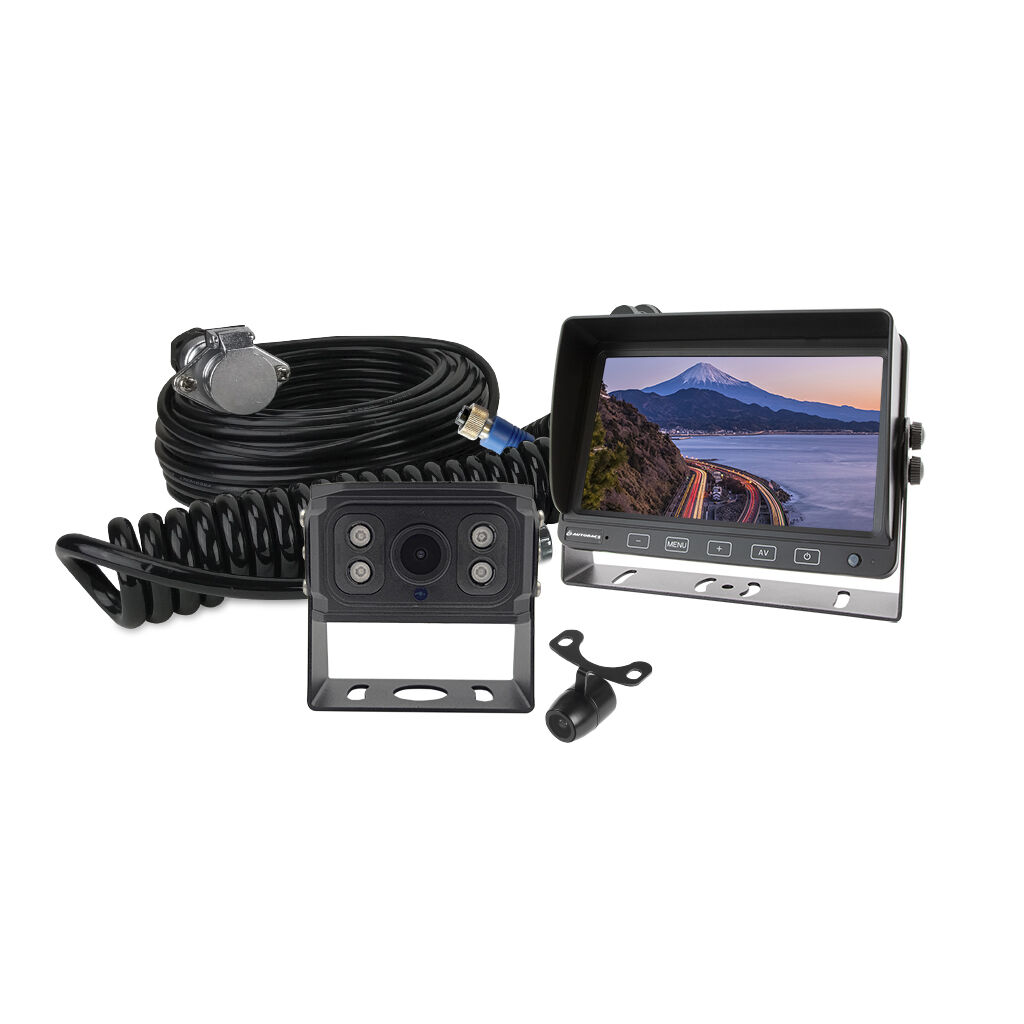

INCLUDES
Monitor
Sunshade
U-Bracket & Gymbal Knobs
Glass Mount Bracket
Wiring Loom
Camera 1
Camera 2
Camera Trigger controller
6m Mini 4-PIN To RCA Lead
4-PIN To RCA Adaptor
Curly Cable (Woza)
Trailer Cable Mounts
10m 5-PIN To 4-PIN Lead
30cm 5-PIN To 4-PIN Fly Lead
15m 4-PIN To 4-PIN Lead
