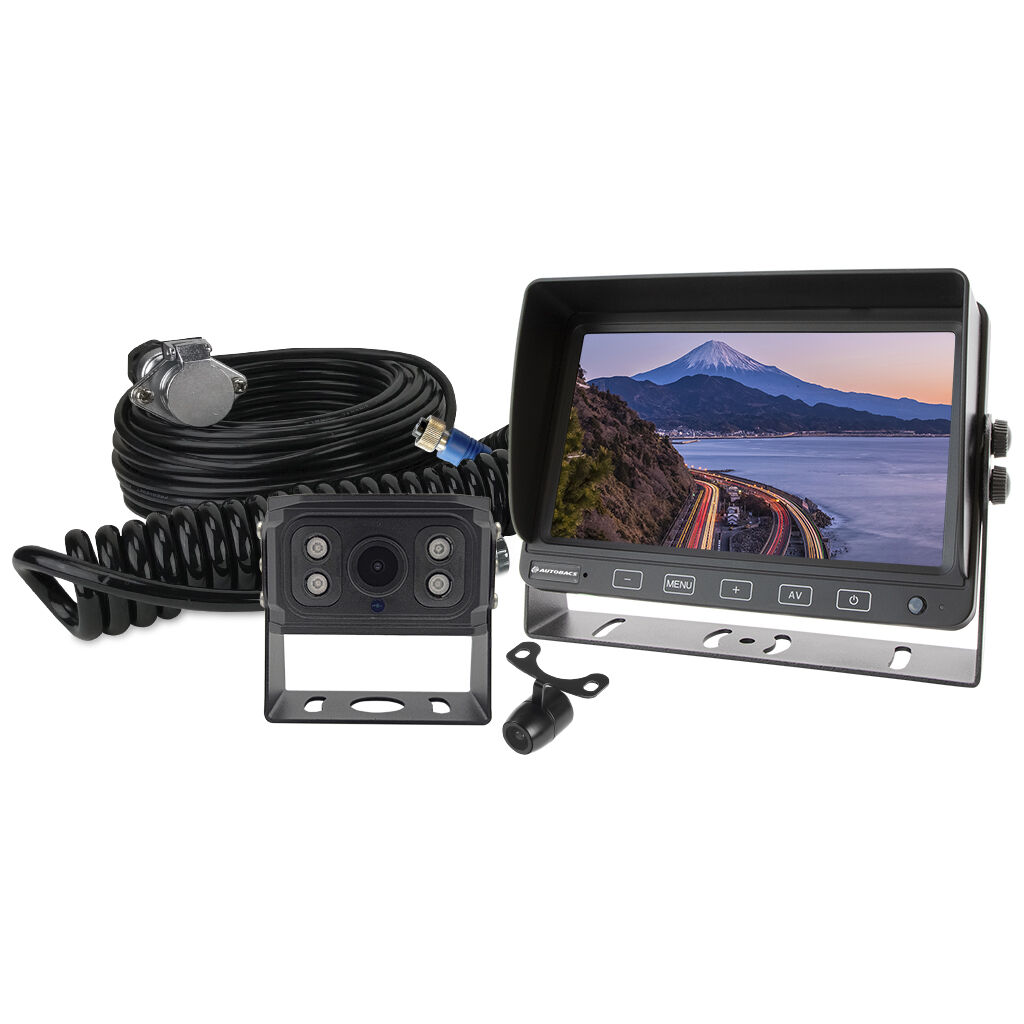

The HD7130CK is an advanced caravan camera kit that offers high-resolution rear-view capabilities. This hassle-free system includes all the necessary components to seamlessly install a dependable camera and monitor setup for your caravan or trailer. With this kit, you can confidently navigate your journey, knowing that you have a clear view of your surroundings while reversing. So, leave your worries behind and focus on the road ahead, as this kit ensures your peace of mind.

Specifications

MONITOR

• TFT Panel: New Grade A LCD
• LCD Size: 7-Inch (Diagonal)
•  Display Format: 16:9
• Resolution: 1024 x 600
• Brightness: < 500 CD/M2
• Viewing Angles: 70° Left/Right/Up/Down
• Video System: Auto PAL/NTSC Select
• Video Connect: 3 x 4-Pin (Male)
• Compatibility: Standard & High Resolution Camera’s
• Connection Type: Universal Standard 4-Pin Configuration (M)
• Buttons: Touch Sensitive
• Camera Triggers: 3
• Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
• Guidelines: Selectable On/Off (Camera 2 Input Only)
• Audio: Camera 3 Input Only
• Main Menu: Brightness/Contrast/Colour/Photosensitive (Dimmer), Language,Default Setting, Volume, RLUD, (Screen Orientation),
• VCOM (Exposure), Ruler Setting (Guidelines), AccTime, Version
• Operating Temp: -20°C to +70°C
• Power Input: 10-32V DC (Negative Ground)
• Dimensions: 176W x 122H x 28D mm (Excluding Bracket & Visor)

CAMERA 1

• 12V Heavy Duty Camera
• Image Device: 1/3” IMX225LQR-C
• Diagonal Viewing Angle: 140°
• Horizontal Viewing Angle: 120°
• Signal System: PAL
• Effective Pixels: 1280H x 720V
• Resolution: 720p
• Orientation: Mirror Image
• Night Vision: 18 Infrared LED’s
• Illumination: 0.001 Lux with IR on
• Ingress Protection: IP69K
• Integrated Microphone: Yes
• Operating Temp: -20 to 70° C
• Power Consumption: 3W, 250mA
• Dimensions: 98.3W x 67.7H x 68D mm (including Bracket)
• Connection Type: Universal Standard 4-Pin Female
• Power Supply: 12V DC

CAMERA 2

• 12/24V Dual Mount Camera
• Image Device: 1/3” CMOS
• Diagonal Viewing Angle: 165°
• Horizontal Viewing Angle: 120°
• Signal System: PAL
• Effective Pixels: 640 x 480
• Resolution: 480p
• Orientation: Selectable Mirror/Non Mirror
• Night Vision: 0.2 Lux
• Illumination: 0.001 Lux with IR on
• Ingress Protection: IP67
• Integrated Microphone: No
• Operating Temp: -20 to 70° C
• Power Consumption: 90-300mA
• Dimensions: 16.5W x 16.5H x 23D mm (Excluding Bracket)
• Connection Type: Mini 4 Pin Terminated RCA (M)
• Lead: 6m
• Power Supply: 9-32V DC

TRAILER QUICK CONNECT

• Curly Cable Length: 0.5m (Original State) 4.0m (Elongated)
• Mounting Plate: 5-Pin (Male) Metal Plug with Weather Cover
• Brackets: 2 x Metal Plug Mounting Brackets
• Cable (Monitor Side): 10m Terminated to 4-Pin (Trailer Plug to Monitor)
• Cable (Camera Side): 15m Terminated to 4-Pin (Camera to Trailer Plug)

Includes

• U-Bracket
• Glass Mount Bracket
