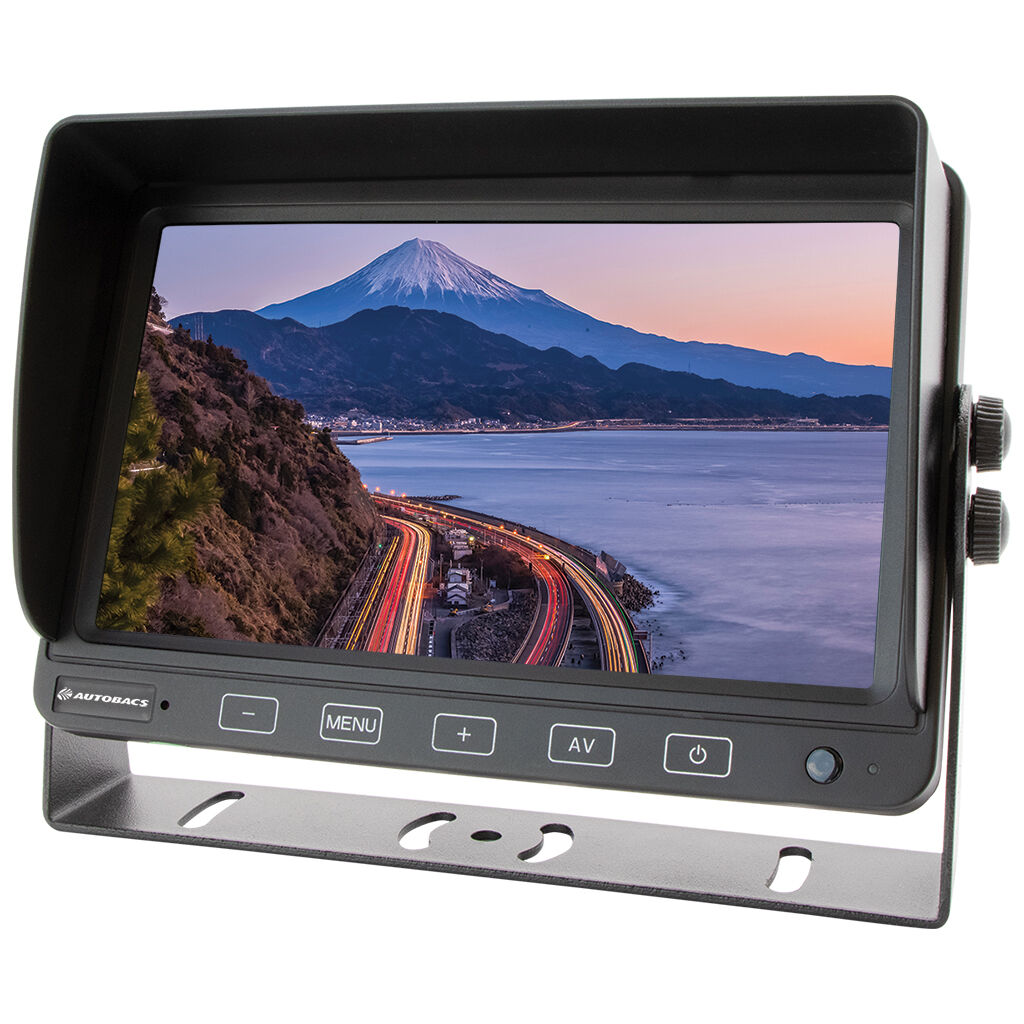

A High Resolution 12/24V monitor that offers a clear image and enhanced view when reversing. Its Heavy Duty construction makes it suitable for trucks, machinery and vehicles. The HD7130 also has the added flexibility of connecting up to 3 cameras.

Specifications

MONITOR

  • TFT Panel: New Grade A LCD
  • LCD Size: 178mm (7-Inch) Diagonal
  • Display Format: 16:9
  • Resolution: 1024 x 600
  • Brightness: < 500 CD/M2
  • Viewing Angles: 70° Left/Right/Up/Down
  • Video System: Auto PAL/NTSC Select
  • Video Connect: 3 x 4-Pin (Male)
  • Compatibility: Standard & High Resolution Camera’s
  • Buttons: Touch Sensitive
  • Connection Type: Universal Standard 4-Pin Configuration (M)
  • Camera Triggers: 3
  • Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
  • Guidelines: Selectable On/Off (Camera 2 Input Only)
  • Audio: Camera 3 Input Only
  • Main Menu: Brightness/Contrast/Colour/Photosensitive (Dimmer), Language,
  • Default Setting, Volume, (Screen Orientation),
  • VCOM (Exposure), Ruler Setting (Guidelines), AccTime, Version
  • Operating Temp: -20°C to +70°C
  • Power Input: 10-32V DC (Negative Ground)
  • Dimensions: 176W x 122H x 28D mm (Excluding bracket & Visor)

Includes

  • U-Bracket
  • Sunshade

(HD7130)

SKU HD7130
Model # HD7130
Barcode # 9321886015386
Brand AUTOBACS
