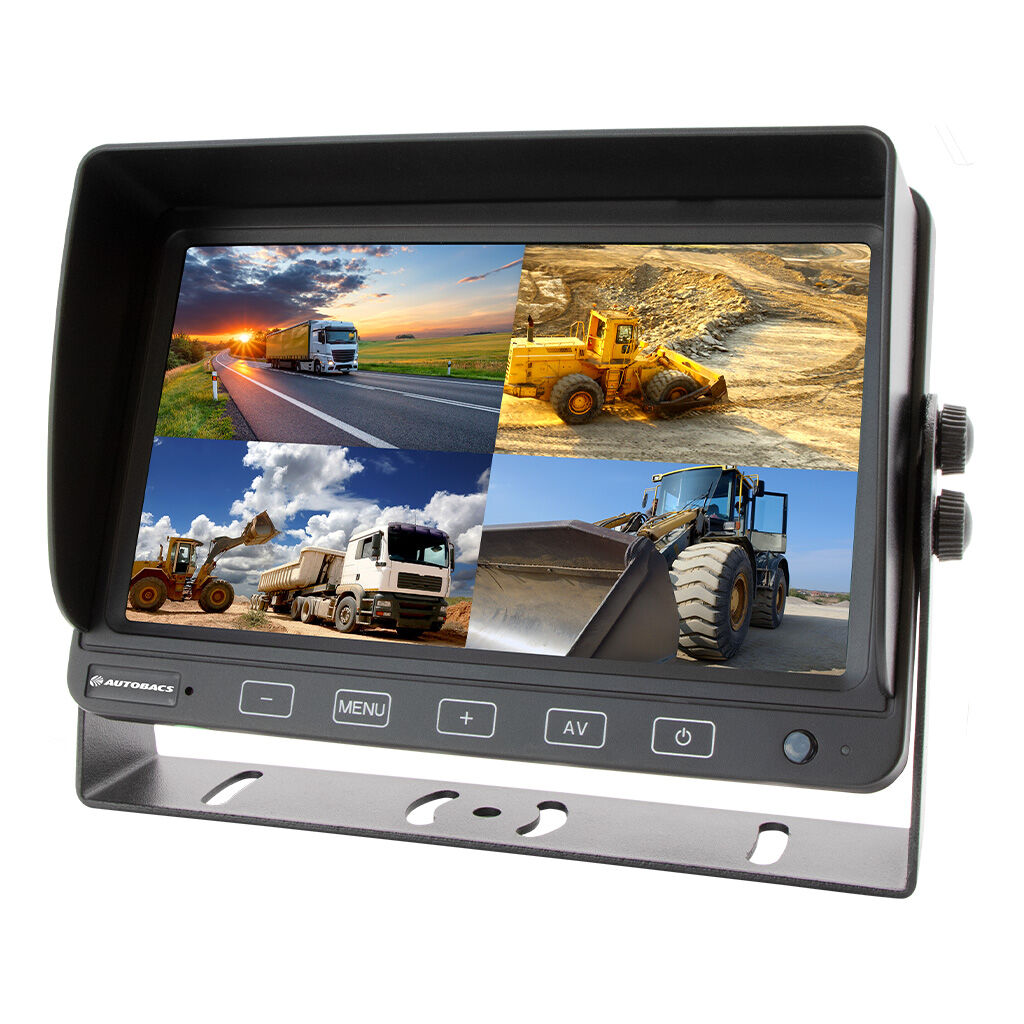

The HD7140 high resolution quad view monitor by Autobacs Japan. is a high resolution 12/24V monitor that offers a clear image and enhanced view when reversing. Its Heavy Duty construction makes it suitable for trucks, machinery and vehicles. The HD7140 also has the added flexibility of connecting and viewing up to 4 cameras.

Specifications

  • LCD Panel: IPS Screen
  • LCD Size: 178mm (7-inch) Diagonal
  • Display Format: 16:9
  • Split Screen: Single/Dual/Triplex/Trefoil/Y-Split/H-Split/Quad
  • Resolution: 1024 x 600
  • Brightness: <500 CD/M2
  • Viewing Angles: 75° Left / Right / Up / Down
  • Video System: Auto PAL/NTSC/AHD
  • Video Connections: 4x4-Pin (Male)
  • Compatibility: Suits all standard definition cameras, AHD 1080P and AHD 720P
  • Connection Type: Universal Standard 4-Pin Configuration (M)
  • Buttons: Touch Sensitive
  • Camera Triggers: 4
  • Monitor View: Normal/Mirror mage Selectable
  • Guidelines: Selectable On/Off
  • Audio: On board speaker (Camera 2 Only)
  • Operating Temperature: -20°C to +70

Includes:

  • Wiring Harness
  • Sunshade
  • U-Bracket

(HD7140)

SKU HD7140
Model # HD7140
Barcode # 9321886015430
Brand AUTOBACS
