Features

Distribute composite video and stereo audio plus IR signals using economical CAT5 cable. The PRO1235D is a readyto go kit including a receiver. The system can be expanded up to 4 zones with additional PRO1235DS spare receivers, also available separately.



Specifications:

  • Designed to be surface mounted for in-wall composite video, and stereo audio with IR control applications
  • Transmission distance:
    • Audio :300 meters
    • Video : 300 meters

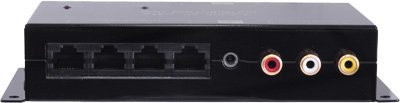

  • Interface:
    • 3.5mm mini socket (for emitters)
    • 3x RCA connectors (for audio/video)
    • 4x RJ45 (for CAT5)
    • Dimension: 157 mm x 65mm x 29mm
    • Power supply: 12VDC, 200mA
    • Loop-out function

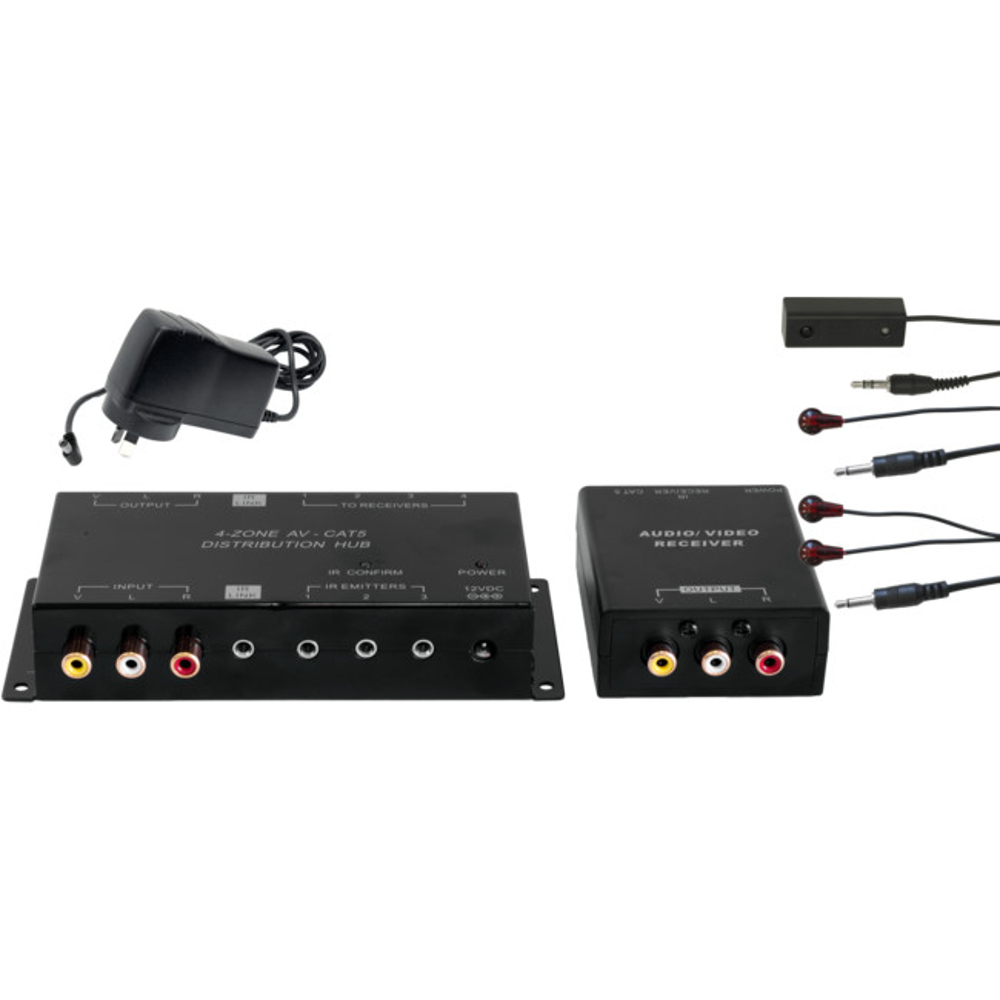

    • Kit includes:

    • PRO1235 AV + IR distribution hub
    • PRO1235DS Spare AV + IR receiver
    • Single IR emitter
    • Dual IR emitter
    • IR receiver stick
    • 12V 1.2A switchmode power supply

(PRO1235D)

12 Months

SKU PRO1235D
Model # A1235D
Barcode # 9328202007360
Brand PRO2
Unit Of Measure each
Assembled Width 0.721m
