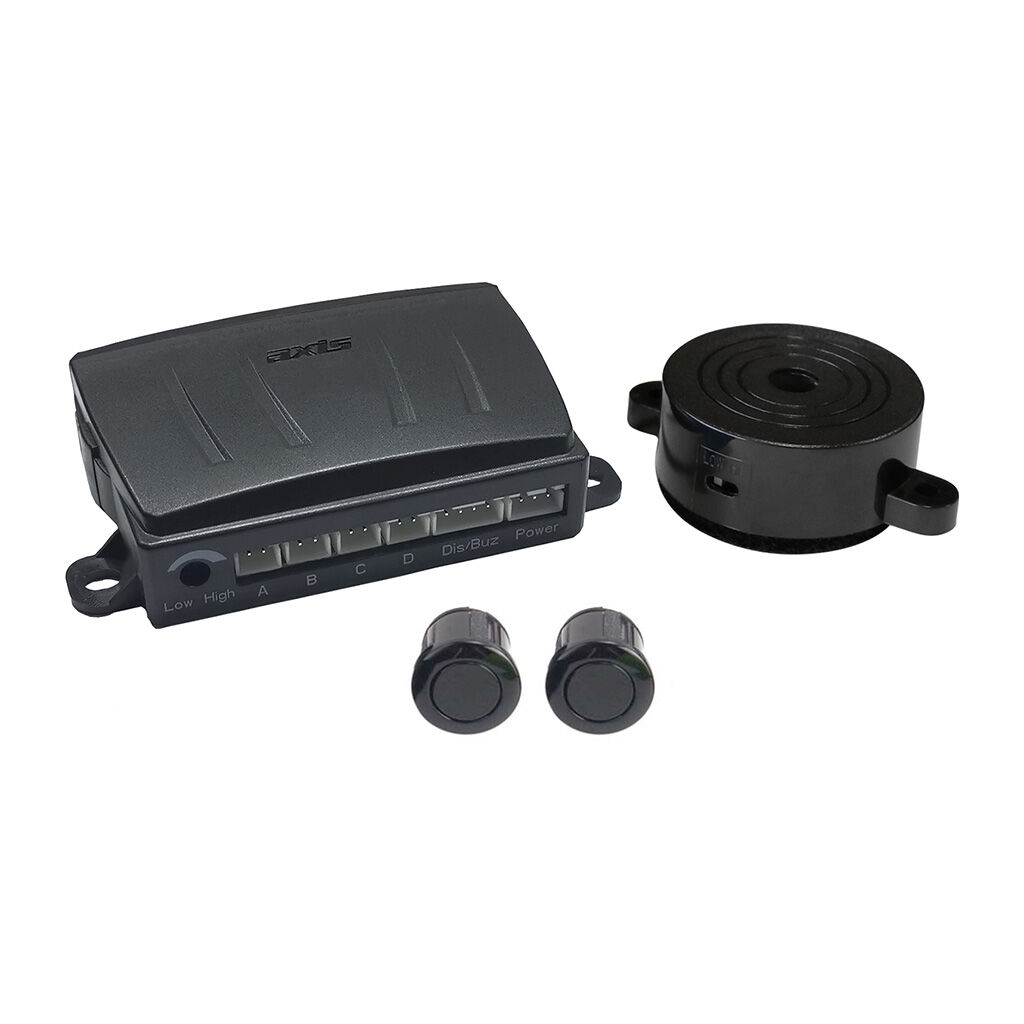

The APS201B is a user-friendly parking sensor system that is specifically designed for passenger vehicles.It is perfect for installing on both the front and rear bumpers,and it includes an audible alert to help with distance guidance.With its wide 9-32V DC input range,the APS201B is suitable for use in a variety of vehicles.

Spicaeciftions

GENERAL:

  • Rated Voltage:12/24V DC
  • Operating Range:9-32V DC
  • Operating Current:20-150mA @12V

BUZZER:

  • Proximity Alert:Audible Tone
  • Audible Buzzer:70-90dB @ 10cm
  • Cable Length:8m (Buzzer)

CONTROL BOX:

Adjustments:

  • DIP Switch 1:Front or Rear Use
  • DIP Switch 2:Rear Range Select / Tow Bar Adjustments
  • Front Setting:Speed Setting Adjustment
  • Front Setting:Auto On/Off with Brake
  • Power Leads:4.5m
  • Dimensions:100 x 54 x 24mm

SENSORS:

  • Sensor Type:Paintable ABS
  • Sensor Size:18mm
  • Sensor Hole Cut-out:18.3mm
  • Sensor Cable Length:3.5m
  • Sensor Installation:In-Bumper Mount
  • Front:400-500mm High
  • Rear:500-600mm High
  • Detecting Distance
  • Front setting:0.3-0.9m
  • Rear setting: 0.3-2.5m
  • Working Temperature:-30° to +85°C
  • Water Resistance:IP68
  • Sensor Dimensions:21W x 21H x 19.5Dmm .





(APS201B)

SKU APS201B
Model # APS201B
Barcode # 9321886016376
Brand AXIS
