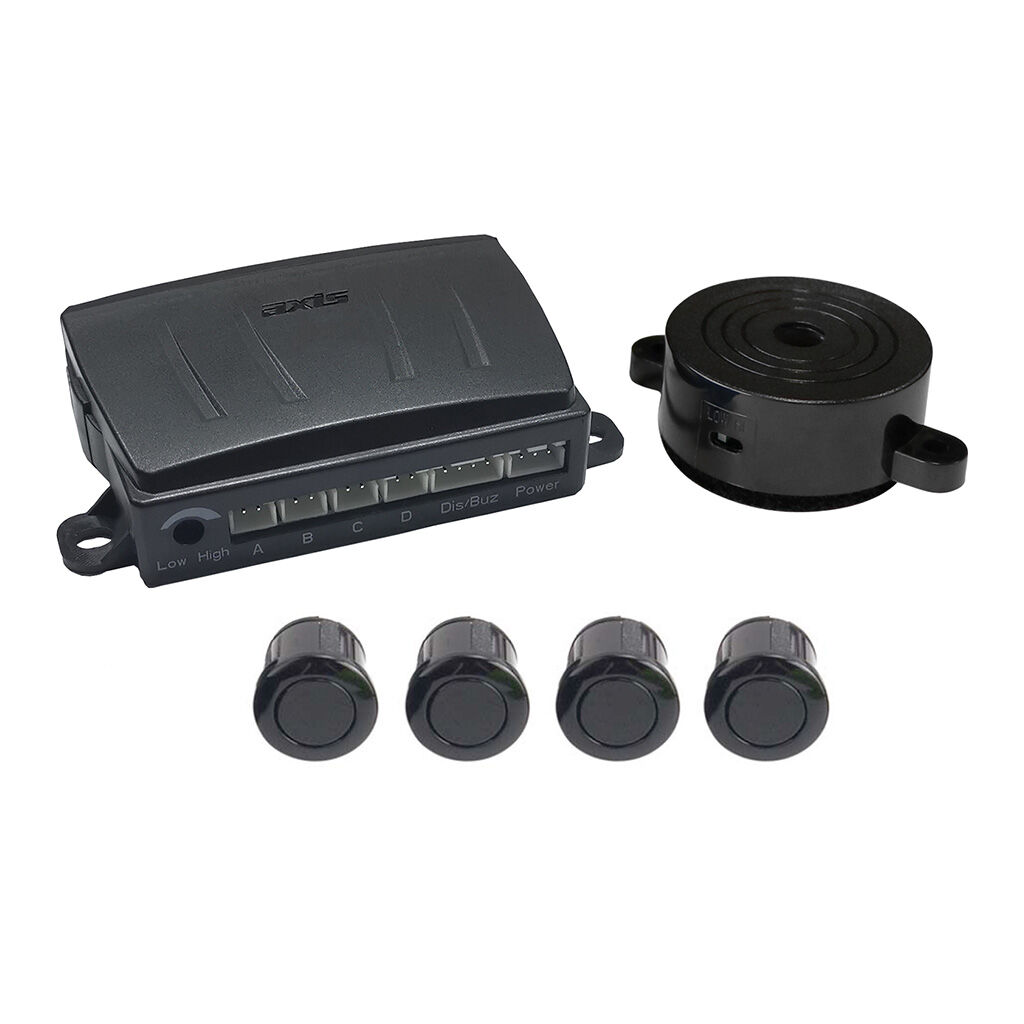

The APS401B parking sensor system is designed for passenger vehicles,making it incredibly user-friendly.It can be easily installed on both the front and rear bumpers, providing convenience and flexibility.With its audible alert,it helps drivers with distance guidance,ensuring a hassle-free parking experience.Moreover the APS401B is compatible with a wide range of vehicles,thanks to its 9-32V DC input capability.

Specifications

GENERAL:

  • Rated Voltage:12/24V DC

  • Operating Range:9-32V DC

  • Operating Current:20-150mA @12V

BUZZER

  • Proximity Alert:Audible Tone
  • Audible Buzzer:70 -110dB @10cm(Selectable Level)
  • Cable Length:8m(LED display)

CONTROL BOX

Adjustments:

  • DIP Switch 1:Front or Rear Use
  • DIP Switch 2:Rear Range Select / Tow Bar Adjustments
  • Front Setting:Speed Setting Adjustment
  • Front Setting:Auto On/Off with Brake
  • Power Leads:4.5m
  • Dimensions:100 x 54 x 24mm

SENSORS

  • Sensor Type:Paintable ABS
  • Sensor Size:18mm
  • Sensor Hole Cut-out:18.3mm
  • Sensor Cable Length:3.5m

Sensor Installation:

  • Under Mount or In-Bumper Mount
  • Front: 400 - 500mm High
  • Rear:500 -600mm High

Detecting Distance:

  • Front Setting:0.3 -1.5m
  • Working Temperature:-30° to +85°C
  • Water Resistance:IP68
  • Sensor Dimensions:26W x 26H x 23.8Dmm
  • Under Mount Dimensions:61W x 31H x 22.4Dmm .

(APS401B)

SKU APS401B
Model # APS401B
Barcode # 9321886016321
Brand AXIS
