Description:

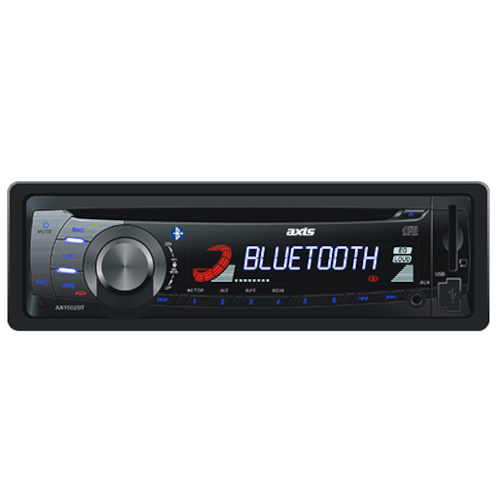

BLUETOOTH CD/MP3 MULTIMEDIA PLAYER

Specification:

GENERAL
– Detachable Face Panel
– LCD Display
– Illuminated Controls (Blue)
– ISO DIN Mounting
– ISO Wiring Harness
– Steering Wheel Control (Programmable)
– Internal Analogue SWC Module
– Dimensions: (Chassis) 178W x 50H x 158D mm (Front Panel) 188W x 58H x 20D mm
– 2 Ch RCA Line AUX-IN Input (Rear)
– 2 Ch RCA Line Output (Rear)
– 1 Ch Subwoofer Output (Rear)
– Speaker Impedance 4-8 Ohm
– 12 Volt DC (11-14.4V) 15A Fuse Negative Ground
– Max Power 45 Watts x 4 Ch

AUDIO CONTROL
– Rotary Encoder
– 4 Band EQ
– Electronic Volume/Balance/Bass/Fader/Treble
– Loud/Mute/Beep

TUNER
– PLL Synthesized AM/FM Stereo
– Xtreme Long Range Tuner
– FM 87.5~108 MHz; AM 531~1701 KHz
– Interference Absorption Circuit
– 30 Station Presets – 18 FM/12 AM Memory
– Station Seek/Preset Scan/Auto Store
– Local / Distant Control
– Automatic or Manual Tuning
– Mono/Stereo
– Digital Clock – 12/24 Hour Mode

MULTIMEDIA
– USB Input: Front Panel
– SD / MMC Card Port: Front Panel
– AUX-IN: Front Panel (3.5mm)
– AUX-IN: Rear (RCA)

CD PLAYER
– Supports CD/CD-R/CD-RW/MP3/WMA
– Electronic Shock Protection
– Intro/Repeat/Random Play/Track Up-Down
– Select Folder/Track/File Search

BLUETOOTH
– Bluetooth in Phone Mode
– External Microphone
– Bluetooth Antenna
– Call Transfer
– Audio Streaming

INCLUDED
– External Microphone
– ISO Wiring Harness
– Detachable Facia Case
– Installation Hardware
