Description:

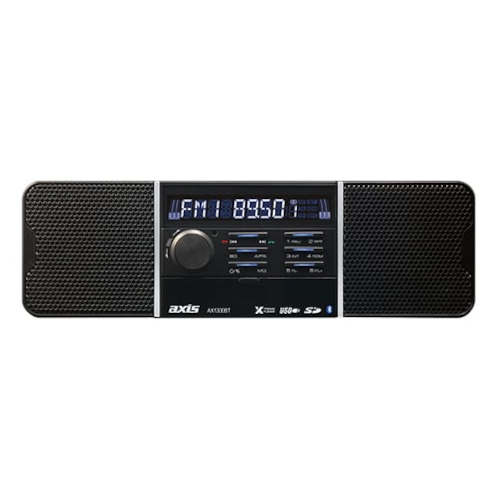

BLUETOOTH MECHLESS AM/FM MULTIMEDIA RECEIVER with BUILT-IN SPEAKERS

Specification:

GENERAL
– Mechless
– Fixed Face Panel
– Ultra Memory Power Backup
– Built-In Speakers (On/Off Control)
– Illuminated Controls (Blue)
– ISO DIN Mounting
– ISO Wiring Harness
– Compact DIN Chassis:
– Dimensions: Chassis: 178(W) 50(H) 120(D) mm Face Panel: 188(W) 58(H) 19(D) mm
– 12/24 Volt DC (10.8-32V) Negative Ground

TUNER
– PLL Synthesized AM/FM Stereo
– Xtreme Long Range Tuner
– FM 87.5~108 MHz; AM 522~1710 KHz
– Interference Absorption Circuit
– 30 Station Presets – 18FM/12AM Memory
– Station Seek / Preset Scan / Auto Store
– Automatic or Manual Tuning
– Local / Distant Control
– Mono / Stereo
– Digital Clock

MULTIMEDIA
– USB Input: Front Panel
– SD/MMC Card Port: Front Panel
– AUX IN Socket: Front Panel
– MP3/WMA Player
– Intro, Repeat, Random Play, Pause
– Track Down/Up Select (MP3/WMA Files)
– Compatible with audio output of most MP3 players

AUDIO CONTROL
– Rotary Encoder
– Electronic Volume/Balance
– Treble/Bass and Fader Controls
– 4 Band DSP Settings
– Loud/Mute
– Front Panel AUX-IN
– 2 Channel RCA Line-Out
– Speaker Impedance 4-8 Ohms
– 5 Volt Preamp Output
– 25 Watts x 4 Ch MAX

BLUETOOTH
– Bluetooth In Phone Mode
– External Microphone
– Phone Contact History
– Audio Streaming
