Overview

• Get creative, get connected & get coding with the latest BBC Micro:bit Board.
• Not only does the new V2 board sense and react sound (with the built-in microphone) but you can also play around with sound via the built-in speaker.
• All the existing features in the V1 micro:bit board are still in the V2 model.
• Micro:bit by BBC has become the heart of countless creative digital technology projects around the world and a trusted educational learning system.
• This tiny programmable platform teaches through invention. Learn to code, design animated LED games, interface with sensors, all on the one board.
• Micro:bit users have full access to the BBC micro:bit website where fresh lesson plans are shared along with tutorials and tips for everyone be you educators, parents, workshop coordinators or just an aspiring maker.
• The Micro:bit is easy to code with, all you need is your web browser and a micro USB cable and you are ready to start all kinds of exciting STEM/STEAM experiments, no need for any extra software to be installed.
• Micro:bit has also developed a mobile app for coding over Bluetooth (without a USB cable), that makes it even easier to get everyone coding with hardware.

Features

• On board speaker
• MEMs Microphone with LED indicator
• Touch sensitive logo
• Built-in sleep/off mode that means the board can be powered-down with batteries connected
• Discrete regulator that can supply up to 190mA of current to external accessories
• 25 Programmable LEDs in a 5 x 5 grid
• 3-axis motion sensing
• On-board magnetometer
• On-board temperature sensor
• On-board light level sensing
• 2 x programmable buttons, A & B
• BLE Bluetooth 5.0
• 2.4Ghz Micro:bit Radio
• Rear-mounted push button
• Power off (push and hold power button)
• 25 pins
• MEMS microphone and LED indicator
• Onboard speaker
• Touch-sensitive logo pin
• LED power indicator
• C++, MakeCode, Python, Scratch

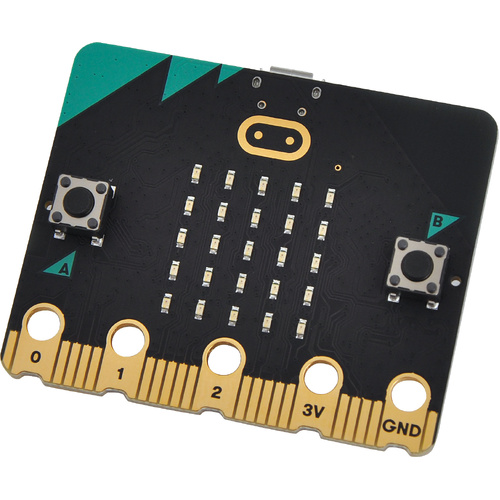

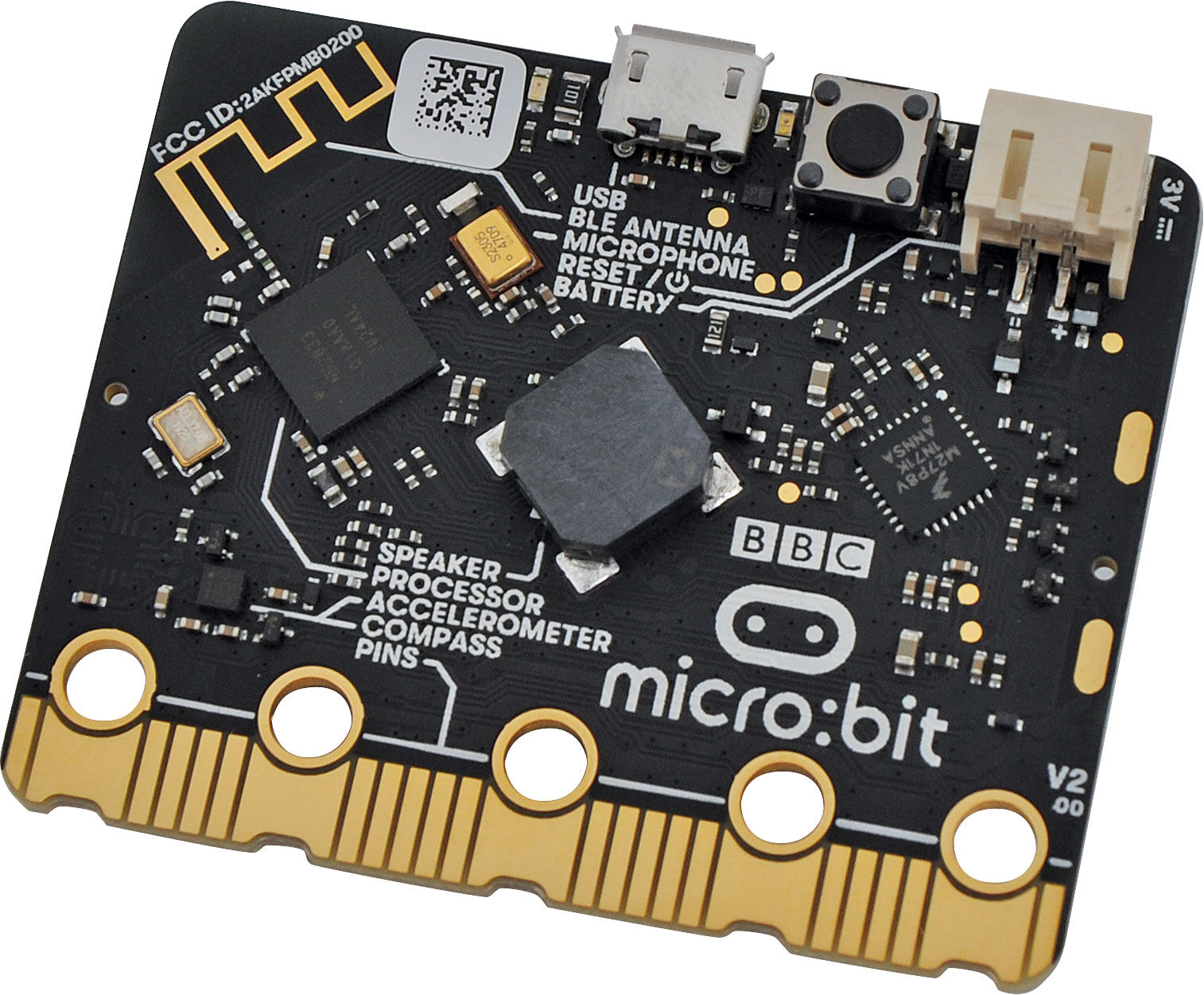

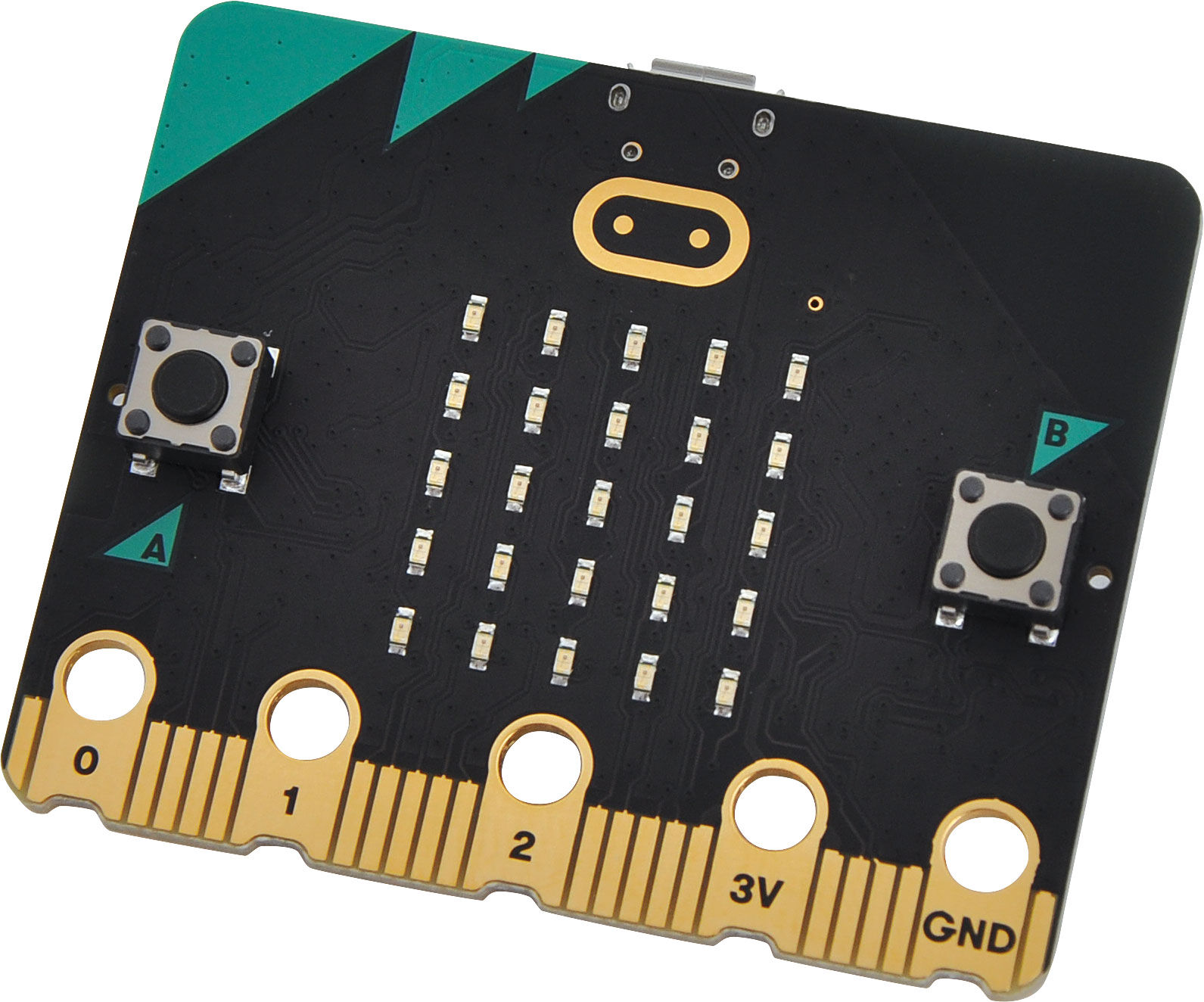

Please Note: The colour within the micro:bit pictured may not match the colour of the micro:bit you receive as the shipments contain mixed colours. A colour preference unfortunately cannot be chosen. Pictures show V2.00 board, however current stock is V2.21. This is due to a minor chipset change.

• V1 and V2 comparison
