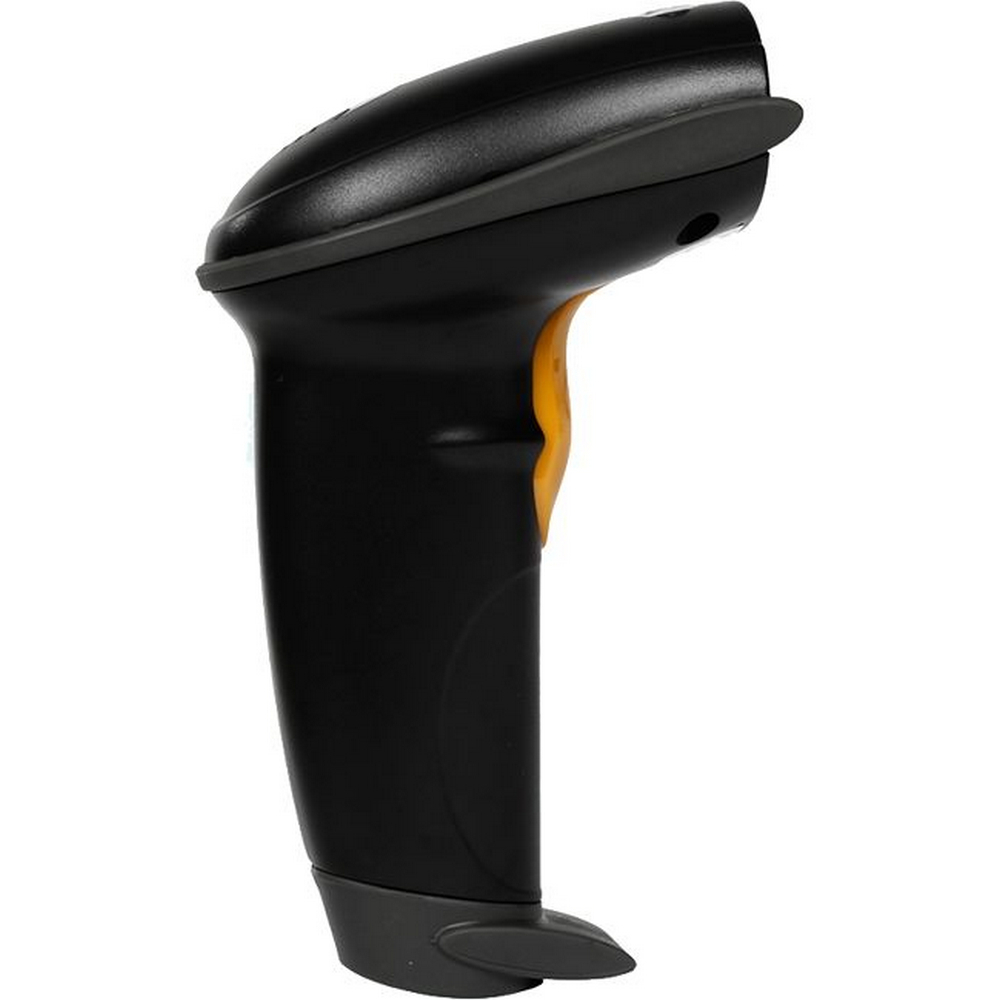

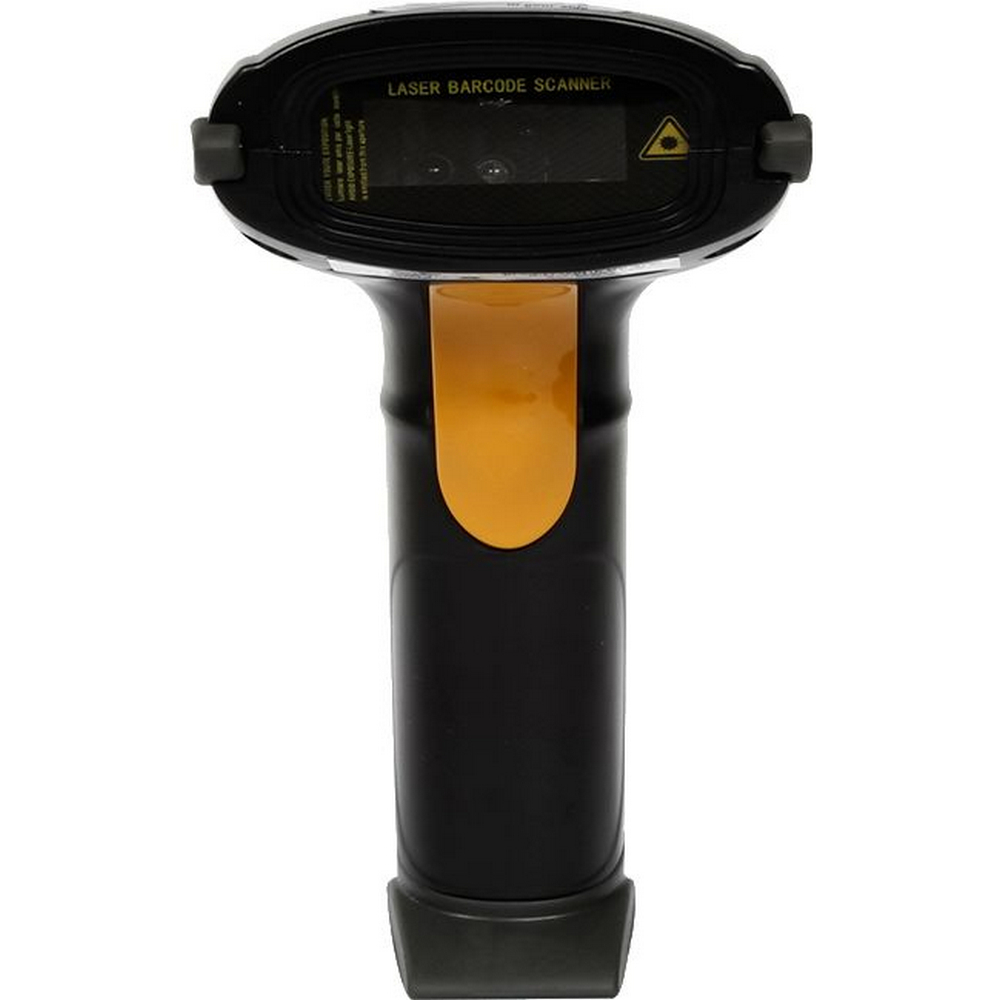

BI-DIRECTIONAL LASER BARCODE SCANNER

FEATURES

  • Handheld laser barcode scanner
  • High scan rate (100 scans/sec) and long reading distance;
  • Excellent decode capability;
  • KBW and USB supported;
  • Durable construction combined with future-proofing;
  • Auto-scan featureworks when the scanner while it is on the stand

SPECIFICATIONS
Light Source:
Visible laser (650-670nm)
Scan Rate:
100 scans per second
Reading Distance
2.5 ~600mm (100% UPC/EAN)
Scanner Type:
Bi-directional
Resolution:
0.10mm (4mil) at PCS 0.9
Print Contrast Minimum:
30%, minimum reflective difference (@650nm)
Error Rate:
1/3000000
Decode Capability:
UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII,code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5…

Physical Characteristics
Interfaces Supported:
PS2, RS232, USB
Voltage:
DC+5V+/-5%
Current:
100 mA
Idle Current:
<40 mA
Power Source:
Host power or external (RS232) power supply
Scanning Angle
Inclination 45° Elevation 60°
Dimensions:
L165mm X W63mm X H87mm
Weight:
129g (without stand)

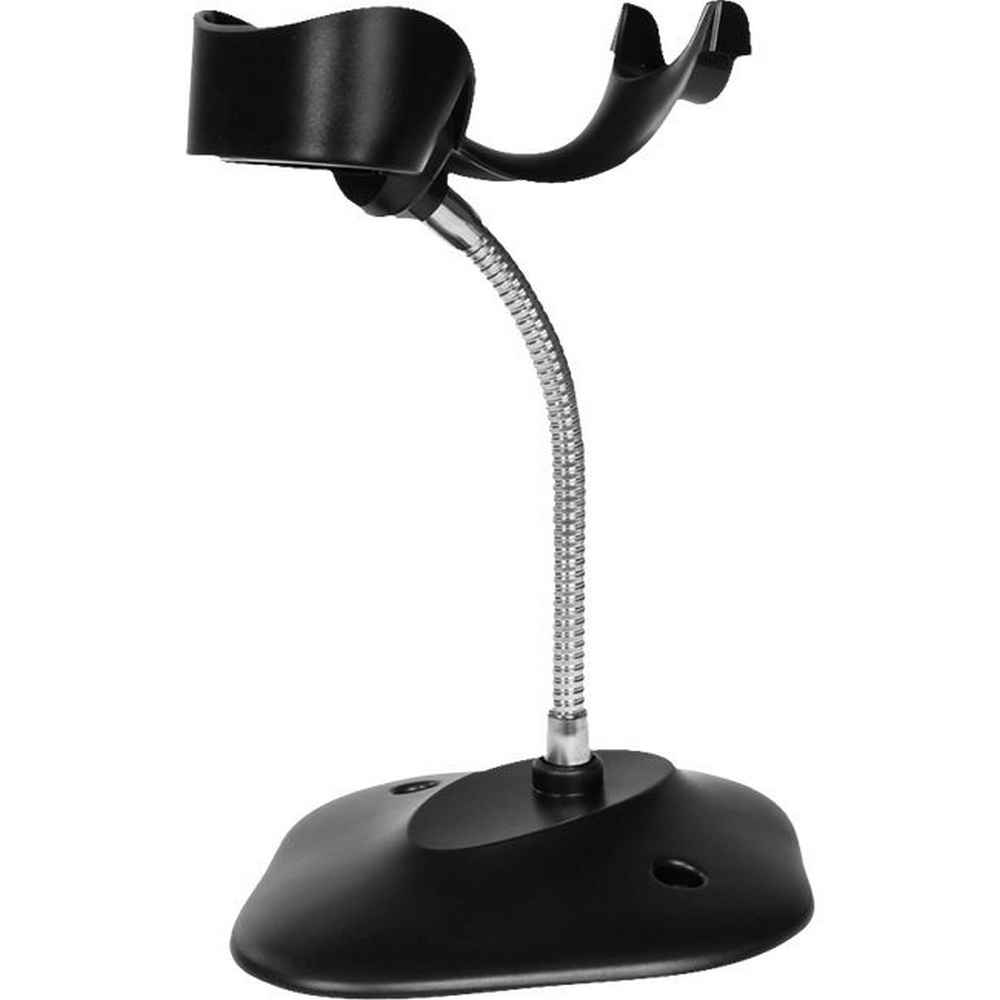

Stand
Optional
Color:
Grey and black
User Environment
Operating Temperature:
0°C~40°C
Storage Temperature:
-40°C~ 60°C
Humidity:
5~95% relative humidity, non-condensing
Electrostatic Discharge:
Confirm to +/-15KVair discharge and +/-8KV of contact discharge
Drop Specifications:
Withstands multiple 1.5m drops to concrete
Safe:
EMI/RFI:
FCC Class A and CE
Laser Safety:
CDRH class 2 laserproduct

(LA11)

12 Months
SKU LA11
Model # OCBS-LA11
Brand OCOM
Unit Of Measure Each
Assembled Width 0.474m
