BUILT BOARDS Small Recessed AV Wall Box In-Wall Cable Management for TVs Black

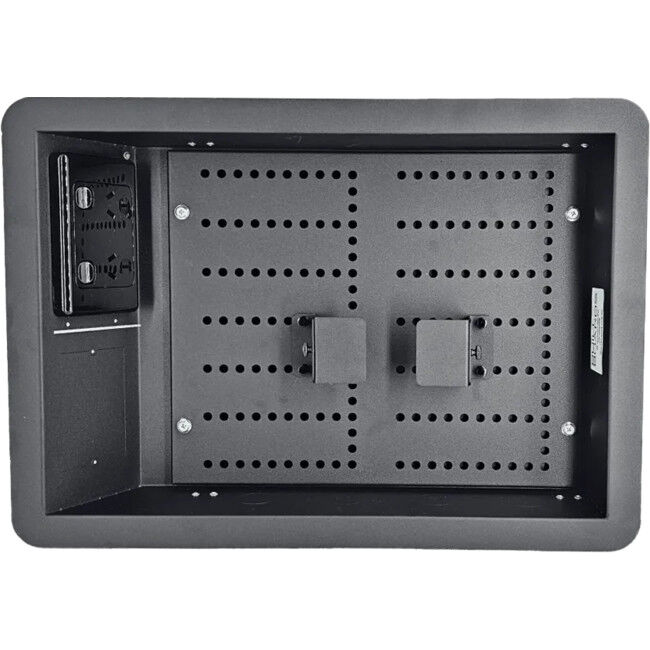

The AV Wall Box is designed to be recessed into the wall cavity behind a TV.

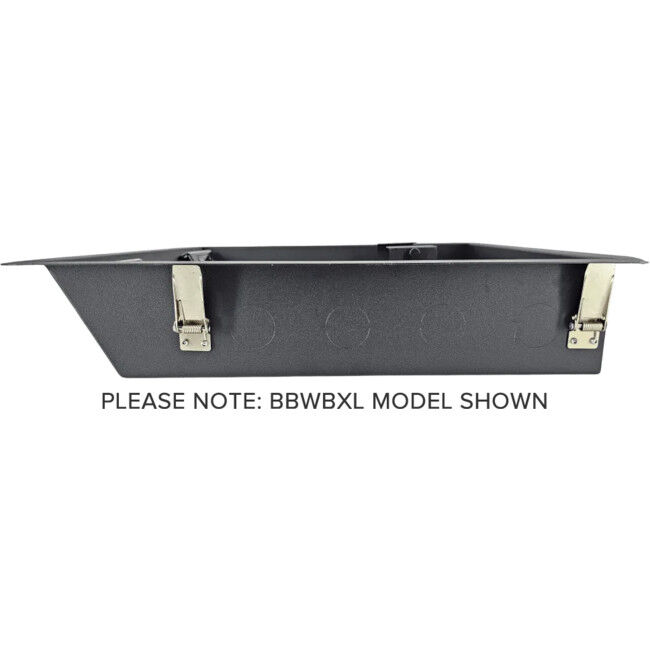

The wall is cut to size between studs and the unit is inserted and held in place with 4 spring clips

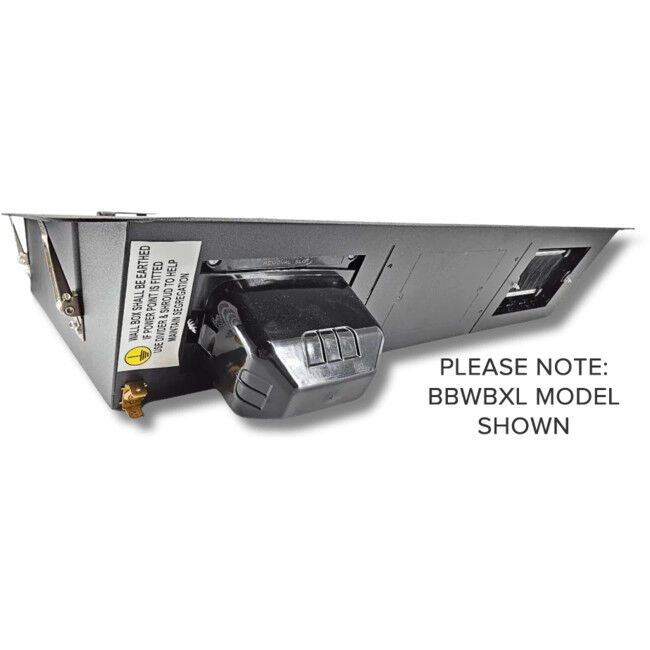

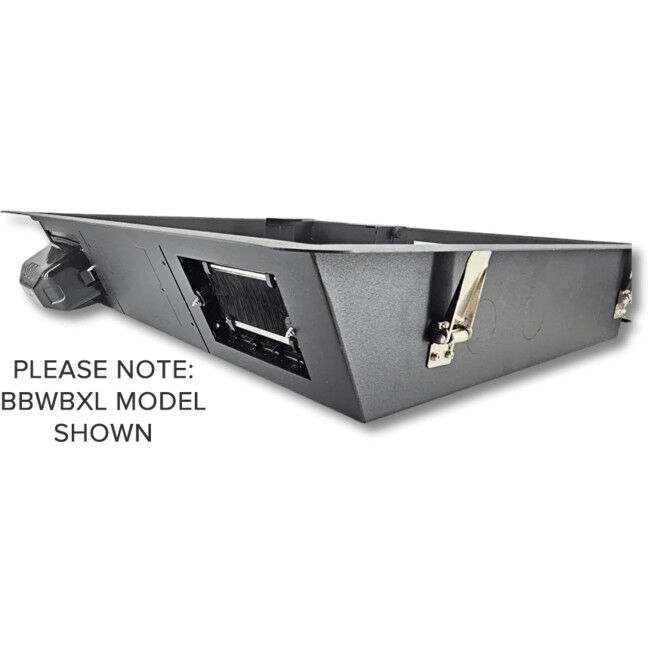

Complete with a Black double powerpoint, brush plate, hardware mounting brackets and snap bushes
Constructed of steel and finished in black texture powder coat to fall into the shadows
Available in two standard sizes – the XL large enough to house the Samsung One Connect Box

Technical	Part Number BBWBSM	Part Number BBWBXL
External Size	450MM W X 320MM H X 85MM D	450MM W X 450MM H X 85MM D
Cut-Out Size	410 MM W X 290MM H	410MM W X 420MM H
Mounting Area Size	330MM W X 260WW H X 75MM D	330MM W X 390MM H 75MM D
Latches	4 X SPRING CLIPS	4 X SPRING CLIPS
Colour	BLACK TEXTURE POWDER COAT	BLACK TEXTURE POWDER COAT
Supplied Components	1 X Double Powerpoint Black 1 X Brush Plate Black 1 X Hardware mounting brackets	1 X Double Powerpoint Black 1 X Brush Plate Black 2 X Hardware mounting brackets
Weight	3Kg	4Kg
Material	1mm Mild Steel	1mm Mild Steel
