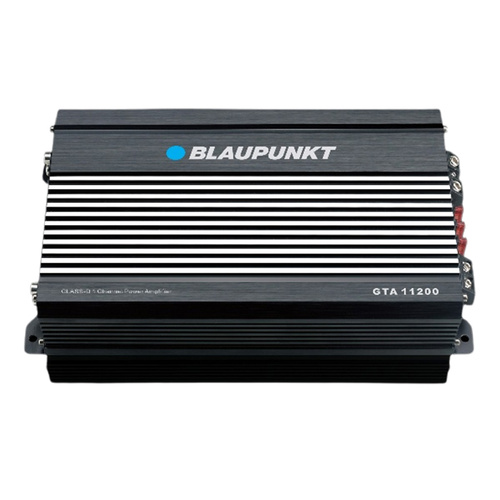

The GTA11200 Blaupunkt Mono Class D Amplifier is a high-performance mono block amplifier designed to deliver powerful, efficient bass output for car audio systems. With up to 1200W RMS at 1 ohm and advanced tuning features like adjustable low-pass crossover, bass boost, and high/low input controls, it provides clean, controlled sound with excellent efficiency and low distortion.

Specifications

  • Amplifier Class: Class D
  • No of Channel: Mono Block (1)
  • No of PCB Layer: 2
  • Max Total Power: 1800W x 1
  • RMS Power (4 ohms): 500W x 1
  • RMS Power (2 ohms): 800W x 1
  • RMS Power (1 ohms): 1200W x 1
  • RMS Power (2ohms linkable/dual mono): 2400W x1
  • Signal-To-Noise Ratio: =>98dB
  • Voltage Supply: 11- 16V DC
  • Idling Current: 0.8A
  • Bass Boost Frequency: 30Hz-80Hz
  • Bass Boost Level: 0dB - 12dB
  • Crossover Type: Variable
  • Crossover Frequency (Low Pass Filter): 40Hz - 220Hz
  • Crossover Slope: -12dB/oct
  • Hi-Volt Input Level Control: 3V
  • Lo-Volt Input Level Control: 100mV - 6V
  • Total Harmonic Distortion: <= 0.05% (100Hz)
  • RCA Input: 2 Channel
  • Speaker Input: Yes
  • Fuse: 40A x 3
  • Power/Ground Terminal: Screw-Type
  • Speaker Terminal: Screw-Type
  • Net Weight: 3.2kg
  • Dimension (W x H x D): 260 x 165 x 58.5mm

(GTA11200)

SKU GTA11200
Model # GTA11200
Barcode # 121170060801
Brand BLAUPUNKT
