4 WAY OPTICAL SWITCH WITH DAC AND ANALOGUE OUTPUTS

12 month warranty

Features

• Features 4x optical SPDIF digital inputs which can be switched to single optical output
• DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left/right stereo audiooutput
• Built-in digital audio converter converts selected optical audio input to coaxial digital output
• Outputs optical digital, coaxial digital and analogue left/right stereo audio concurrently
• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
• Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher
• Ultra low jitter and high fidelity design

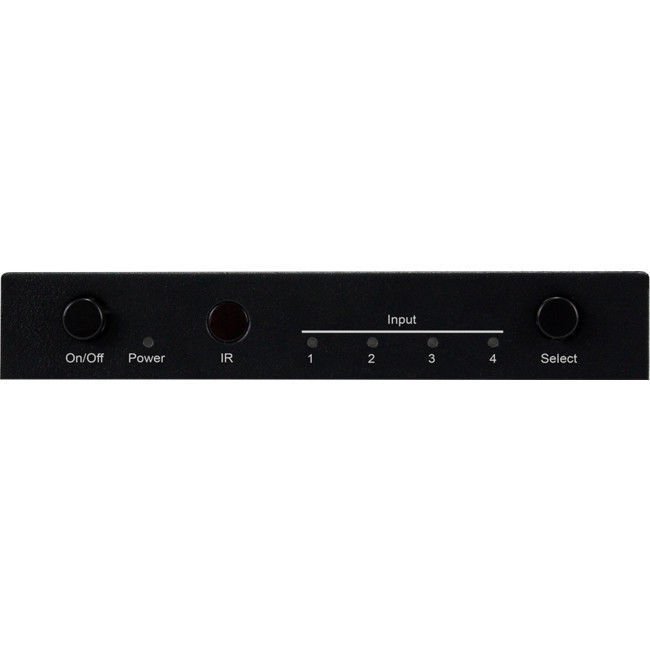

• Input selection button on front panel to toggle between optical inputs
• IR receiver on front panel to switch inputs and turn On / Off audio outputs using supplied IR remote
• External IR input can be used to extend IR with Blustream IR receiver cable

Specifications

• Audio Input Connectors: 4x Optical (SPDIF)

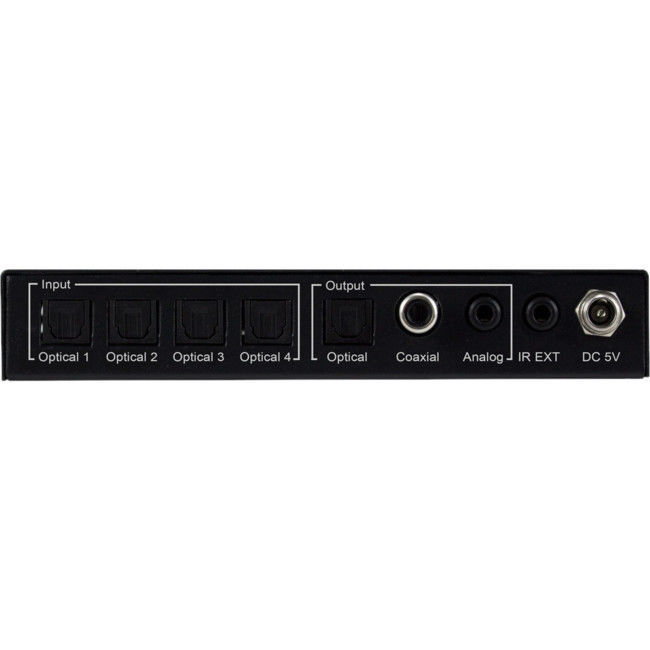

• Output Connectors: 1x Optical (SPDIF), 1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
• IR Input Ports: 1x 3.5mm stereo Jack
• Casing Dimensions (WxDxH): 137x24x68mm
• Dimensions including connections (WxDxH): 137x24x79mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, screw type connector
• Mounting kit included

​

Contents

• 1 x OPT41AU
• 1 x Remote control
• 1 x 5V/1A DC power supply
• 1 x Mounting kit
• 1 x User manual
