Overview

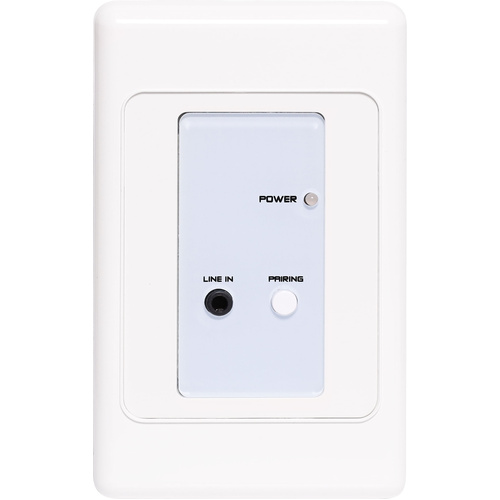

This wallplate is a Bluetooth audio receiving panel, with a 3.5mm TRS line level input with Dante interface. When paired with a compatible Bluetooth-enabled device, the panel receives stereo audio from the Bluetooth source, and converts to the two Dante audio channels via a standard CATx cable with an RJ-45 connector. Power is provided by using PoE (Power over Ethernet), or DC24V power supply, and features high-quality circuits to provide studio-grade performance without worrying about ground loops or other common audio problems. High performance, simplicity of operation, and ef?ciency of installation makes this wallplate ideal to use for installed sound systems, teleconferencing, etc.

Features

• Dante Interface 2 input channels.
• Converts 2 channels of Bluetooth (Priority) or 3.5mm TRS audio signal to Dante network.
• Easy Bluetooth connection by a single button.

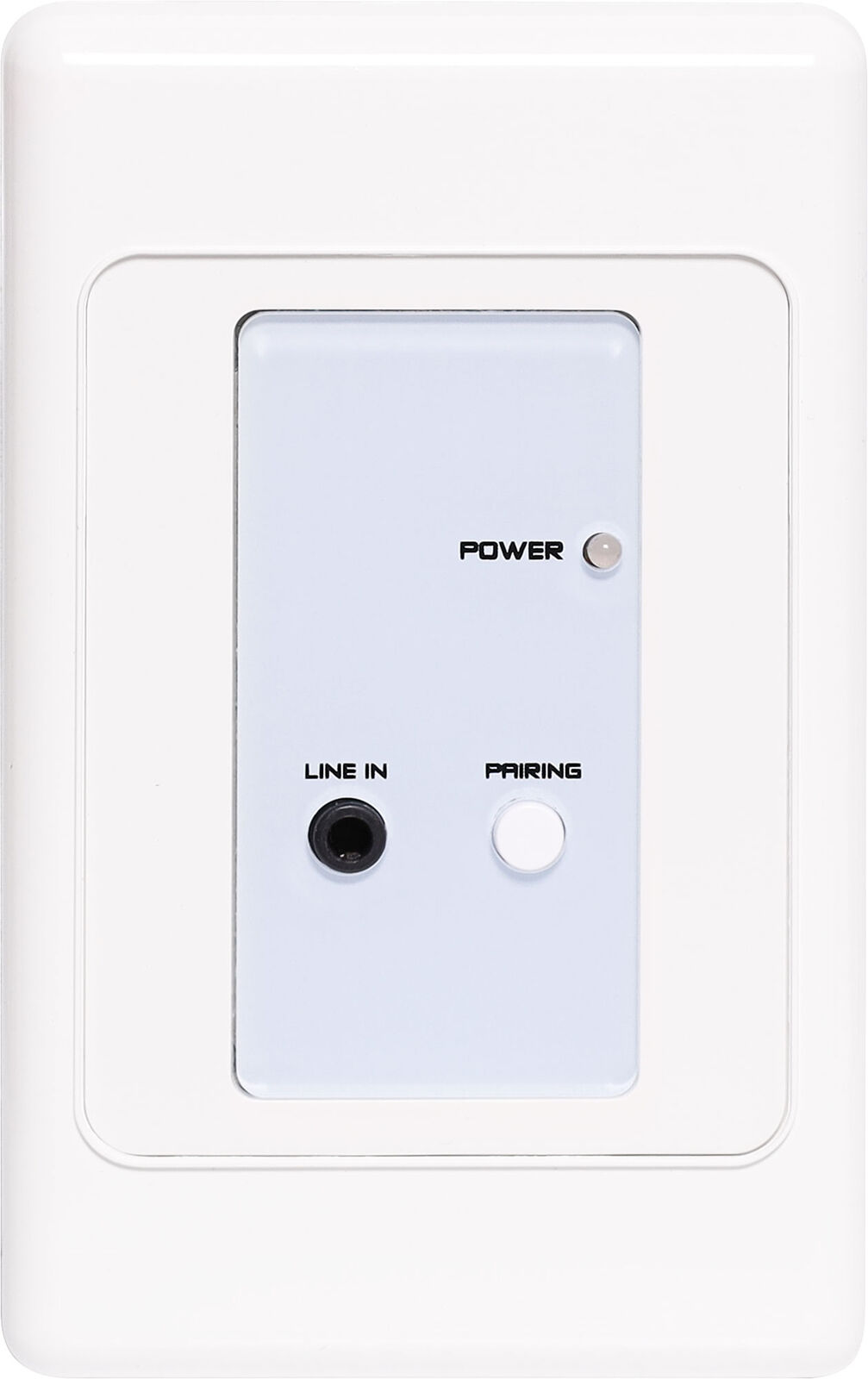

• Status LEDs indication on the front panel.
• Good compatibility with most smartphones, tablets or other Bluetooth devices.
• Configurable Bluetooth name and PIN code allows for simple discovery of the unit
• Power supply via PoE network switch or DC24V input.
• Simply audio configuration and routing by using Dante Controller.

 Specifications

• Input: BT stereo L (CH1) / R (CH2), 3.5mm TRS L (CH1) / R (CH2)
• Input impedance: >15K Ohm (3.5mm TRS)
• Maximum Input Level: +7dBu
• S/N: >96dB A-weight
• THD+N: <0.05% @ 1KHz
• Frequency response: 20Hz - 20KHz
• Bluetooth: 5.1 / SBC / AAC
• BT sampling rate: 24 Bit / 48KHz
• Dante AES67 Interface: 2 in
• Network connection: RJ45 x 1
• Power supply: 802.3af PoE or DC 24V 750mA input
• Dimensions: 114H x 70W x 50Dmm
