WIRELESS BT STEREO RECEIVER APTX NFC

Wireless BT 3.0 Stereo EDR A2DP Receiver With NFC

NFC - aptX - A2DP - CSR - BT V3.0+EDR

NFC offers an extremely simple setup. Android Beam software uses NFC to complete the steps of enabling, pairing and establishing a wireless connection. Simply tap your NFC enabled device on this unit and you are paired.

Simply pair your wireless BT device, such as your smart phone, iPad, Android tablet and connect to your AV receiver, multimedia speakers and more with this wireless BT receiver. With the inclusion of the highly renowned apt-X codec, this receiver allows you to enjoy wireless BT audio quality indistinguishable from wired, with an impressive dynamic range. Featuring a high-quality DAC that helps clean up poor audio that is often found in downloaded music and videos. Also SBC compatible for other wireless devices using the A2DP standard. The receiver outputs audio through both analogue and digital outputs simultaneously! Not only does this make it great for hooking up to your high-end amplifier or receiver using the high quality digital link, but you can also plug in another pair of powered speakers at the same time! This allows you to listen through either system without the need to connect to another wireless BT device! A Signal-to-Noise Ratio (SNR) of more than 100dB, in combination with 2Vrms output at maximum volume means the receiver can not only compensate for low volume sources, but gives you a wider range of control from your mobile device without losing audio quality or increased background hiss you get from other devices on the market! Basically keep the volume on your amp or speakers low for reduced noise, and control the audio level directly from your phone or tablet. Android Beam software uses NFC to complete the steps of enabling, pairing and establishing a wireless connection. Simply tap your NFC enabled device on this unit and you are paired. 3.5mm Stereo audio output to headphones or AUX input on any amplifier. Toslink Optical digital output to an home theatre system for full 16 Bit 48KHz transmission. BT V3.0+ EDR A2DP Apt-X & SBC Codec support

Features

• NFC Quick Link Support for Auto-Pairing
• Supports pairing with up to 8 devices
• Wireless BT V3.0+EDR A2DP
• Apt-X Lossless and SBC Codec Support
• 48KHz 16 Bit stereo. 20-20KHz 100dB

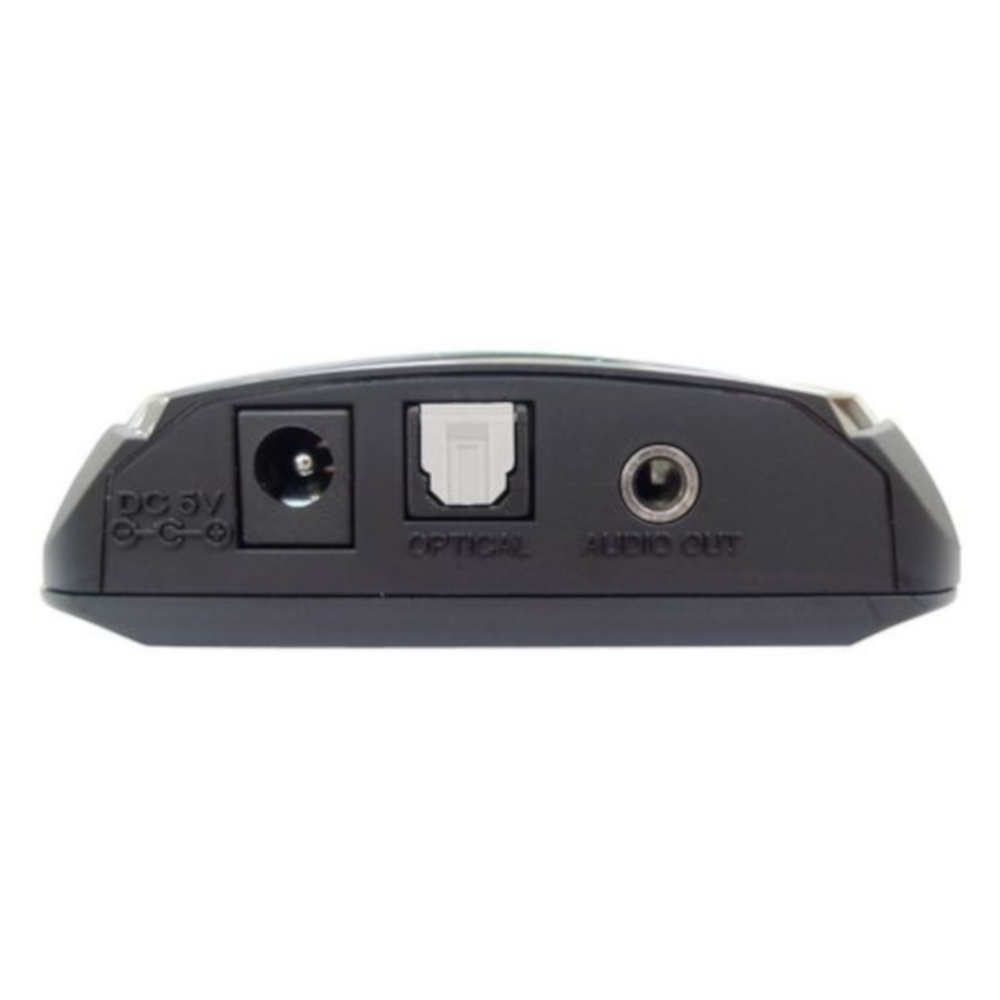

• Dual simultaneous outputs:
• Toslink Optical Output
• 3.5mm Analogue Output
• 5Vdc power pack supplied
• Status/connected LED Indicator
• Compact 75x70x22mm

Input Specification

• DC Power 5V/0.6A,5.5X2.5mm,center positive
• Output Audio R/L 3.5mm
• TOSLINK
• Control Auto Pairing
• Wireless BT Profile A2DP
• aptX® codec Supported
• SBC codec Supported
• Devices memorized 8
• Electric Performance – RF
• Frequency 2402~2480MHz
• Sensitivity -84dBm
• Maximum received signal at 0.1% BER >= -10dBm
• Maximum level of intermodulation interference >= -30dBm
• Spurious output level -156dBm/Hz
• Electrical Performance—audio R/L
• Audio Output Level (nominal) 2 ± 10%Vrms
• Frequency response 20~20 KHz ± 3 dB
• Channel Separation Audio R/L - 70 dB
• SNR (nominal, Audio RL) >=90dB
• THD(nominal, Audio RL) <0.05%
• Audio cable 3.5mm male to 3.5mm male 1.8M
• 3.5mm female to RCA male 15cm
• Adaptor 5V 0.6A
