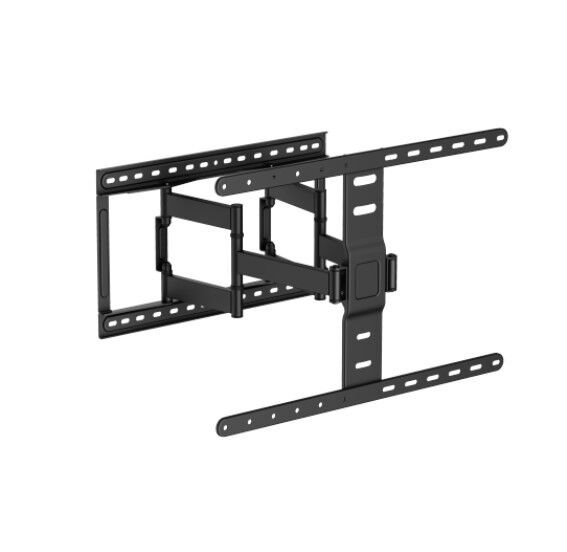

Brateck LPA83-466 MODERN ULTRA-SLIM FULL-MOTION TV WALL MOUNT For most 43"-90" TVs

FEATURES:

• Ultra-slim design
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Folding Design: saves space (keeping the screen and arm out of the way when not in use)
• Cable Management: keeps everything organized
• Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
• Leveling adjustments: allow TV to be perfectly positioned after hanging
• Easy Assembly: Installation is as easy as 1-2-3

SPECIFICATIONS:

• Product Category: Full-motion TV Wall Mount
• Rank: Standard
• Material: Steel
• Metal Sheet Thickness:
• Bracket Arm THK=3.0mm pickling sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.12" pickling sheet,VESA Panel THK=0.098" pickling sheet,Wall Plate THK=0.098" pickling sheet)
• Pipe Size: 40x15x1.2mm Square Steel Tube (1.6"x0.59"x0.047" Square Steel Tube)
• Surface Finish: Powder Coating
• Color: Fine Texture Black
• Dimensions: 420x509x632mm (16.5"x20"x24.9")
• Fit Screen Size: 43"-90"
• Fit Curved TV: Yes
• Mounting Hole Pattern: VESA & Universal
• VESA Compatible: 100x200, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400
• Max. Mounting Hole: 602x400
• Weight Capacity: 60kg (132lbs)
• Strength Tested: 4 Times Approved
• Profile: 27~420mm (1.1"~16.5")
• Tilt Range: +3°~-12°
• Swivel Range: +60°~-60°
• Screen Level: +3°~-3°
• Screen Freely Tilting: Yes
• Installation: Solid Wall,Double Stud(406mm/450mm)
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• AV Component Shelf: No
• Direction Indicator: Yes
• Cable Management: Yes
• Anti-theft: No
• Bubble Level: Hook-on Bubble Level(Included in Components Package)
• Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
• Silk Screen: Can be silkscreen printed
