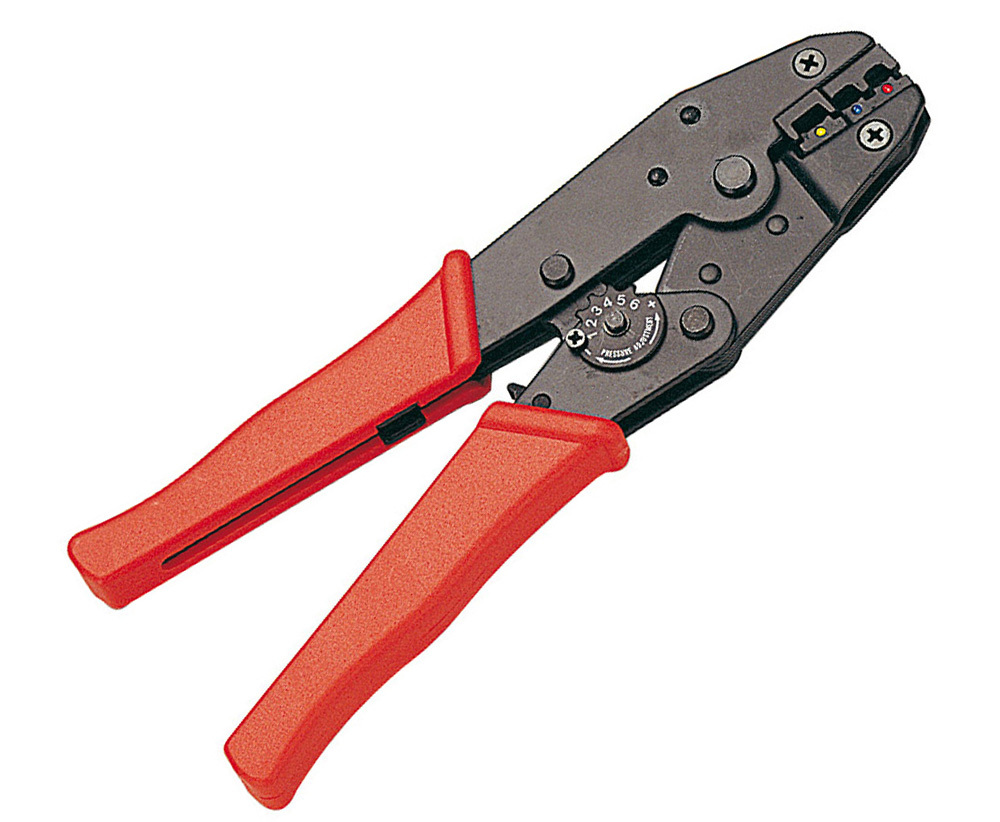

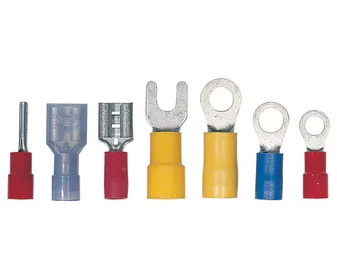

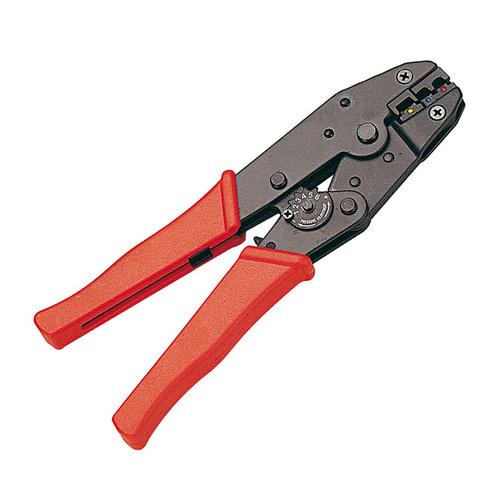

The budget pre-insulated terminal ratchet style crimper is for use with red, blue and yellow pre-insulated terminals.

  • The ratchet operation ensures correct crimp at reduced hand effort.
  • Note: When crimping flexible conductors in yellow terminals the maximum capacity of the tool is 6mm2.

Features

  • Low cost ratchet terminal crimper for red, blue and yellow pre-insulated terminals
  • Ratchet operation ensures correct crimp and reduced hand effort
  • Max capacity is 6mm2 when crimping flexible yellow conductors

Technical Data

  • Length: 230mm
  • Weight: 540g

The following interchangeable dies are available to purchase individually:

LY-03C Pre-insulated 0.5-6mm2
LY-04C Pre-insulated 0.14-6mm2
LY-10 Un-insulated and lugs 1.5-8mm2
LY-03B Roll crimp open barrel 0.5-6mm2
LY-04WF Bootlace Ferrule 0.5-4mm2
LY-06WF Bootlace Ferrule 0.75-6mm2
LY-16WF Pre-Bootlace Ferrule 6-16mm2
LY-35WF Bootlace Ferrule 16-35mm2
LY-50WF Bootlace Ferrule 25-50mm2

(KTC1)

SKU KTC1
Model # KTC1
Barcode # 9318674500087
Brand Cabac
