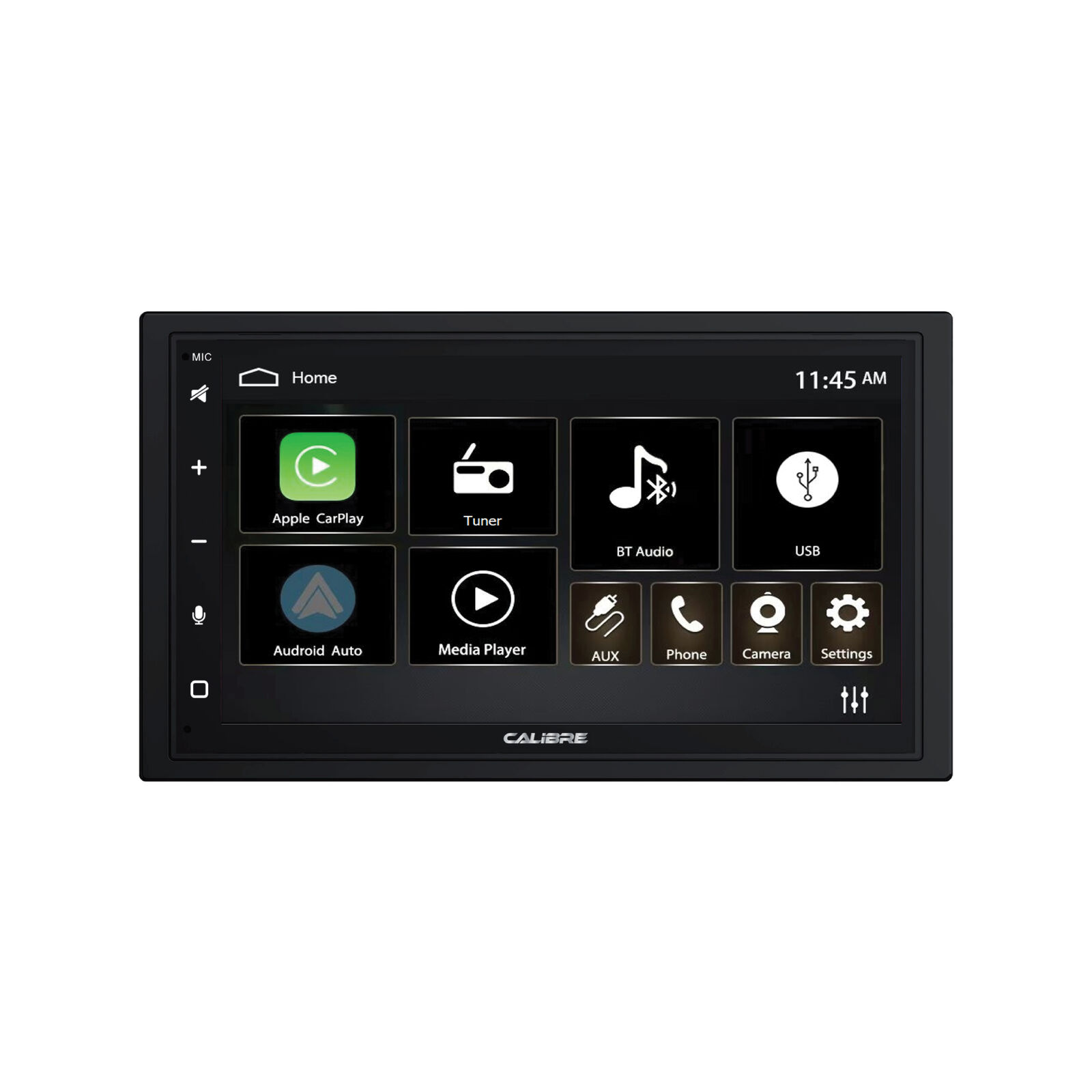

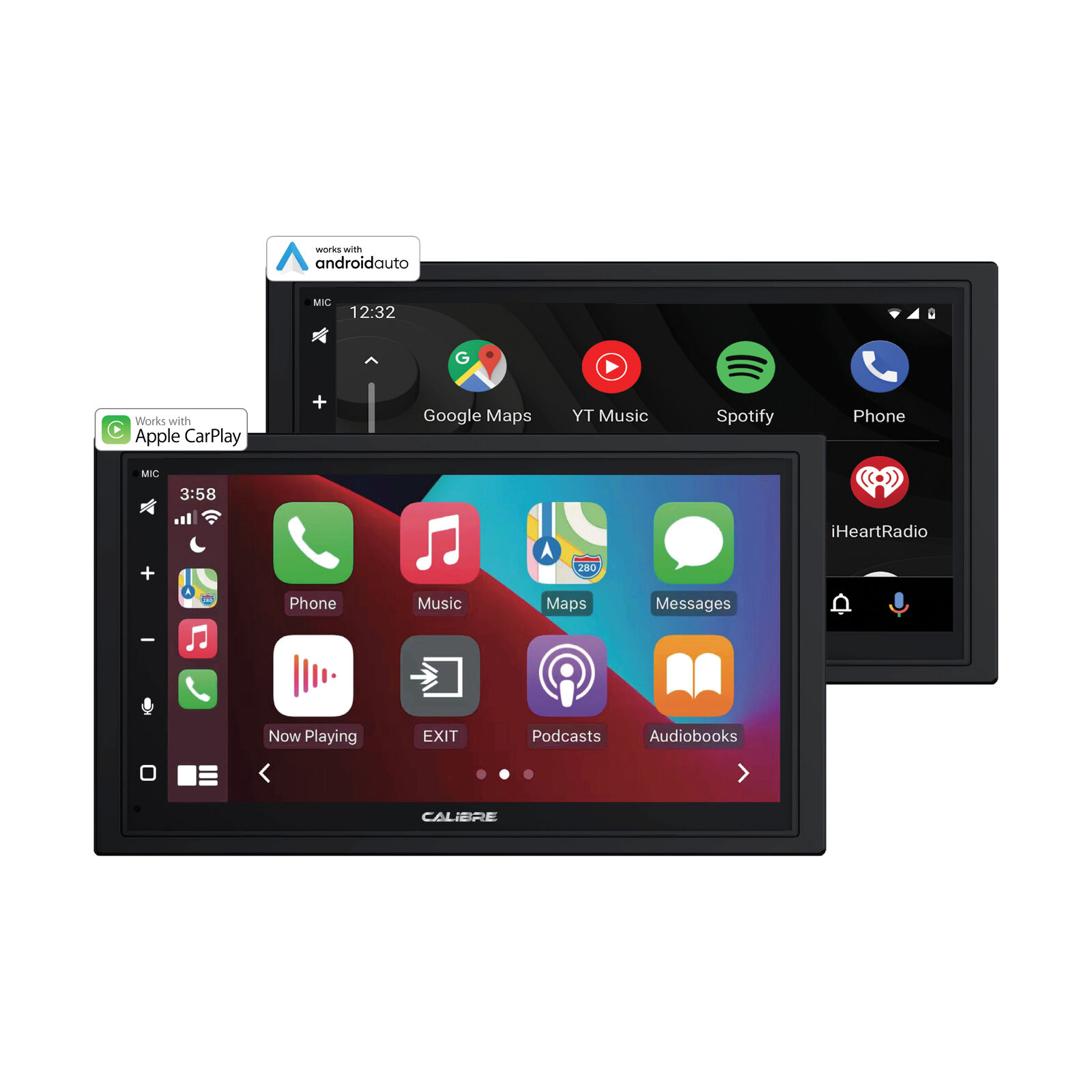

The ELITE 7W is loaded with premium features designed to enhance your entertainment experience. Offering Wired Apple CarPlay and Android Auto,High Resolution screens,Dual Camera inputs,and simultaneous 2 Phone Connectivity,These models provide a wealth of multimedia options.Both models are equipped with Ultra High Power 2? stable amplification,Making them a powerful upgrade to your factory system.

Specifications

GENERAL

  • 6.8 Inch 1024x600 High Resolution Capacitive Touchscreen
  • Linux OS
  • Steering Wheel Control (Programmable)
  • Digital Clock
  • ISO 2-DIN Mounting
  • Speaker Impedance 2-8ohm
  • 10.8~16 DC Voltage
  • -20° to +70°C Operating Temp
  • 170.5W x 97H mm Face Panel
  • 178W x 100 mm Overall

NAVIGATION

  • Via CarPlay/Android Auto

MULTIMEDIA

  • Built-in Wi-Fi
  • 2 x Rear USB 2.0 (1 x USB Media,1x CP/AA)
  • 1 x Rear A/V RCA Input
  • 2 x Camera Inputs (Front & Rear) (PAL & NTSC)
  • Audio Formats:FLAC,MP3,WMA
  • Video Formats: AVI,FLV,MKV,MOV,WMV
  • Image Formats:BMP,JPEG,PNG

TUNER

  • PLL Synthesized AM/FM
  • ELITE RDS AM/FM Tuner
  • FM 87.5-108MHz;AM522-1710KHz
  • 18  FM & 12 AM Presets

AUDIO

  • Max Power:4x72W @ 2 & 4x48W @ 4
  • RMS Power:4x38W @ 1KHz 1% THD 2                                                                                                                  4x22W @ 1KHz 1% THD 4
  • Selectable On/Off Max 2% THD Limiter
  • Internal Amp:On/Off
  • 10 Band EQ:32/63/125/250/500/1K/2K/4K/8K/16K
  • Front/Rear Out HPF:OFF/50/80/120/160Hz
  • Sub Out LPF:OFF/20/30/40/50/60/80Hz
  • Time Alignment:Front L/R, Rear L/R, Sub
  • Loud/Mute
  • 4 x RCA Pre-out 4V
  • 2 x Sub RCA Pre-out 4V

BLUETOOTH

  • A2DP Audio Streaming
  • Hands Free Phone
  • Simultaneous 2 x Phone Connect
  • Phonebook & Search
  • Call History
  • External Microphone

(ELITE7W)

SKU ELITE7W
Model # ELITE 7W
Barcode # 9321886017397
Brand CALIBRE
