CATV or RF Over Cat5E Extender RJ45 Male with 2m RG6 Coax Cable

The CATV CAT5 Extender to RJ45 with 2m RG6 coax cable allows traditional 75-ohm coaxial cable to be replaced by a single pair Cat5e UTP cable. Used in pairs, it allows broadband CATV equipment to be integrated into structured cabling systems thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet. It provides a versatile cabling solution for broadband video systems used by offices, schools, government, hospitals, hotels, even private homes.

The CATV CAT5 Extender works in conjunction with CATV splitters, amplifiers and cable modems for a total cabling solution.

Features

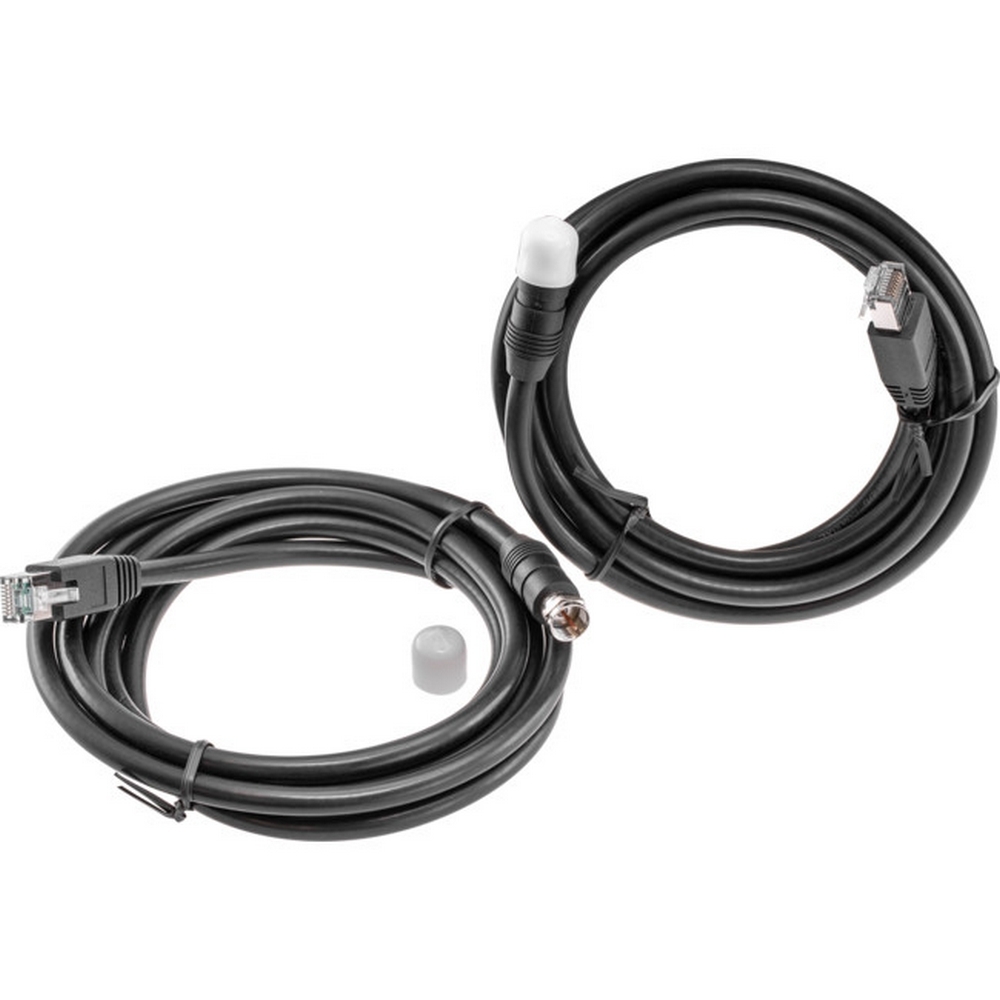

Shielded RJ45 male with 2m RG6 coax cable
Passive type, no external power required
Support bandwidth 40Mhz to 2.4GHz
Distance up to 30m at 2.4GHz frequency
Max. distance up to 100m based on low frequency
Work with CATV, satellite receivers, RF splitter and amplifier
Package include 2 units (1 pair)

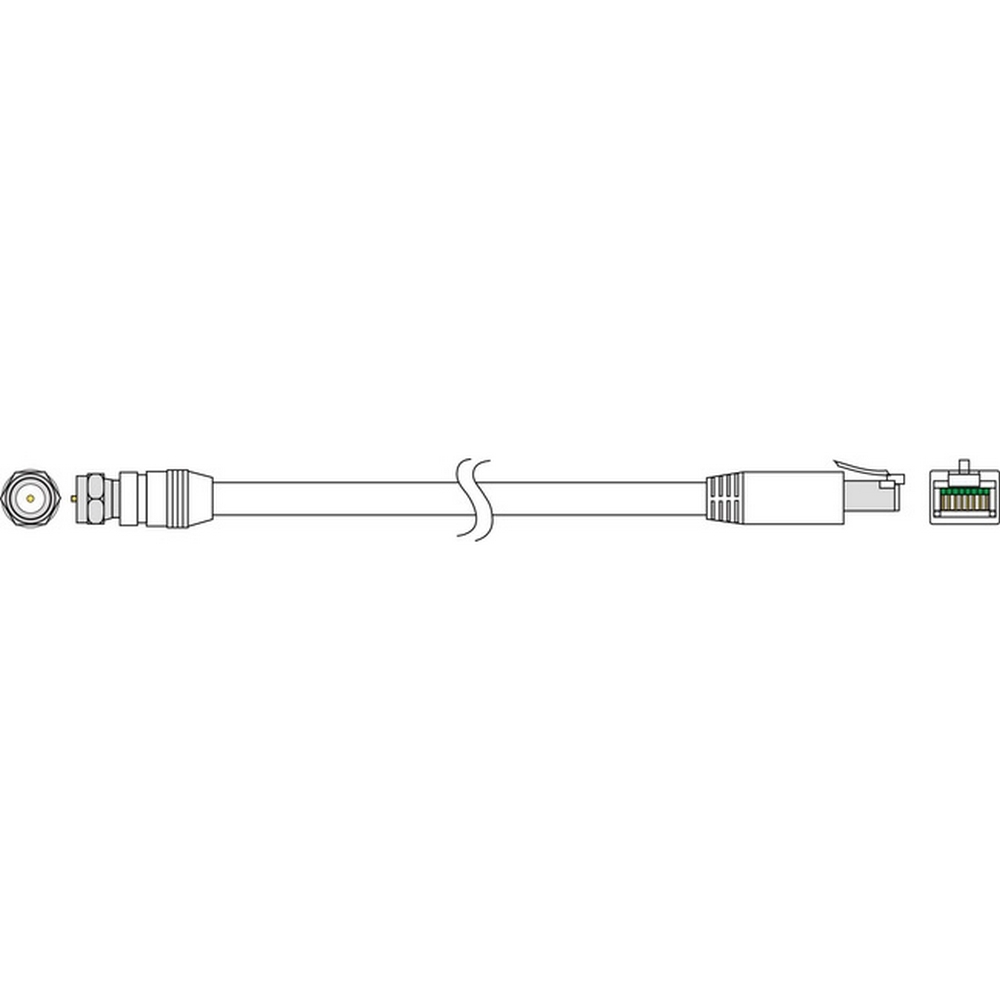

Input/Output Interface	F (male) x 1, RJ45 x 1
Support Bandwidth	40MHz ~2.4GHz
3dB Bandwidth	40 MHz ~ 1 GHz
Insert Loss	< 3 dB @ 40 ~ 1 GHz
Return Loss	> 18 dB @ 40 ~ 1 GHz
Common-Mode Rejection Ratio (CMRR)	-20dB or higher @ 40 MHz ~ 1 GHz
CAT.5e/6 UTP Cable	24AWG, Impendence:100Ω
Coax Cable	Impendence: 75Ω @ 1 MHz (RG6)
Transmission Distance	Based on frequency or input video signal level, max. up to 100m
Temperature	Operation: 0 to 55°C, Storage: -20 TO 85°C,Humidity: up to 95%
Dimensions	14.2 x 15.6 x 2000mm
Weight	135g

The following distance chart reference may different based on cable quality and input/output signal level.

Cable	Frequency	Application Range	Distance	Remark
CAT5e UTP	54~174MHz	CATV 2~6, 95~99, 14~22	100m	The use of an amplifier may increase the application range and working distance
CAT5e UTP	174~300MHz	CATV 7~13, 23~36	80m
CAT5e UTP	300~648MHz	CATV 37~94	50m
CAT5e UTP	648~1002MHz	CATV 100~158	30m
CAT5e UTP	1002~2200MHz	Satellite signal	30m
