Adjustable infrared PIR surface mounted sensor that is tiltable by 90° up or down to suit wall mount and ceiling mount.
360° IR Coverage up to 20 metres. Day/Night switch with adjustable ambient light level. Time ON setting 10sec-30min.
240Vac 1000W rated load.

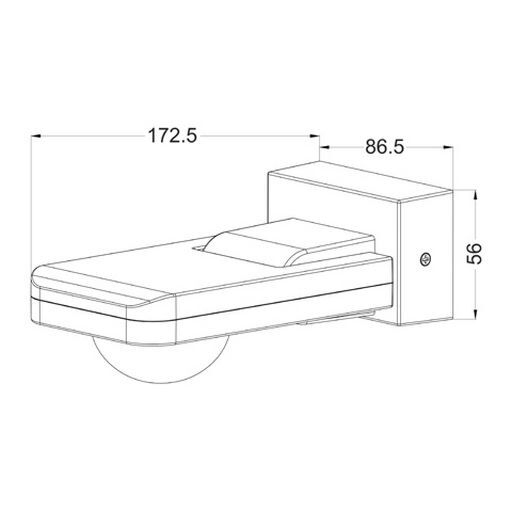

173x56x87mm IP65

  • Adjustable infrared PIR surface mounted sensors
  • Mounting Type: surface Mounted
  • Input voltage: 220-240V 50/60Hz
  • Detection Range: 360°
  • Detection Distance: 20m Max (<24°C)
  • Motion Detection Speed: 0.6-1.5m/s
  • Rated Load: 2000W HAL/ 1000W CFL/ 1000W LED
  • Time Delay: Min.10sec±3sec; Max.30min±2min (restarts from last movement)
  • Ambient Light: 3-2000Lux
  • Ambient temperature: -20 to 40°C
  • Working Humidity: <93%RH
  • Power Consumption: approx. 0.5W
  • Installation Height: 2.2-6m
  • Housing Material: PC
  • IP rating: IP65
  • UV resistant
  • 3 wire (2 in, 1 load)
  • Day/Night recognition
  • Manual override
Colour White
Dimmable No
Manufacturer CLA

(MS009)

SKU MS009
Model # MS009
Brand CLA
