Features
- Insulated by sign pressure, gas injected foamed dielectric
- Provide supper low attenuation loss in wider frequency range
- Maintain low loss and stable VSWR in high frequency against aging
- Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station

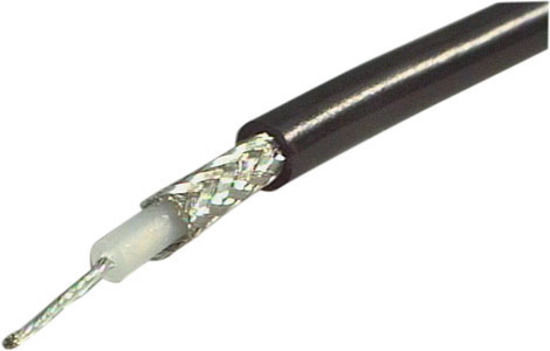

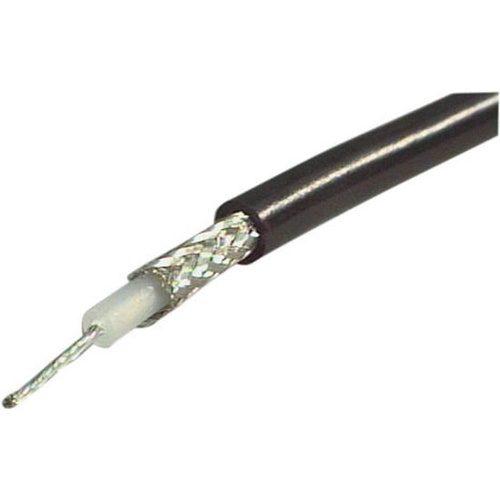

Cross Section

  • Outside diameter: 4.95
  • Shielding size: 16/7/0.127
  • Conductor Area: 0.48mm2
  • Conductor: 19/0.18mm Stranded Tinned Copper
  • Insulation Nominal: 2.95mm Solid Polythylene
  • Loss @ 100MHz: 17.4dB/100m
  • Jacket Nominal: 4.95mm Black PVC
  • Shield Material & Coverage: 95% Tinned Copper Braid
  • Nom Imp Ohm: 50
  • Nom Vel Prop: 67%
  • Nominal Capacitance PF/m: 101
  • Nominal Attenuation
  • - 50 : 10.9
  • - 100 : 16.4
  • - 200 : 24.0
  • - 400 : 37.9
  • - 700 : 55.6
  • - 900 : 65.8
  • - 1000 : 70.7

(W2230)

12 month warranty

SKU W2230
Model # W2230
Barcode # 9321758046555
Brand BOURNE
Unit Of Measure each
