Features

  1. 50MHz bandwidth
  2. Measurement channel: 2 analogchannels
  3. Real-timesamplingrate: 500MS/S
  4. Storagedepth: 64kpts
  5. Waveformcapturerate: 5,000wfms/s
  6. Auto measurement: 34 waveform types
  7. Abundant trigger: Edge * Pulse width * Slope trigger * Video trigger * Alternatingtrigger
  8. Display:7-inch WVGA (800X 480) TFT LCD, super-widescreen, clean display
  9. Peripheralinterface: Standard USB Host, USB Device, EXT Trig,Pass/Fail
  10. New Autoset function: Customized auto strategy to facilitate oscilloscope teaching
Applications:
Serial data analysis, jitter analysis, data storage device testing, electric vehicle and electronics equipment design, evaluating frequency response of sound equipment, troubleshooting automotive engines, electronics technician repair and maintenance.

Math function

Support addition, subtraction, multiplication, division, and waveform calculation functions

ZOOM function

XY mode (also called Lissajous graphics mode)

Brand new AUTO strategy

The state after AUTO can be set

Standard square wave output

With 10hz, 100hz, 1Khz, 10Khz local signal standard square wave output

Automatic parameter measurement

With 34 kinds of automatic parameter measurement, 5 groups of customizable parameter display

Grade Display

Grade display can view the worst case of changing waveforms, capture rare and abnormal signals

Alternate trigger

It can be effectively applied to trigger signals without frequency correlation

Specifications

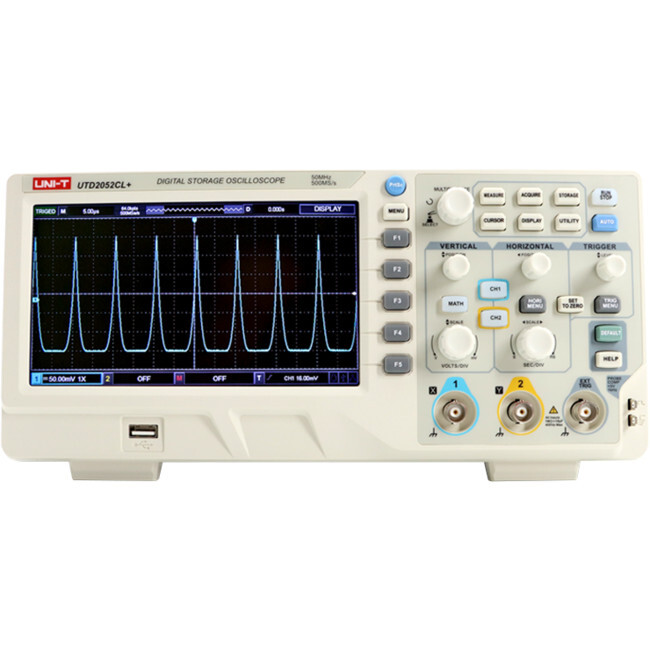

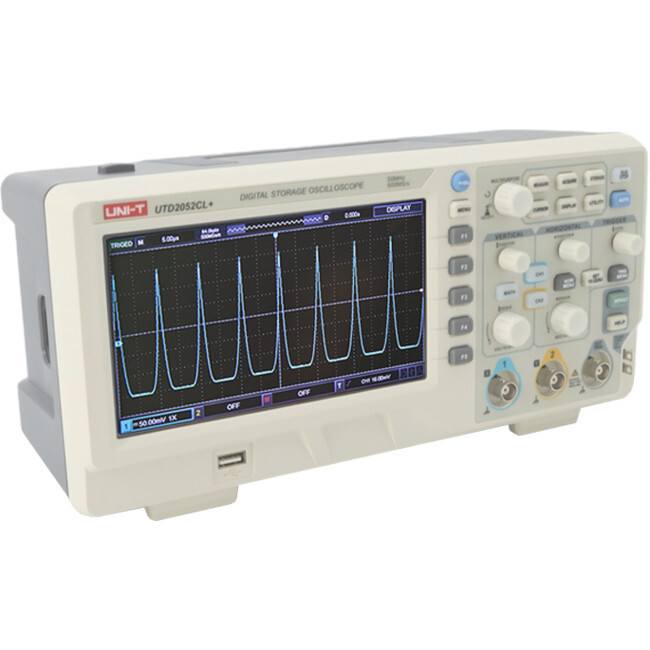

Model UTD2052CL+
Bandwidth 50MHz
Channels 2
Sampling rate 500MS/s
Rise time (Typical) <7ns
Memory depth 64kpts
Waveform capture rate 5000 wfms/s
Time base scale 2ns/div-50s/div
Storage methods Setting, Reference waveform, Data file, Bitmap
Trigger specifications
Frequency counter 6 bits
Trigger types Edge, pulse width, slope, video, alternate
Level range Internal ±10div from screen center
EXT ±3V
Holdoff range 80ns~1.5s
Edge trigger types Rise, fall, arbitrary edge

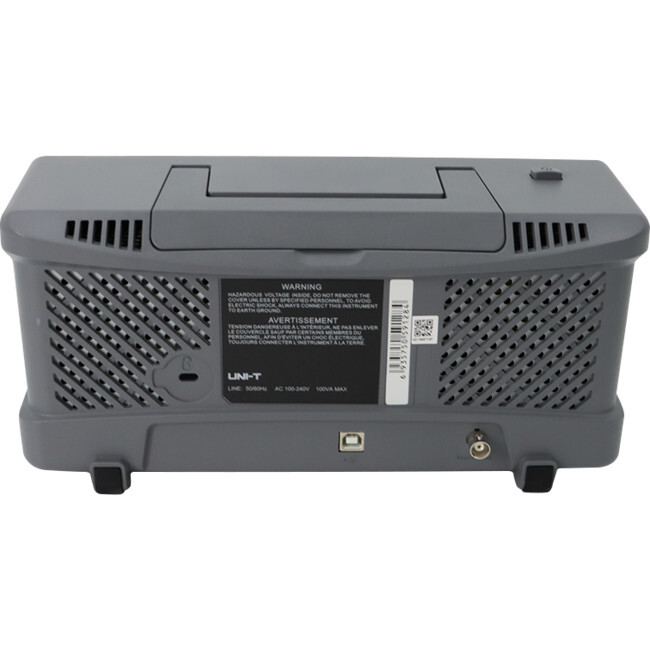

Interfaces Pass/Fail , USB Device, Standard USB Host, EXT Trig
General Characteristics
Power 100V-240V 50Hz/60Hz
Display 7-inch TFT LCD, WVGA (800x480)
Product color White and grey
Product net weight 2.5kg, 3kg including package
Product size 306mm x 138mm x 124mm
Standard accessories Probe x 2 (1x, 10x switchable), power cord, USB interface cable
Standard individual packing Carton box
Standard quantity per carton 2pcs

(UTD2052CLPLUS)

SKU UTD2052CLPLUS
Model # UTD2052CLPLUS
Barcode # 6935750591284
