Aiphone JF Series

The JF Series is a high performance, hands-free videointercom system with a superior monitor and an amazingly slim design. It is easy to operate and requires little time to install. The JF Series is the simple and effective solution to your security needs. Five different door stations are available. The JF-DA is a standard, compact door station with a plastic cover. The JF-DV and JF-DVF bothhave metal call buttons and vandal/weather-resistant panels.The JF-DVF-HID and JF-DVF-HID-I both have call buttons, weather/vandal-resistant panels, and embedded access controlcard readers. All of the video door stations have a built-inspeaker, microphone and a color CCD camera with white illuminator LEDs.

JF Enhanced Version Features
The JF enhanced system adds several features to the standard system. It supports two color video door stations and three inside color monitor stations or audio only stations. Inside stations offer hands-free VOX or Push-to-talk (PTT) communication. Door release and entrance monitoring are standard. Additional features include built-in Picture Memory, Internal Voice Memo, and Entrance Messaging. Image sequences are automatically recorded (8 frames per image) when a visitor calls. Up to 50 image sequences can be recorded and 10 sequences can be saved. Save special or necessary images, leave internal voice messages, and play recorded voice greetings for visitors.

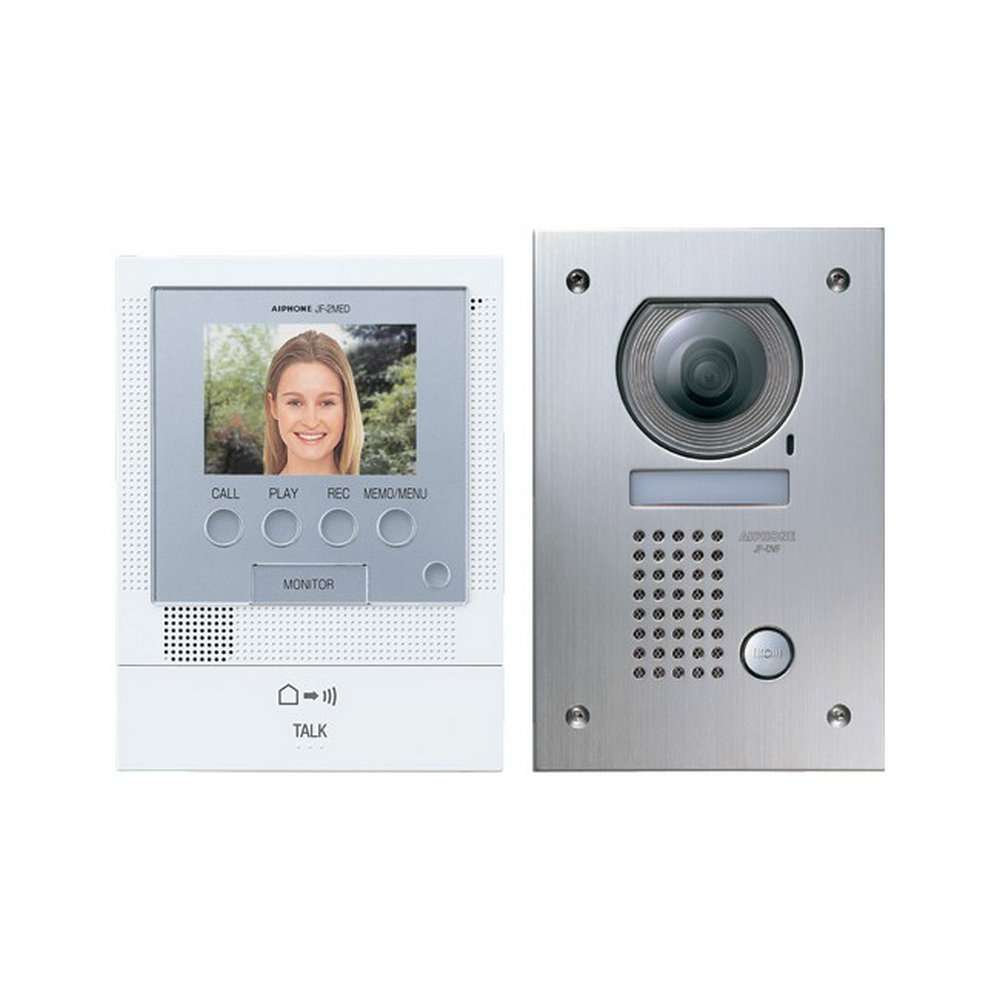

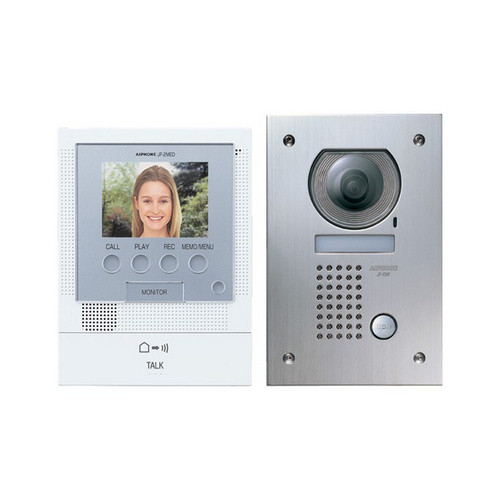

JFS-2AEDF
Consists of JF-DVF [Flush mount door station] + JF-2MED[Colour monitor]+ 18V DC [18V switchmode power supply]

• Affordable Color Video System
• Clear identification provided day & night
• Both hands-free & push-to-Talk
• LED light Indicates who is speaking
• One or two color video door stations
• VOX or Push-to-Talk operated communication
• Large TALK button activates communication
• Hands-free Audio and Video monitoring
• Compact surface mount color video door station (JF-DA)
• Vandal resistant video door stations available in both surface (JF-DV) and flush (JF-DVF)
• Illuminating LEDs for low light conditions

JF-DVF
Fixed Video Door Station lush Mount

• Color CCD camera
• Speaker
• Mic for communication
• Illuminated call directory
• White illumination LED for low light conditions
• Camera protected with clear Lexan lens cover
• Stainless steel faceplate, call button is metal
• Comes with mounting box to ease installation

JF-2MED
Master Monitor

The JF-2MED is an open voice, color video master monitor that allows the connection of up to two videodoor stations and 2 additional sub monitors. The unit features a 3-1/2" TFT color monitor, a TALK button for PTT or VOX activate communication, a door release button, call-in LED's, door chime and communication volume controls and brightness control. The unit features a built-in picture memory unit that records up to 400 images of visitors. The voice memo feature on the JF-2MED allows users to record up to three ten second messages for replay later.

Specifications:

• Power: 18V DC - Use PS-1820S, PS-1820UL, PS-1820,PS-1810DIN
• Calling: Chime, image and audio approx. 45 sec.
• Communication:
  • Approx. 1 min.
  • AUTOMATIC (hands-free) - to activate,momentarily press TALK button
  • MANUAL (press-to-talk/release-to-listen)- to activate, press TALK button for 1 sec. or more
• Video Monitor: 3-1/2 inch direct view TFT color LCD
• Scanning Line: 525 lines
• Minimum Illumination: 5 Lux at 30cm distance
• Night Viewing: Up to 30cm from camera, with whiteLED projected, background beyond 30cm cannot be seen
• Door Release Contact: 24V AC/DC, 500mA (N/O dry closure contact)
• Option Output: 24V AC/DC, 1.6A (dry closure contact)
• External Sensor Input: N/O dry closure contact
• Wiring:
  • Door to master: 2-cond., mid cap, solid, non-shielded
  • Master to sub: 4-cond., mid cap, solid, non-shielded
• Distance:
  • Master to door: 50m (Ø0.65mm) 100m (Ø1.0mm)
  • Master to farthest sub: 50m (Ø0.65mm) 100m (Ø1.0mm)
  • Master to IER-2: 75m (Ø0.65mm) 150m (Ø1.0mm)
