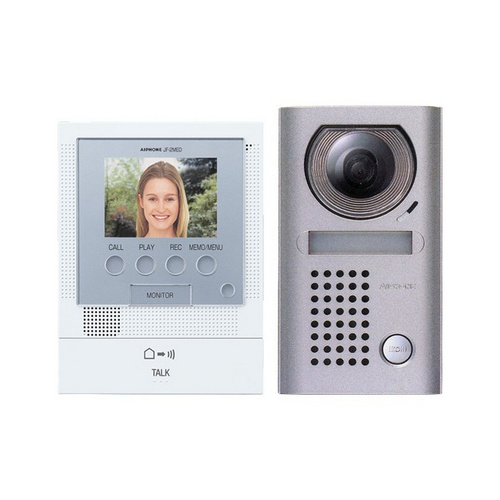

Aiphone JF-2MED + JF-DV Kit

JF System Description
The JF Series is a high performance, hands-free video intercom system with a superior monitor and an amazingly slim design. It is easy to operate and requires little time to install. The JF Series is the simple and effective solution to your security needs.

Kit includes:

• JF-2MED: Master Station
  The Aiphone JF2MED colour LCD hands free video monitorprovides audio and video communications with up to two video door stations. The Aiphone JF2MED is a slim style video room station that is only 27 mm thick. The JF2MED features hands free communications with the door stations and internal room stations. The Aiphone JF2MED also feature digital picture memory function as well as a audio memo function.
• JF-DV: Surface mount vandal resistant video door station
  The JF-DV is a vandal resistant, surface mount door station used with the JF open voice, color video entry series. The unit mounts directly to wall surface or to a 1-gang box with an adaptor. The JF-DV faceplate is cast zinc, the call button is metal and the camera is protected with a  clear Lexan lens cover. The JF-DV features a color CCD camera, speaker and mic for communication,illuminated call directory andwhite illumination LED for low light conditions.Clear Color Identification is always available even at Night !
• Power supply

Features

• Affordable Color Video System
• Clear identification provided day & night
• Both hands-free & push-to-Talk
• LED light Indicates who is speaking
• One or two color video door stations
• VOX or Push-to-Talk operated communication
• Large TALK button activates communication
• Hands-free Audio and Video monitoring
• Illuminating LEDs for low light conditions

Applications in most markets:

• Commercial: Office buildings, retail stores, parking garages, front and rear entrances and employee only areas
• Educational: Primary and secondary schools, collegecampuses, main entrances, service areas, and faculty areas
• Government: Local, state and federal government branches, courtroom security, airports and embassies
• Healthcare: Hospitals, medical clinics, nurseries, pharmacies, and staff lounges
• Residential: Single-family homes, gated entries, housing developments and multi-tenant buildings w/ individual entrances

Specifications:

• Power Source 18V DC, supplied by PS-1820UL
• Use one PS-1820UL per system
• Video Monitor 3-1/2” direct-view TFT color LCD
• Calling Chime, image and audio approx. 45 sec.
• Communication AUTOMATIC (hands-free) - to activate, momentarily press the TALK button.
• MANUAL (press-to-talk/release-to-listen) - to activate, press the TALK button for 1 sec. or until talk LEDturns on.
• Scanning Line 525 lines
• Min. Illumination 5 Lux at 1' distance
• Night Viewing Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen
• Door Release Contact rating:
  • N/O 24V AC/DC, 500mA
  • Use RY-18L for Form-C high-current contact
• Wiring:
  • Wiring Door to master: 2-conductor
  • Master to sub (Enhanced): 4-conductor
  • All mid cap, solid, non-shielded
• Distance Door to master: 165’(22 AWG); 330’(18 AWG)
• Master to farthest sub: 165’(22 AWG); 330’(18 AWG)
• Dimensions (HxWxD): JF-DV: 6-13/16" x 3-7/8" x 1"
