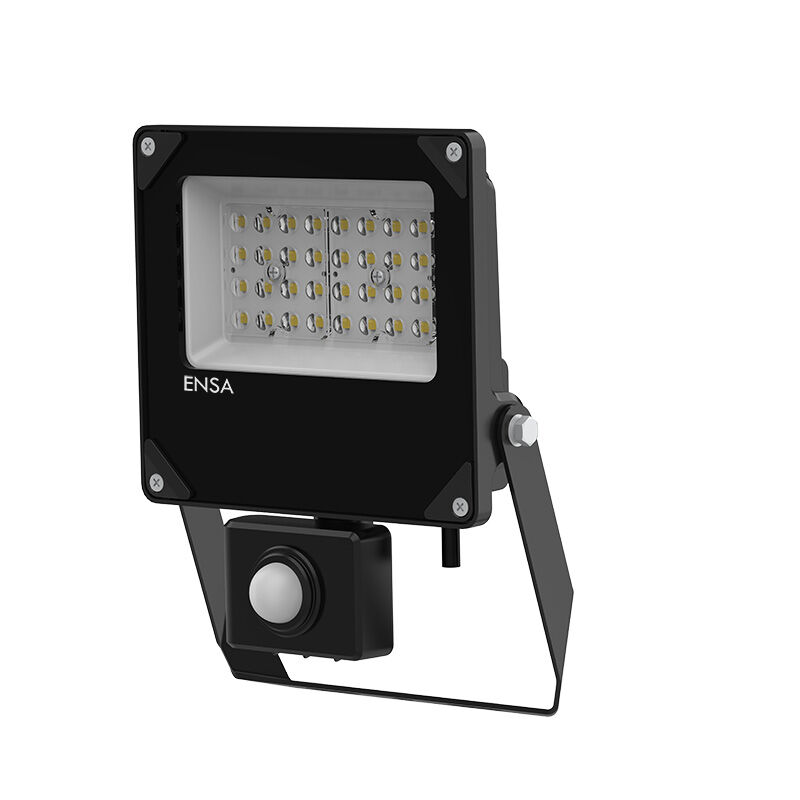

The LFL-C-3 Series combines energy saving LED flood lighting with customisable motion-sensing technology. Models use high quality Lumileds LEDs and reliable LED drivers for long lasting performance. Available in three wattages, each model in this series is equipped with a 8m passive infrared sensor with lux sensitivity, motion sensitivity and on-time adjustments.

The LFL-C-3 Series is built with a metal, IP66 rated weather resistant chassis, making them suitable for outdoor lighting in residential, commercial and industrial applications.

• Superb light output across the range up to 140lm/W
• High quality Lumileds 2835 LEDs in 5000K cool white
• Sensor flood light models detect up to 8m in a 140° arc
• Durable metal IP66 rated weather resistant chassis
• Adjust light & motion sensitivity and light on-timer
• On/off sensor light; pan/tilt adjustable PIR sensor body
• Wide 120° beam angle, great for general purpose lighting
• Adjustable U-shape mount with over 240° of motion

Specifications

Optical

• Light Output - 2800lm
• Luminous Efficacy - 140lm/W
• Colour Temperature - 5000K
• Colour Rendering Index - >80
• Beam Angle - 120°
• Light Decay - <5% at 6,000 hours
• Rated Lifespan - 50,000 hours

Electrical

• Power Consumption - 20W
• Input Voltage - 100 ~ 240VAC 50 / 60Hz
• Power Factor - >0.9
• Dimmable - N/A
• Motion Activated - Passive Infrared (PIR) motion sensor, 140° arc up to 8m range, pan & tilt sensor (±75°)

General

• Ingress Protection - IP66
• Plug / Socket / Base - Unterminated
• Reflector / Diffuser - Internal aluminium reflector / Tempered glass front
• Housing Adjustments - 240° adjustable 2-point fastened U-bracket
• NSW ESS Accepted - N/A
• Operating Environment - -20° ~ 50°C
• Dimensions - 212 x 182 x 124mm
