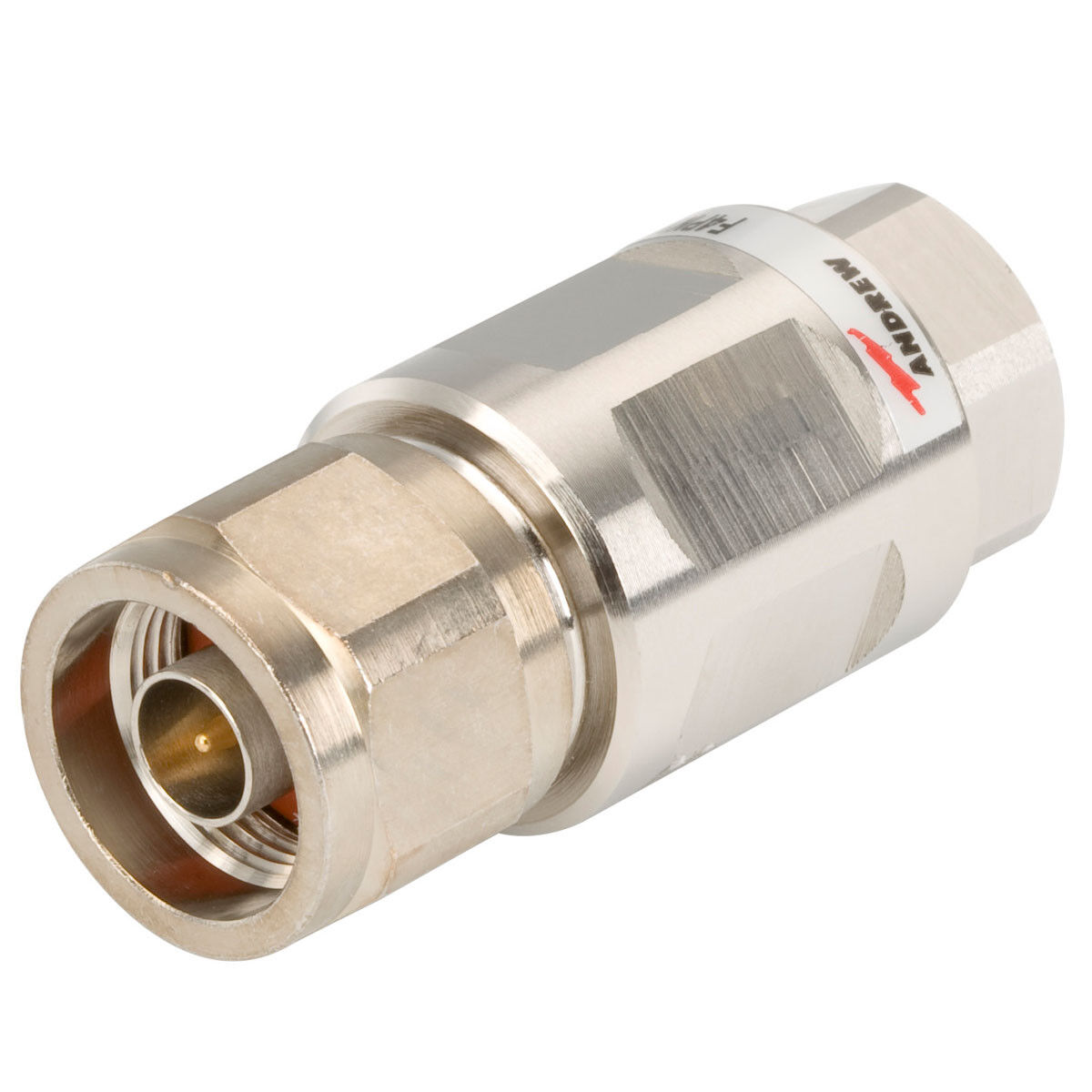

CommScope F4PNMV2-HC Type N Male Connector for 1/2 in FSJ4-50B Cable

Upgrade your connectivity with the CommScope F4PNMV2-HC Type N Male Connector, specifically engineered for 1/2 inch FSJ4-50B cables. Built to BigCommerce standards, this high-quality connector ensures reliable performance and seamless integration into your communication network.

Key Features:

  • Precision Engineering: Ensures optimal signal transmission without interference.
  • Compatibility: Perfectly fits 1/2 inch FSJ4-50B cables for secure connections.
  • Durability: Built to withstand harsh conditions and frequent use.
  • Easy Installation: User-friendly design for quick setup.
  • Versatility: Suitable for various applications, from telecommunications to industrial settings.
  • Industry Compliance: Meets industry standards for compatibility and performance.
  • High Conductivity: Efficient signal transfer for network integrity.
  • Trusted Brand: CommScope - globally recognized for innovation and reliability.
Specification Category Details
Product Classification
Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series FSJ4-50B | FSJ4RK-50B
Ordering Note CommScope® standard product (Global)
General Specifications
Body Style Straight
Cable Family FSJ4-50B
Inner Contact Attachment Method Captivated
Inner Contact Plating Gold
Interface N Male
Mounting Angle Straight
Outer Contact Attachment Method Crush-flare
Outer Contact Plating Trimetal
Pressurizable No
Electrical Specifications
3rd Order IMD at Frequency -120 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 0.6 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2000 V
Inner Contact Resistance, maximum 2 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 12000 MHz
Outer Contact Resistance, maximum 0.3 mOhm
Peak Power, maximum 10 kW
RF Operating Voltage, maximum (vrms) 707 V
Shielding Effectiveness -110 dB
Return Loss/VSWR
Frequency Band VSWR Return Loss (dB)
0–1000 MHz 1.032 36.06
1010–2000 MHz 1.036 35.05
2010–3000 MHz 1.083 27.99



General Information
Manufacturer: CommScope
Manufacturer Part Number: F4PNMV2-HC
Barcode: 90009299
Packaging Details
Weight: 0.10 KGS
Width: 1.00 (cm)
Height: 1.00 (cm)
Depth: 1.00 (cm)





(ACC-CS-00114)

SKU ACC-CS-00114
Model # F4PNMV2-HC
Barcode # 90009299
Brand COMMSCOPE
