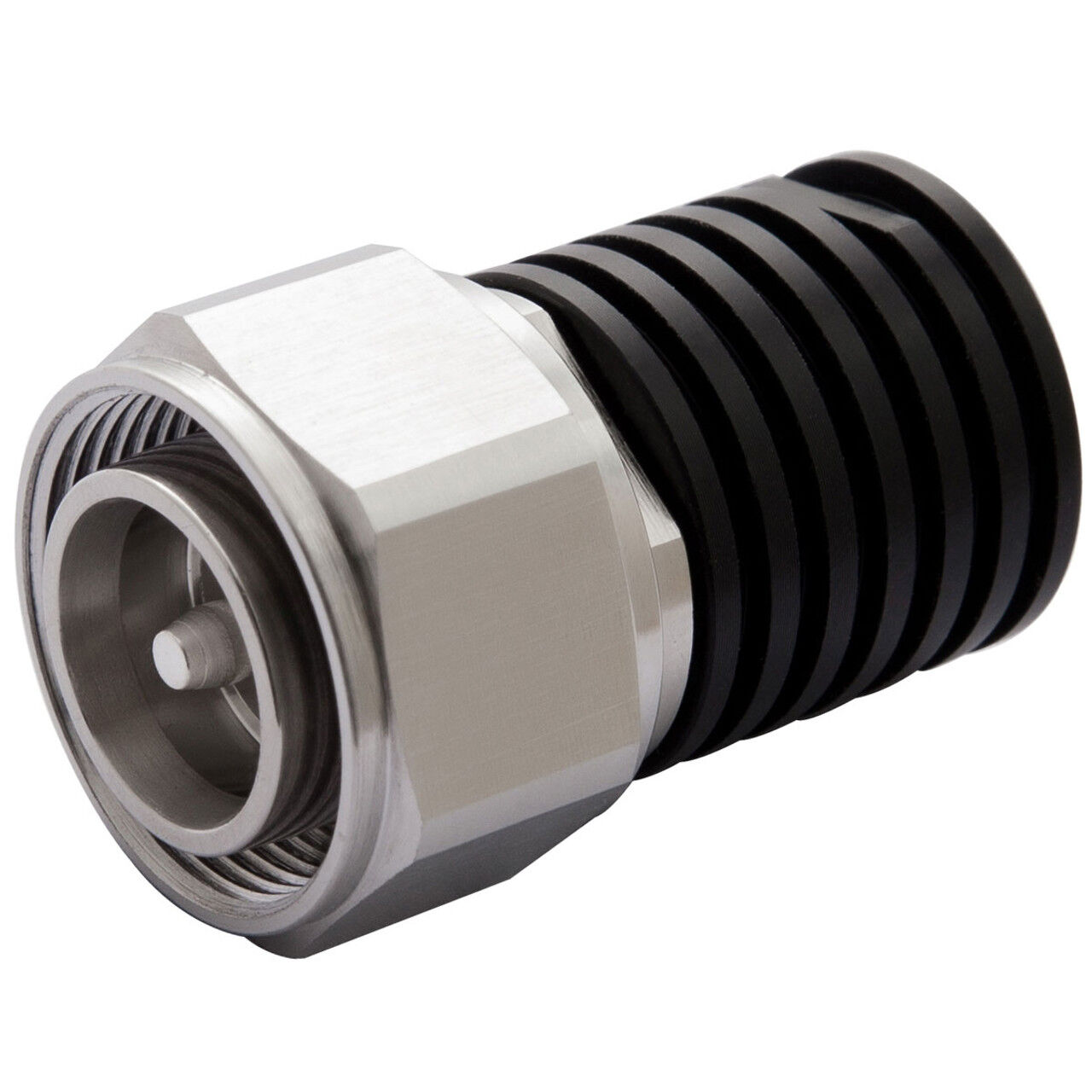

CommScope Termination Load, 4.3-10 Male, 0 to 6000 MHz

The CommScope Termination Load, 4.3-10 Male, 0 to 6000 MHz, is a high-performance RF component designed for efficient signal termination in various telecommunications applications. This termination load offers superior performance, reliability, and ease of installation.

Key Features:

  • Wide Frequency Range: Operates from 0 to 6000 MHz.
  • Connector Type: Features a robust 4.3-10 male connector.
  • Low VSWR: Minimizes signal reflection for enhanced system performance.
  • High Power Handling: Suitable for high-power applications.
  • Durable Construction: Built with high-quality materials for longevity.
  • Compact Design: Easy to install and integrate into existing systems.
  • Environmental Resilience: Suitable for indoor and outdoor use.
Specification Category Details
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Termination Load
Device Type Termination Load
Application Indoor/Outdoor
Color Black
Inner Contact Plating Silver
Interface 4.3-10 Male
Outer Contact Plating Trimetal
Average Power at Temperature 1.7 W @ 60 °C
Average Power, maximum 2 W
Impedance 50 ohm
Operating Frequency Band 0 – 6000 MHz
VSWR 1.15
Operating Temperature -35 °C to +50 °C (-31 °F to +122 °F)
Relative Humidity Up to 100%
Ingress Protection Test Method IEC 60529:2001, IP65

(ACC-CS-00090)

SKU ACC-CS-00090
Model # T-2-UW-43-M
Barcode # 90008278
Brand COMMSCOPE
