Hide your AV equipment in a cupboard or rack without losing the ability to control them with their Remote Controls. Installing the Compact IR Repeater kit is quick and simple, and expandable offering extra output ports for more emitters/equipment!

Features

  • Four amplified emitter output connections
  • convenient IR confirmation LED
  • Power indication LED
  • Compact size for mounting near audio equipment
  • IR receiver and emitters supplied
  • Compatible with Foxtel IQ2

In The Box

  • 1x Compact IR Repeater Box

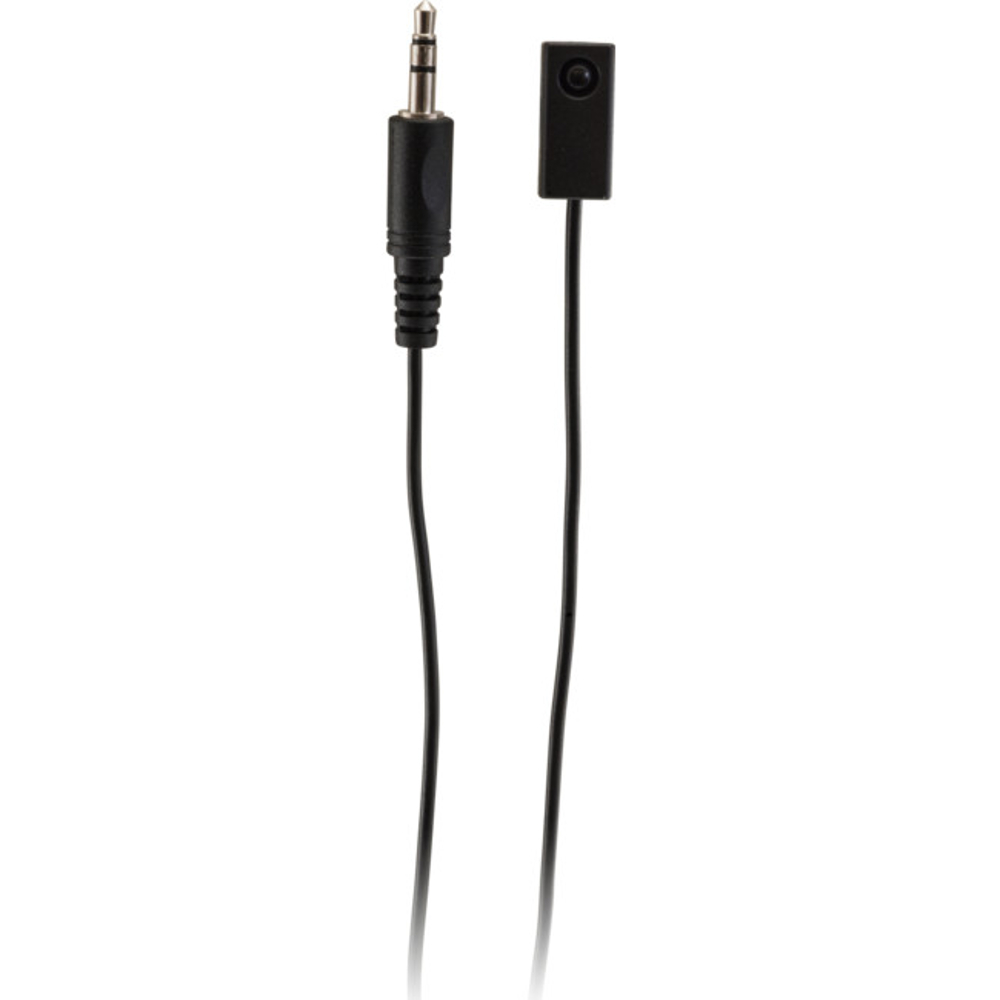

  • 1x IR Receiver (3.5mm Stereo plug)
  • 2x Dual IR Emitters (3.5mm Mono plug)
  • 1x Power Adapter (5VDC / 500mA)
  • 2x Mounting Screws

Specifications

Repeater Box Receive/Transmit Frequency 38kHz ~ 56kHz
Power 5VDC / 500mA
Dimensions 104x32x17mm
Weight 25g
IR Receiver Range 40ft @ 38kHz
25ft @ 56kHz
Connector 3.5mm stereo plug
  Tip: Signal
Ring: +V
Sleeve: Gnd
Cable Length 3metres
Dimensions 20x9.4x7mm (excl cable)
Weight 21g
IR Emitter Emitters/LEDs 2x (Dual)
IR Wavelength 940nm
Cable Length 3metres
Connector 3.5mm mono plug
Tip: Signal
Sleeve: Gnd



(PRO1326)

12 Months

SKU PRO1326
Model # A-1326
Barcode # 9328202015204
Brand PRO2
Unit Of Measure each
Assembled Width 0.235m
