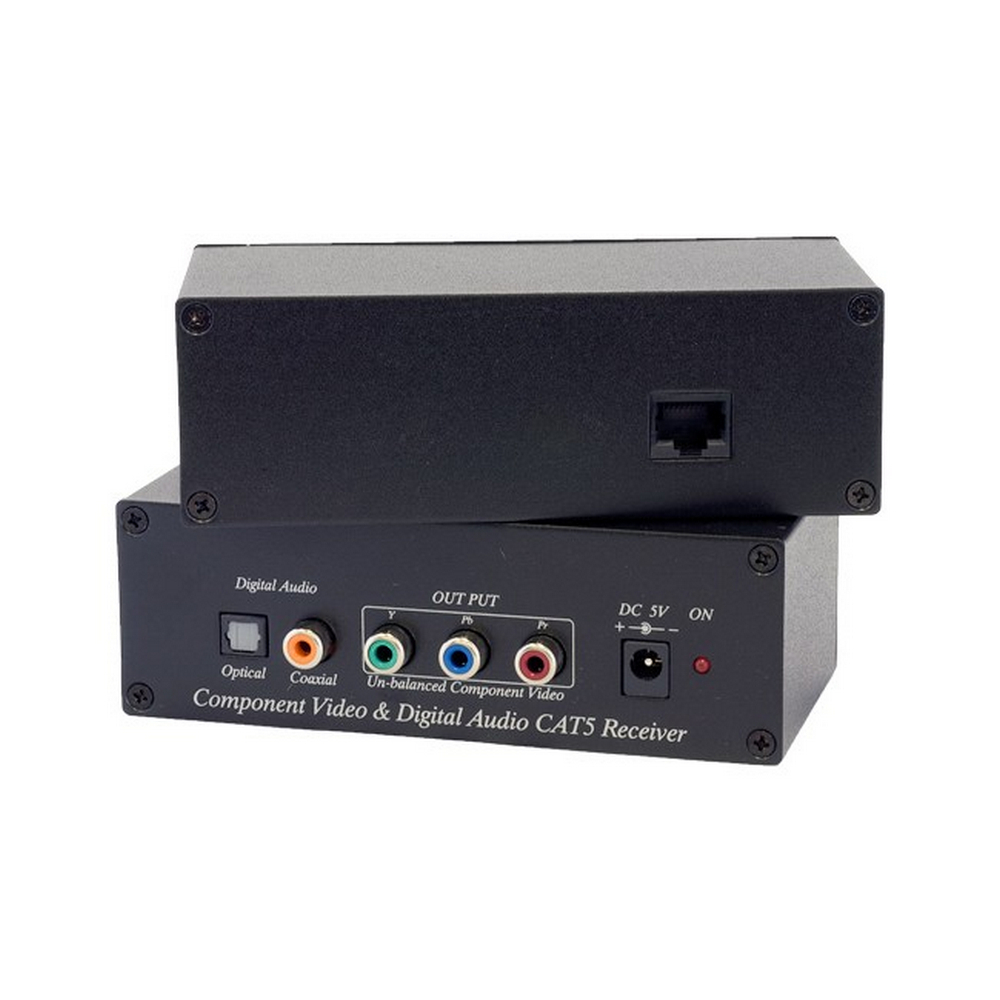

Component Video Cat5 UTP Cable Extender Balun 2Piece Set with Digital Audio

CV02A-4 IDEO DIGITAL AUDIO CAT5 EXTENDER 2PCS/SET

The Component Video & Digital BALUN is designed for component video signal (Y, Pb, Pr) and one digital audio be transmitted via cost effective one CAT5 UTP cable. Used inpairs, the Component Video/Digital Audio BALUN supports 408i/p, 720p and 1080i video formats for hi-definition (HDTV) video application. Application for control rooms, multimedia rooms, communications centers, convention facilities, classroom video corporate projection system.

Designed for component video and digital audio signal transmission over one CAT5 UTP cable.
Active type, with external power.
Digital Audio: coaxial or optical interface
Up to 300 meters for video and digital audio.
Support HDTV signal up to 300 meters (480i /480p/720p/1080i/1080p).
Offers a high quality component video signal for useon plasma and LCD displays.
Perfect for DVD, VCR, DVR, TV, Satellite receivers, monitors, home theatre and other equipments supporting component video with digital audio.

Specifications:

ITEM NO.	CV02A
VIDEO INPUT (RCA Connector)	Green colorfor Y, Blue color for Pb, Red color for Pr,
Audio Input	RCA or Optical
Support	480Ii/480p/720p/1080i/1080p
Bandwidth	Video: 60Mz, 3dB roll off, Digital Audio: 25MHz, 1dB roll off
Maximum Input	1.0Vp-p , 75 Ohms
Insert Loss video	1dB for 0.1Mhz. Gradually increasing to 3.0dB over the frequency range
Video Gain	Y, Pb, Pr
Return Loss video	Greater than 15dB over the frequency range
Common Mode Rejectionvideo	- 55db max.
Power	5V
Distance	300 meters (Max.)
CABLE FOR RJ-45	Twisted Pair CAT 5 (AWG24)
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions W x H x Dmm	7013344
Weight (g)	300
