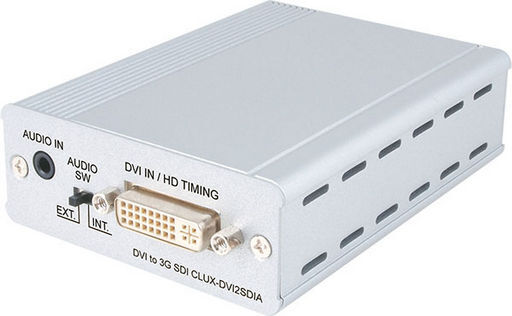

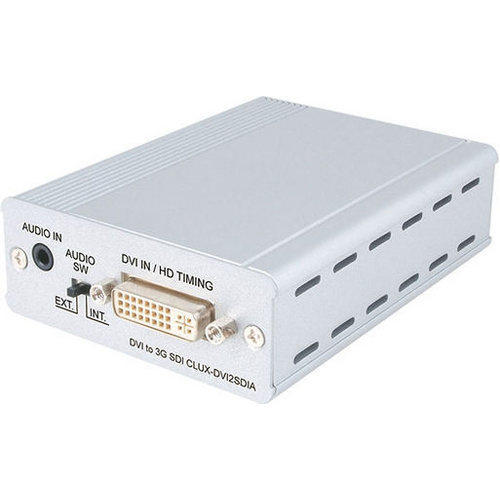

Cypress DVI to 3G-SDI Converter with Audio 1080P SD HD SDI Video Adapter

TRANSMIT ANALOGUE AUDIO & DVI VIDEO ON 3G-SDI

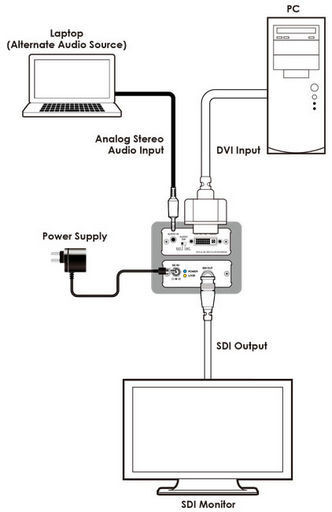

This DVI-to-SDI converter transmits DVI video sources onto SDI displays. It supports input resolutions from 480i up to 1080p at 60Hz. The device converts signals into SD, HD, and 3G-SDI formats at bitrates up to 2.970 Gbit/s. It extends transmission distances up to 100 metres for 3G-SDI, 200 metres for HD-SDI, and 300 metres for SD-SDI. Supports DVI input up to 1080p.

• Displays DVI video sources on SDI monitors.
• Converts inputs to SD-SDI, HD-SDI, and 3G-SDI formats.
• Operates at multiple bitrates up to 2.970 Gbit/s.
• Supports input timings from 480i up to 1080p @ 60Hz.
• Transmits 3G-SDI up to 100m, HD-SDI up to 200m, and SD-SDI up to 300m.
• Dimensions: 79x30x124mm.

DVI signal conversion to SDI signal
Supports DVI input resolutions of:

• 480i@59.94Hz and 576i
• 720p@50/59.94/60Hz and 1080i@50/59.94/60Hz
• 1080p@23.98/24/25/29.97/30/50/59.94/60Hz

Operation at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001Gbps
Supports SDI standards of:

• SMPTE 259M-C@270Mbps
• SMPTE 292M@1.485Gbps and 1.485/1.001Gbps
• SMPTE 424M and SMPTE 425M (Level A and Level B)@of 2.970Gbps and 2.970/1.001Gbps

Converts DVI signals to SDI signals:

• 480i and 576i to SD-SDI/SMPTE 259M-C
• 720p and 1080i to HD-SDI/SMPTE 292M
• 1080p to 3G-SDI/SMPTE 424M and SMPTE 425M (Level A and Level B)

Supports SDI output distance up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI)

"
