Features

• Reliable and Efficient Charging: Empower your at-home workforce with a dependable charging block that keeps devices powered at all times.
• 240W Total Output: High-power charging capability includes a USB Type-C port delivering up to 140W.
• GaN Technology: Enables powerful, efficient, and safe charging with a comprehensive protection mechanism.

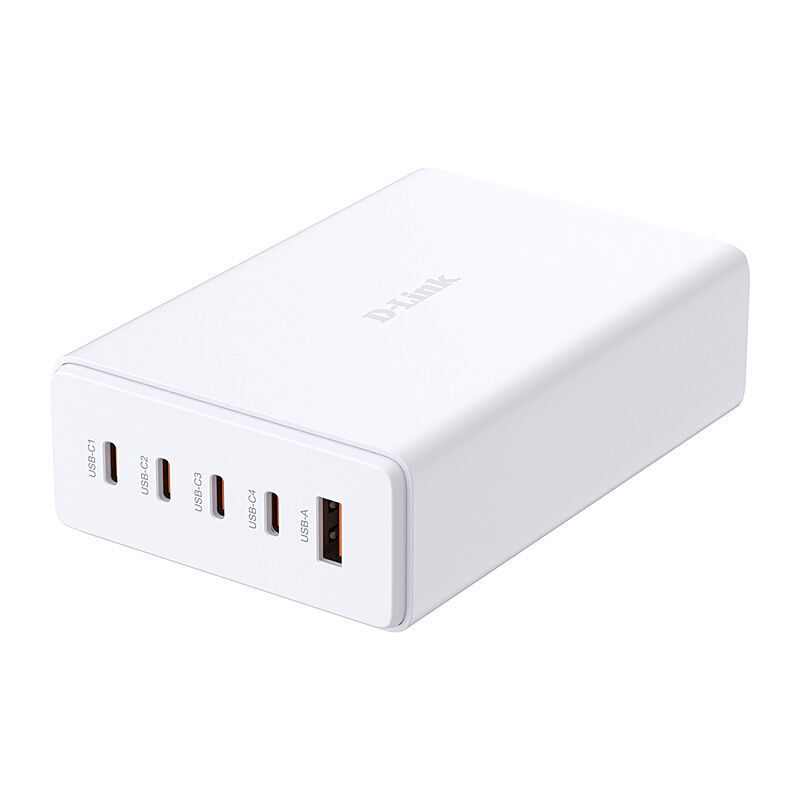

• Five USB-C / USB-A Ports: Features 4 x USB-C and 1 x USB-A ports to charge 5 devices simultaneously.
• Compact Multi-Port Design: Convenient form factor powers multiple devices while minimising heat buildup.
• Versatile Power Output: USB connectors support a wide range of outputs with varying maximum capacities.
• Advanced Protection Features: Includes overcurrent, overvoltage, overtemperature, overcharge, and short-circuit protection.
• Fast Charging Standards: Supports PD 3.1 and QC 4.0 for rapid charging performance.

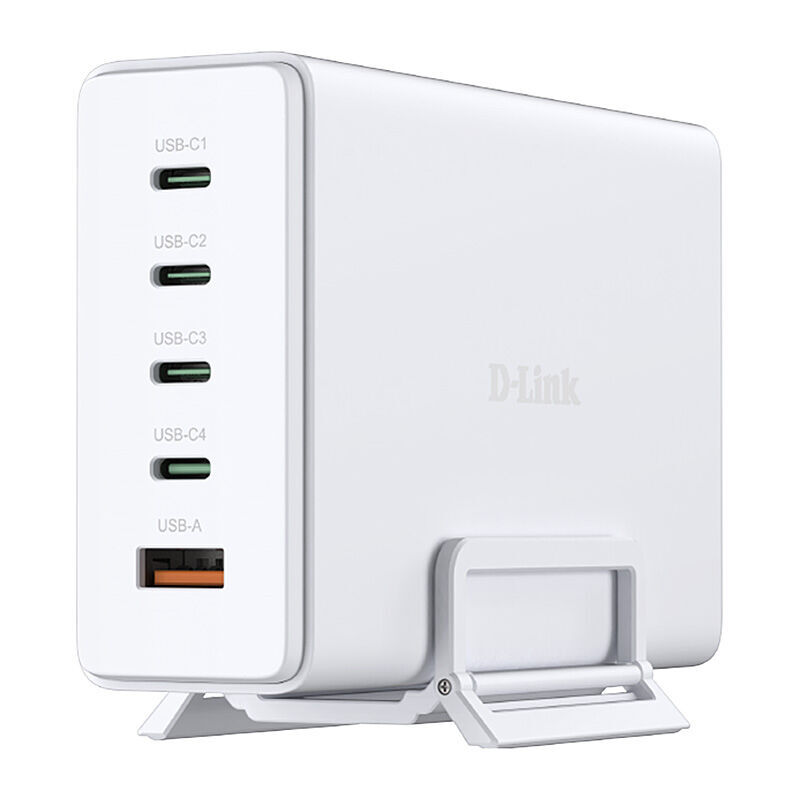

• Compact Stand Holder: Keep your desktop organised with a stable stand for your GaN charger

Specifications

Functionality

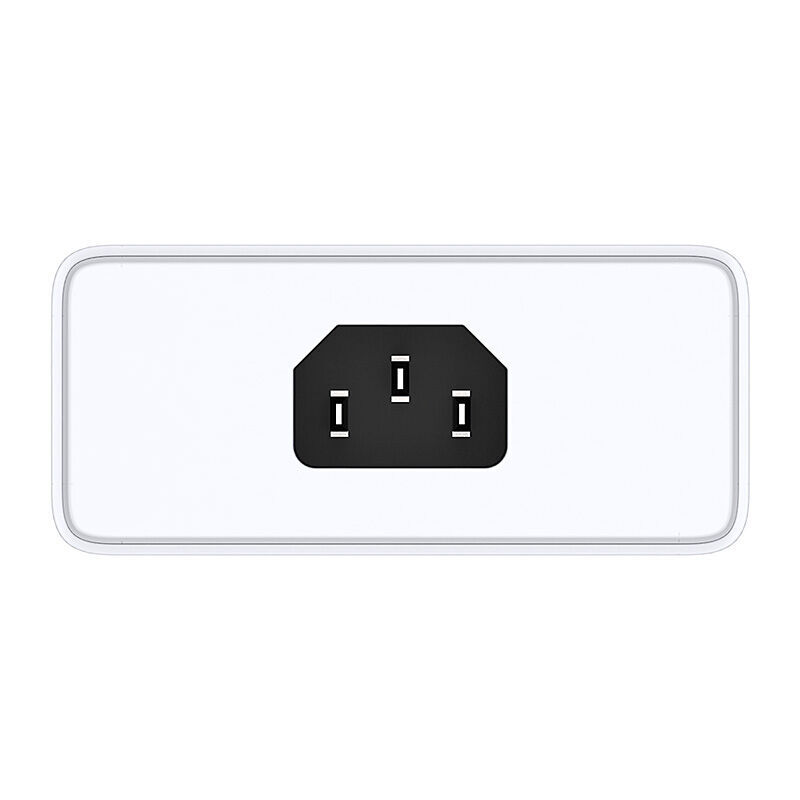

• Power Input
  • 100 - 240V AC (MIN: 100V, MAX: 264V)
  • Rated frequency: 50/60Hz
  • Rated Input Current: Max 3.5A@110-240V input & full load

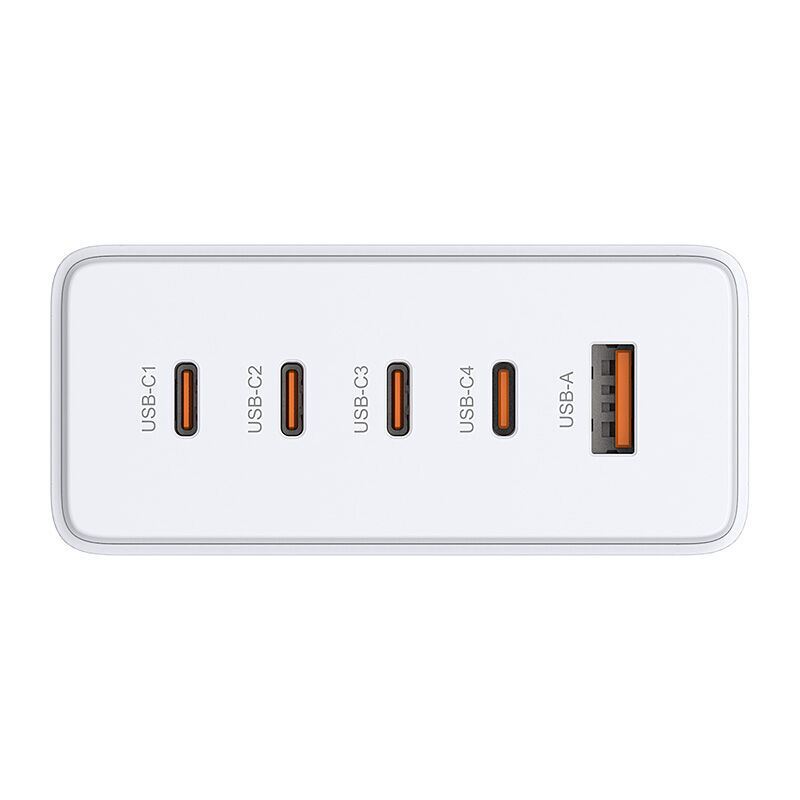

Output Interfaces

• When only one charging port is used
  • USB Type-C1
    • Output: 5.0V@3.0A, 9.0V@3.0A, 12.0V@3.0A, 15.0V@3.0A, 20.0V@5.0A, 28.0V@5.0A | MAX 140W
    • Output protocol: Power Delivery 3.1 (PD 3.1) and Quick Charge 4.0 (QC 4.0)
  • USB Type-C2
    • Output: 5.0V@3.0A, 9.0V@3.0A, 12.0V@3.0A, 15.0V@3.0A, 20.0V@5.0A | MAX 100W
    • Output protocol: Power Delivery 3.1 (PD 3.1) and Quick Charge 4.0 (QC 4.0)
  • USB Type-C3
    • Output: 5.0V@3.0A, 9.0V@3.0A, 12.0V@3.0A, 15.0V@3.0A, 20.0V@5.0A | MAX 100W
    • Output protocol: Power Delivery 3.0 (PD 3.0) and Quick Charge 4.0 (QC 4.0)
  • USB Type-C4
    • Output: 5.0V@3.0A, 9.0V@3.0A, 12.0V@2.5A | MAX 30W
    • Output protocol: Power Delivery 3.0 (PD 3.0) and Quick Charge 4.0 (QC 4.0)
  • USB Type-A
    • Output: 5.0V@3.0A, 9.0V@2.0A, 12.0V@1.5A, 10.0V@2.25A | MAX 22.5W
    • Output protocol: Quick Charge 3.0 (QC 3.0)
• When more than one charging port is used
  • USB Type-C1 & (C2 or C3): 140.0W & 100.0W
  • USB Type-C1 & C4: 140.0W & 30.0W
  • USB Type-C1 & USB Type-A: 140.0W & 22.5W
  • USB Type-C2 & C3: 100.0W & 100.0W
  • USB Type-(C2 or C3) & C4: 100.0W & 30.0W
  • USB Type-(C2 or C3) & USB Type-A: 100.0W & 22.5W
  • USB Type-C4 & USB TYPE-A: Total 15.0W
  • USB Type-C1 & C2 & (C3 or C4): 140.0W & 70.0W & 30.0W
  • USB Type-C1 & C2 & USB TYPE-A: 140.0W & 70.0W & 22.5W
  • USB Type-C1 & C3 & USB TYPE-A: 140.0W & 70.0W & 22.5W
  • USB Type-C1 & C3 & C4: 140.0W & 70.0W & 30.0W
  • USB Type-C1 & (C4 & USB TYPE-A): 140.0W & (Total 15.0W)
  • USB Type-C2 & C3 & Type-C4: 100.0W & 70.0W & 30.0W
  • USB Type-C2 & C3 & USB TYPE-A: 100.0W & 70.0W & 22.5W
  • USB Type-C3 & (C4 & USB TYPE-A): 100.0W & (Total 15.0W)
  • USB Type-C1 & C2 & C3 & C4: 100.0W & 70.0W & 30.0W & 30.0W
  • USB Type-C1 & C2 & C3 & USB TYPE-A: 100.0W & 70.0W & 30.0W & 22.5W
  • USB Type-C1 & C2 & (C4 & USB TYPE-A): 100.0W & 70.0W & (Total 15.0W)
  • USB Type-C2 & C3 & (C4 & USB TYPE-A): 100.0W & 70.0W & (Total 15.0W)
  • USB Type-C1 & C2 & C3 & (C4 & USB TYPE-A): 70.0W & 70.0W & 30.0W & (Total 15.0W)
• Maximum Total Output: 240W

Protection

• Overcurrent Protection
• Overvoltage Protection
• Overcharge Protection
• Overtemperature Protection
• Short Circuits Protection

Physical

• Dimensions 120 x 77 x 33 mm
• Weight 634g
• Power Input MAX 3.5A@100-240V
• Operating Temperature 0°C ~ 25°C
• Storage Temperature -20°C ~ 80°C
• Operating Humidity 10% to 100% non-condensing
• Storage Humidity 30% to 100% non-condensing
• Certifications CE, FCC, RCM

Ordering Information

• DCF-241 240W GaN Charger with USB-A and 4 USB-C ports
• Barcode / UPC 790069479717
