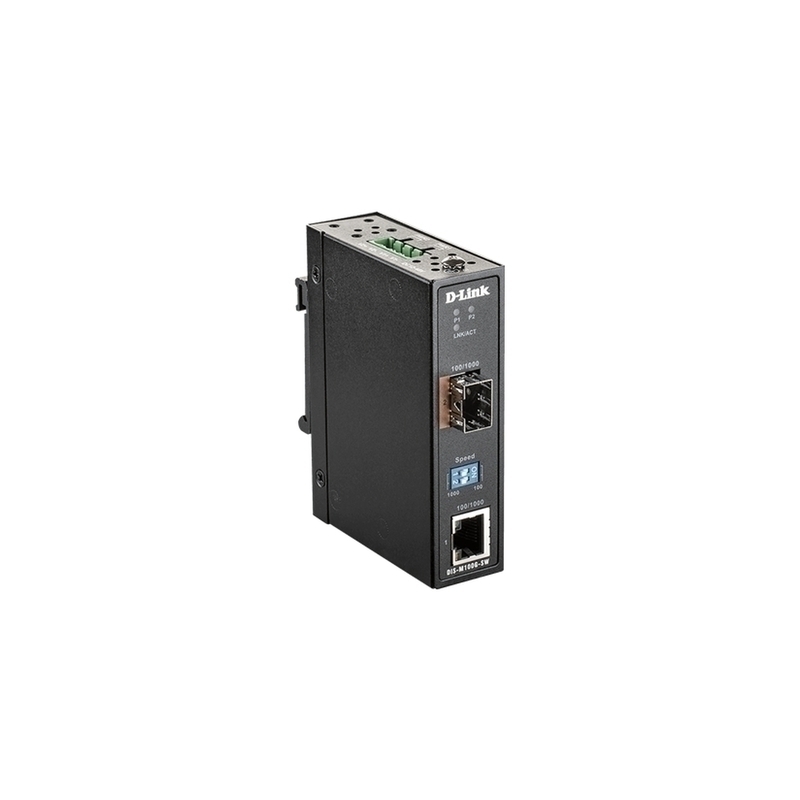

D-Link 2-Port Base-T-SFP Media Converter

D-Link DIS-M100G, 2-Port Industrial Base-T to SFP Media Converter with 1BASE-T and 1 SFP Port

The Industrial 10/100/1000Base-T to SFP Media Converter turns an Ethernet connection into fibre, extending allowing for ultra-fast long-distance connections. The DIS-M100G-SW media converter is housed in a highly resistant IP30-rated metal casing to protect the media converter from harsh environmental conditions. Meanwhile, the fanless design extends the life of the DIS-M100G-SW while also being able to operate in a wide temperature range from -40°C up to 70 °C. For increased flexibility, the DIS-M100G-SW can also be mounted on a DIN rail or conveniently mounted on a solid surface wall.

Product Information

• RJ-45 Ports:

• RJ-45 Speeds: 1Gbps

• Combo Ports (RJ-45 + SFP): 1BASE-T and 1 SFP Port

• SFP (Small Form-Factor Pluggable) Ports : 1

• SFP Speeds: 1G

• PoE++ (60w) or higher available?: No

• Number of PoE Ports: 0

• Extended PoE?: No

• Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 2.976

• Switching Capacity in Gigabits per Second (Gbps): 4

• Web-based GUI: No

• Redundant Power Supply: Yes

• 19 Rack Mountable: No

• DIN-Rail Mountable: Yes

• Stacking Capacity (Physical): No

• Stacking Capacity (Virtual): No

• IPv4 Routing: No

• IPv6 Routing: No

• DHCP (Dynamic Host Configuration Protocol) Server Screening: No

• Ruggedized: Yes

• Operating Temperature: -40 to 70 C

• Unit dimensions: 26.1 x 70 x 95 mm

• Warranty Licence: Lifetime

Specifications
