Overview

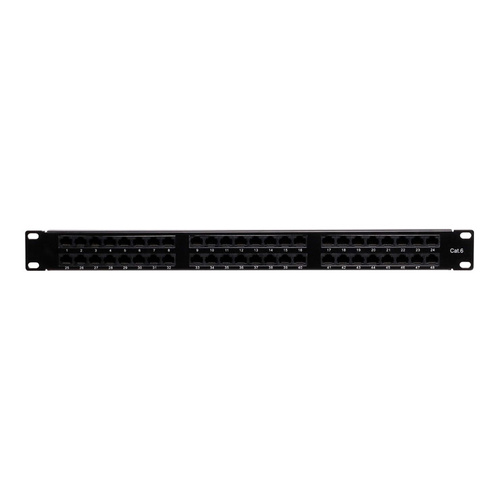

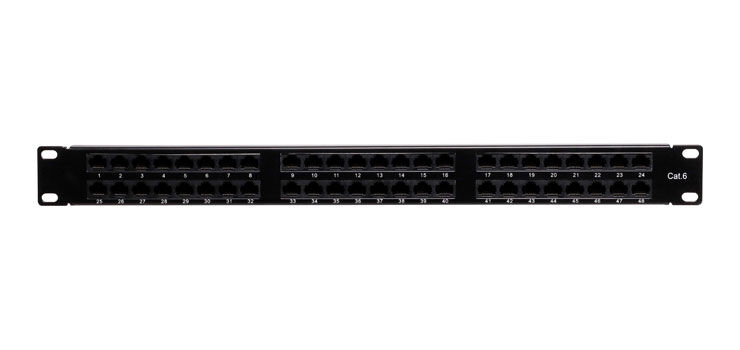

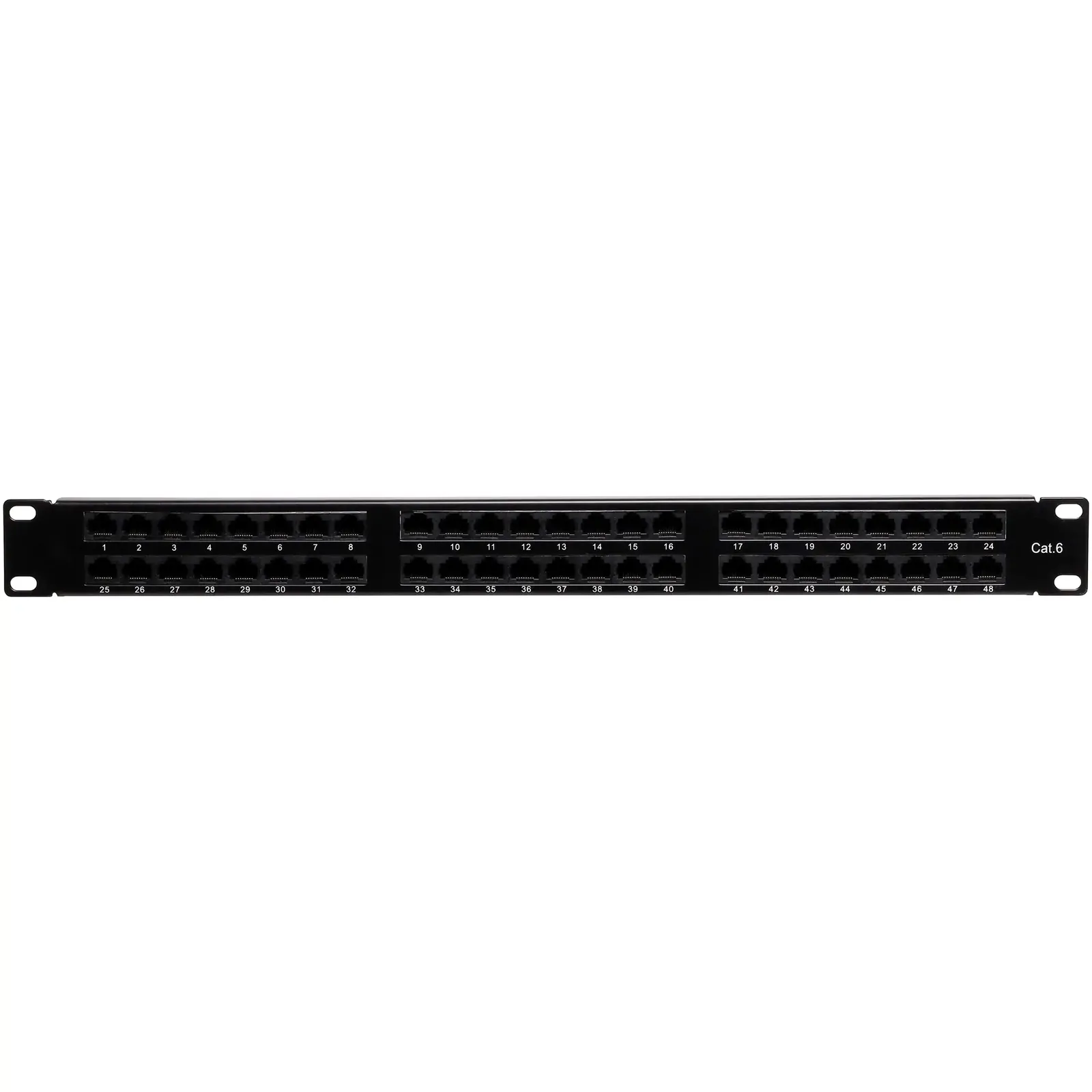

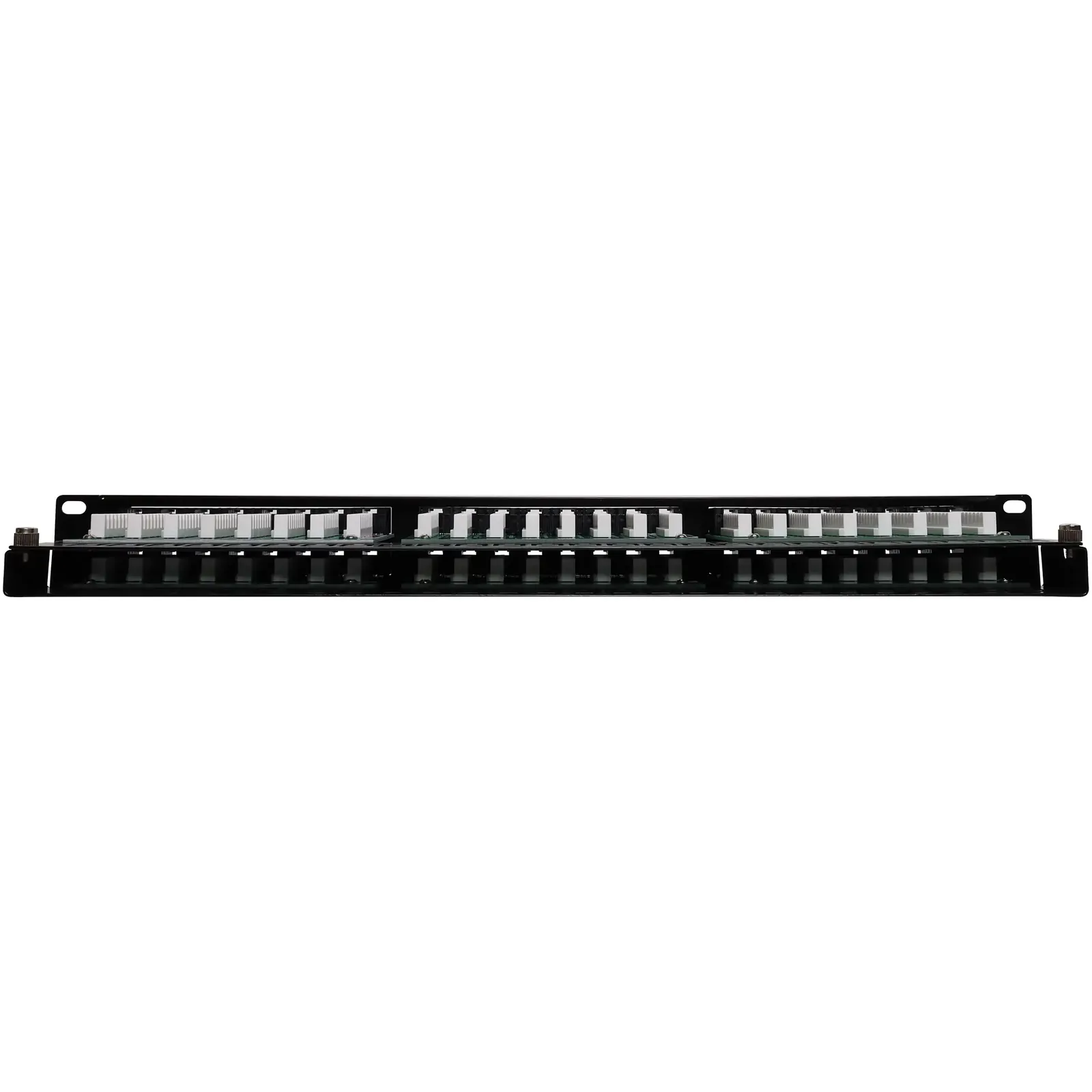

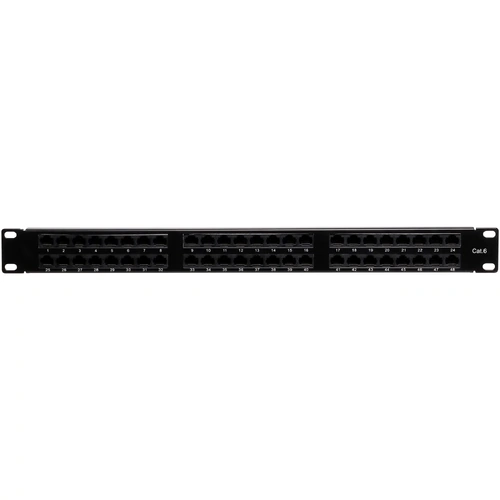

This 1RU panel is fitted with 48 RJ45 punchdown terminals for cable termination. Port numbers fields can be written on and fitted securely behind a clear lexan. Black finish. Includes rear cable support bar.

Specifications

Electrical Specifications

• Voltage Rating: 125V AC RMS
• Current Rating: 1.5A
• Contact Resistance: 100m? (max)
• Insulation Resistance: 1000M? (min @ 500V DC)
• Dielectric Strength: 750V AC RMS @ 60Hz for 1 minute

Environmental Specifications

• Storage Temperature: -40°C ~ +85°C
• Operating Temperature: 0°C ~ +70°C

Mechanical Specifications

• Housing Material: PC
• Panel Frame: Carbon steel, black powder coated
• PCB Material: FR-4 T=1.6mm
• IDC Material: PC
• Contact: Phosphor bronze with nickel plating
• RJ45 Jack Life: 750 times (min)

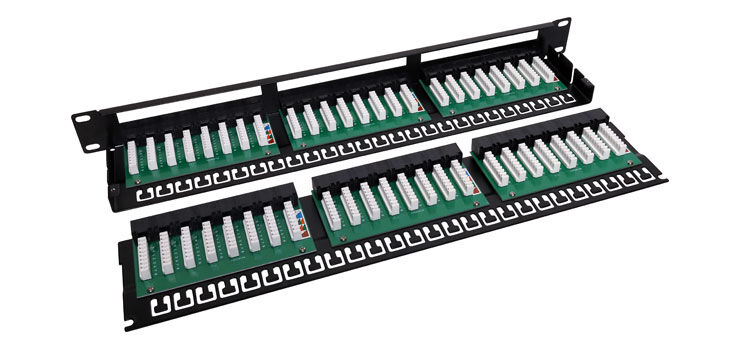

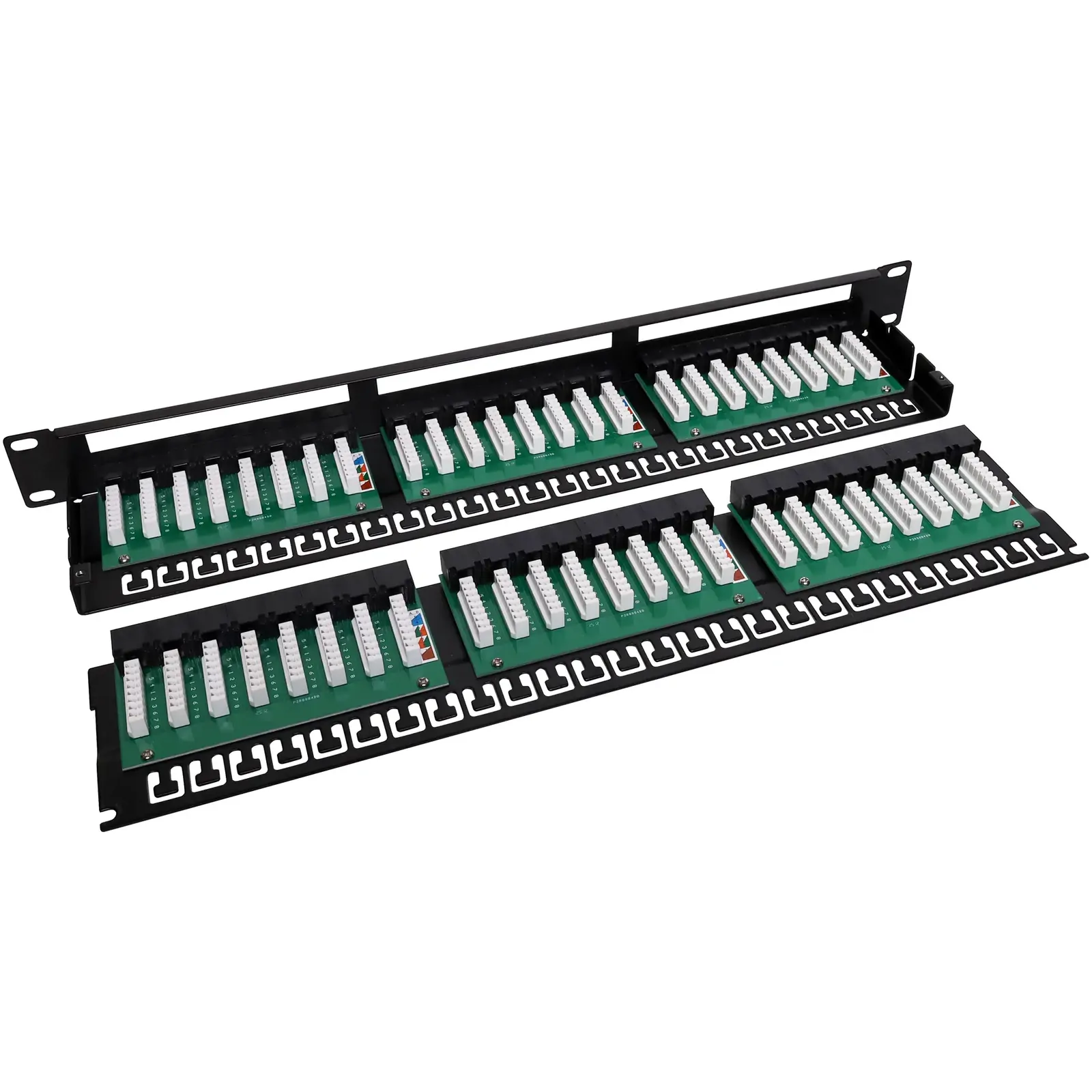

• IDC Life: 200 times (min)
• Wire Gauge: 22-26AWG
