Features

• Light and cost-effective plastic housing
• Ultra-narrow bezel, elegant appearance, plastic base
• Supports multiple signal inputs such as HDMI and VGA
• 144Hz high refresh rate
• 1ms rapid response time

Specifications

Display

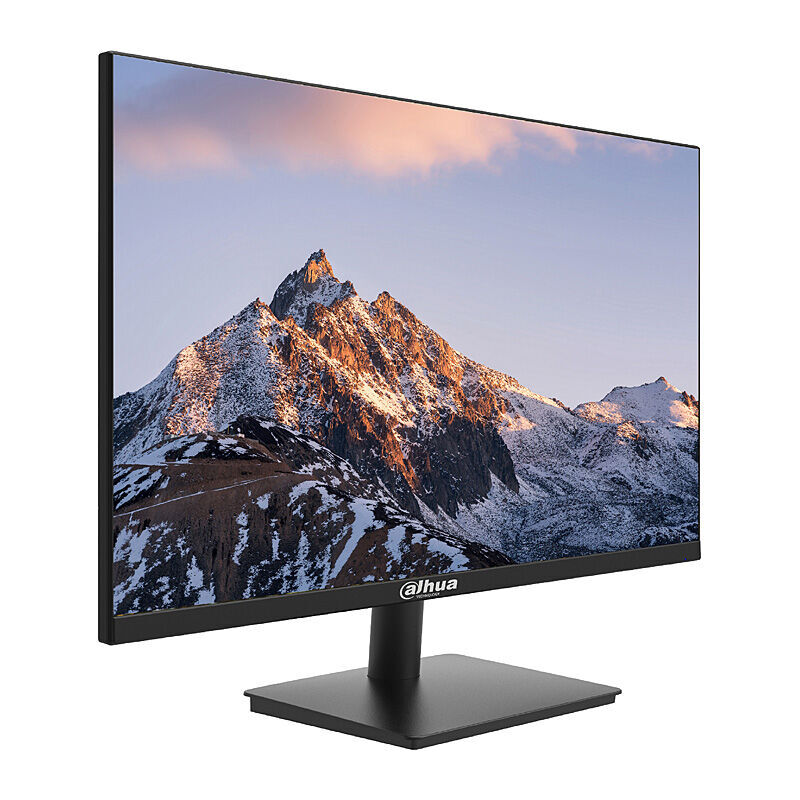

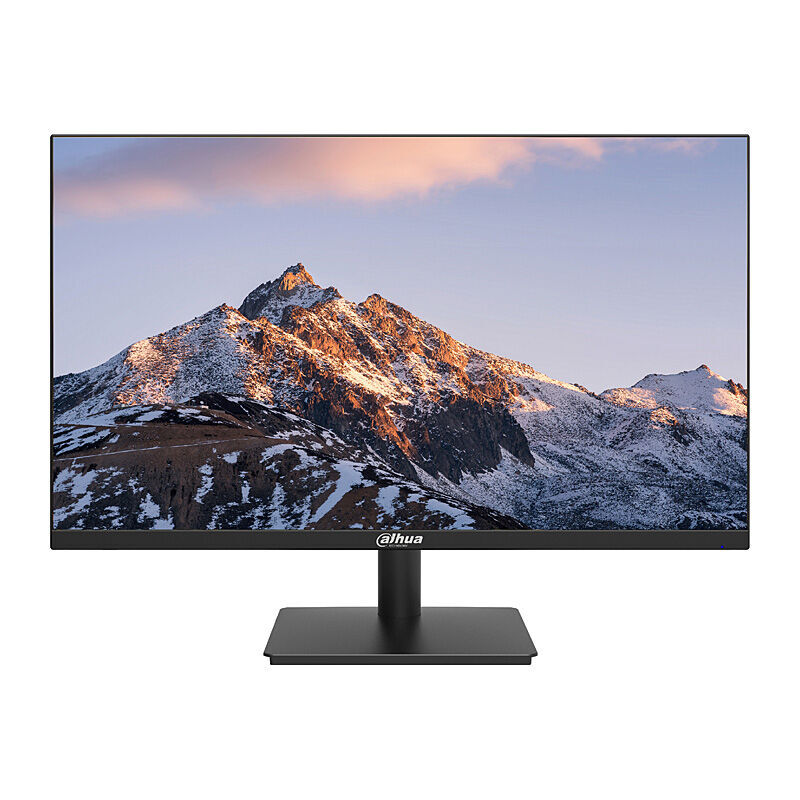

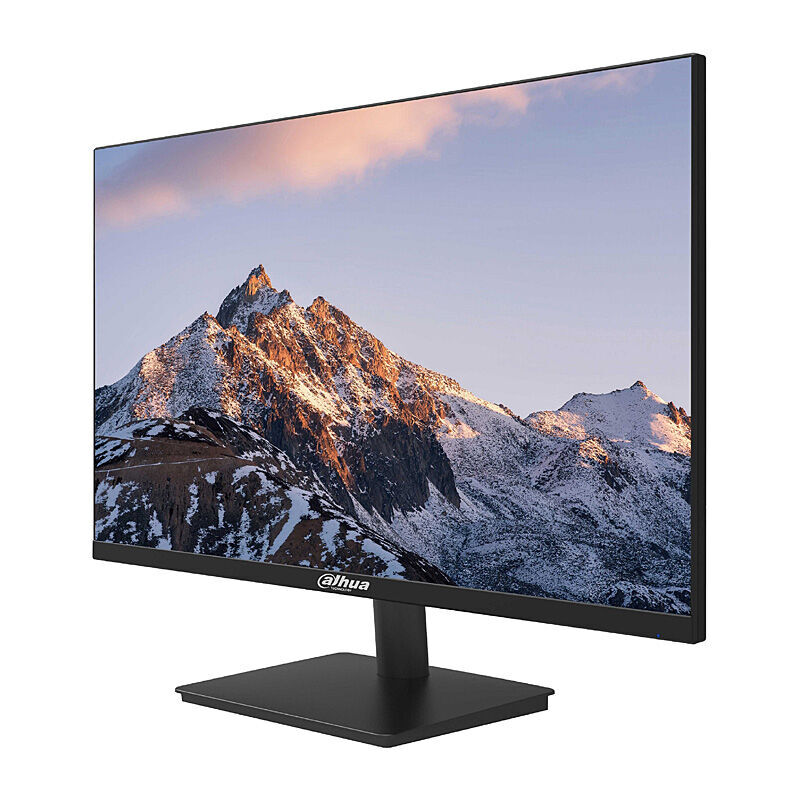

• Model: DHI-LM27-A221Y
• LCD Technology: IPS
• Backlight: ELED
• Screen Size: 27 inch
• Aspect Ratio: 16:9
• Viewing Size: 597.888 (H) × 336.312 (V) mm
• Screen-to-Body Ratio: ≥85%
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.3114 mm × 0.3114 mm
• Pixels Per Inch: 81.59
• Resolution: 1920 (H) × 1080 (V)
• Refresh Rate: 144 Hz
• Display Color: 6 bit + FRC
• Color Gamut: 72% NTSC (typ.)
• Brightness: 250 cd/m² (typ.)
• Contrast Ratio: 1200:1
• Response Time: MPRT 1 ms
• Lifespan: 30,000 hrs
• Operation Hours: 7 × 16 H
• Surface Treatment: Haze 25%, 3H
• Flicker-free Technology: Yes

Device Ports

• Input Port: 1 × VGA (1920 × 1080@75 Hz), 1 × HDMI 1.4 (1920 × 1080@144 Hz)

Power & Environmental Conditions

• Power Supply: 12 VDC, 3 A
• Power Type: Power adapter
• Power Consumption: 20.0 W (basic), 27.1 W (typ.), 28.0 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–85% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: −5° / 20°
• Product Dimensions: 615.1 mm × 364.1 mm × 49.1 mm (24.22" × 14.33" × 1.93") (W × H × D), without wall-mount bracket
• Package Size: 678 mm × 450 mm × 118 mm (26.70" × 17.72" × 4.65") (W × H × D)
• Frame Width: U/L/R/D: 2.8 mm / 2.8 mm / 2.8 mm / 18.2 mm
• Net Weight: 3.4 kg (7.50 lb)
• Gross Weight: 4.7 kg (10.36 lb)
• Casing Color: Black
• Control Mode: Joystick
• Status Indicator Light: Yes
• Wall Mount VESA: 100 mm × 100 mm (3.94" × 3.94")

Accessory

• Power adapter
• Base
• HDMI cable
• User's manual (QR code)
• Energy efficiency label
• QSG
• Legal and regulatory information
• Etc.

Optional Accessory

• Wall mount

Certification

• Certifications: CE EMC, CE LVD, CE ERP
