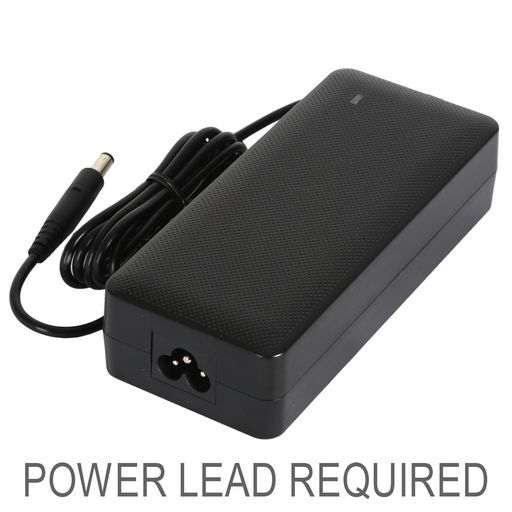

48 VOLT 2.0A MAINS POWER PACK 96W

48Vdc 2000mA Switch Mode Power Supply - Requires AC Lead ACL112

REQUIRES C5 POWER AC LEAD

48V power supply suitable for Power over Ethernet ( PoE ) applications.

Features

  • 2.1mm plug
  • 1.2m lead length
  • Short circuit protection
  • Over current protection
  • Over voltage protection
  • Output 48V 2.0A
  • Max. 96W output
  • Clover-Leaf C6 Socket
  • Requires IEC C5 power lead
  • Australia approval

Specifications

  • Input Voltage: 100 - 264VAC
  • Output voltage: 48VDC @ 2A
  • Input Frequency: 47Hz to 63Hz
  • Power output: 96W Max.
  • Working temperature: 0°C to 40°C
  • Working humidity: 25% to 90% relative humidity (Non-condensing)
  • Efficiency: 85% min. at full load
  • Ripple/noise (mVpp): 2%
  • Dimension: 133x57x31mm
  • Plug diameter: 2.1mm
  • Current: 2000mA
  • Plug: 'R' Plug
  • Type: Switch Mode
  • Amps: 2A
  • Volts: 48V
  • AC Lead: IEC C5 Clover Leaf is required

(SMP48V-2A-21R)

SKU SMP48V-2A-21R
Model # SMP48V-2A-21R
Brand Daichi
