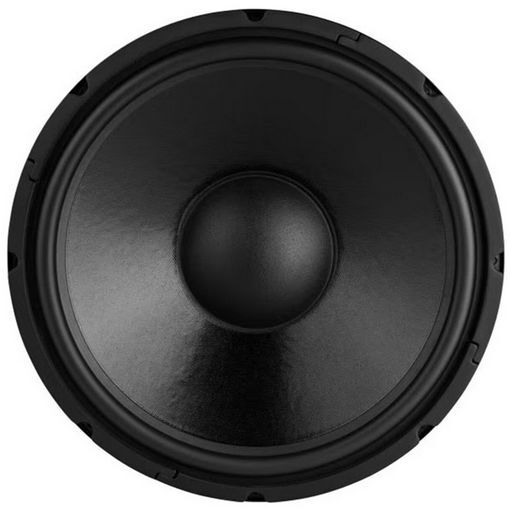

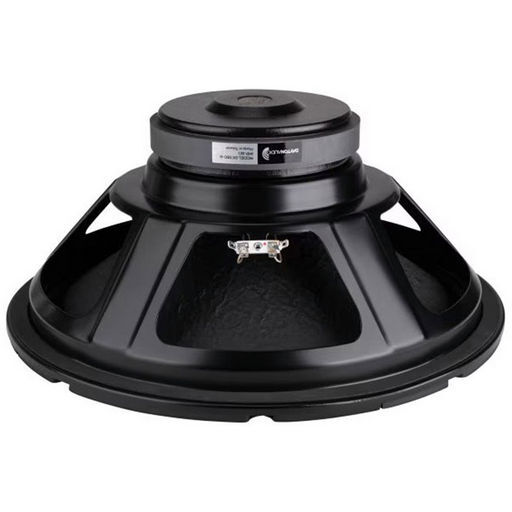

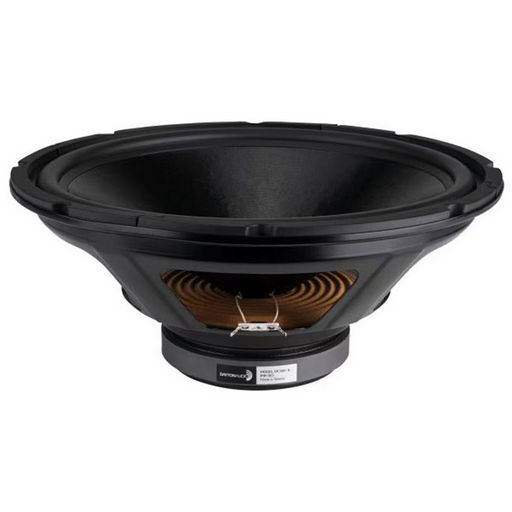

CLASSIC WOOFER - DAYTON AUDIO

The Dayton Audio Classic Series 15" woofer features a non-pressed treated paper cone that allows for smooth frequency response, while the high-temperature aluminium voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, a treated cloth dust cap, and an extended bump plate. A Qts of 0.3 allows the DC380-8 to work well in both sealed and ported speaker enclosures. This driver is ideal for use in large format two-way and classic three-way loudspeaker designs.

• 15" woofer with treated non-pressed paper cone and rubber surround.
• Treated paper cone provides smooth response and low energy storage.
• Aluminium former, vented pole piece for high power handling.
• Large diameter flat spider and healthy Xmax for clean bass.
• Smooth frequency response and extended bass performance.

Technical Specification

•  Mechanical compliance of the suspension :0.39mm/N
• Coil:  51mmØ
• Colour: Black
• Depth: 162mm
• Diameter: 385mmØ
• Frequency: 18.8Hz
• Hole: 349mmØ
• Impedance: 8Ω Re 6.4Ω
• Inch:15
• Le: 3.09mH
• Manufacturer: Dayton Audio
• Mms: 182.9g
• Power: 100W
• Power (RMS): 51-100 Watt
• Prms: 100W
• Total Q Factor: 0.34
•  Mechanical Quality Factor: 2.87
•  Total Quality Facytor:0.3
•  Resistance:  6.4Ω
• Effective Diaphram Area:  834.7cm²
• Senstivity Rating: 91.8dB
• Series:  Classic
• Size: 15'
• Type: Woofer
• Volume Acoustic Suspension:391.4L
• Zn: 8Ω
