Vinyl records have become all the rage again but you may encounter a couple of issues which are addressed by this unit:
Firstly, vinyl records are manufactured in a way that requires frequency equalisation of the turntable output to make them sound right. Secondly, if your amplifier doesn’t have a phono input then you won’t be able to listen to your records.

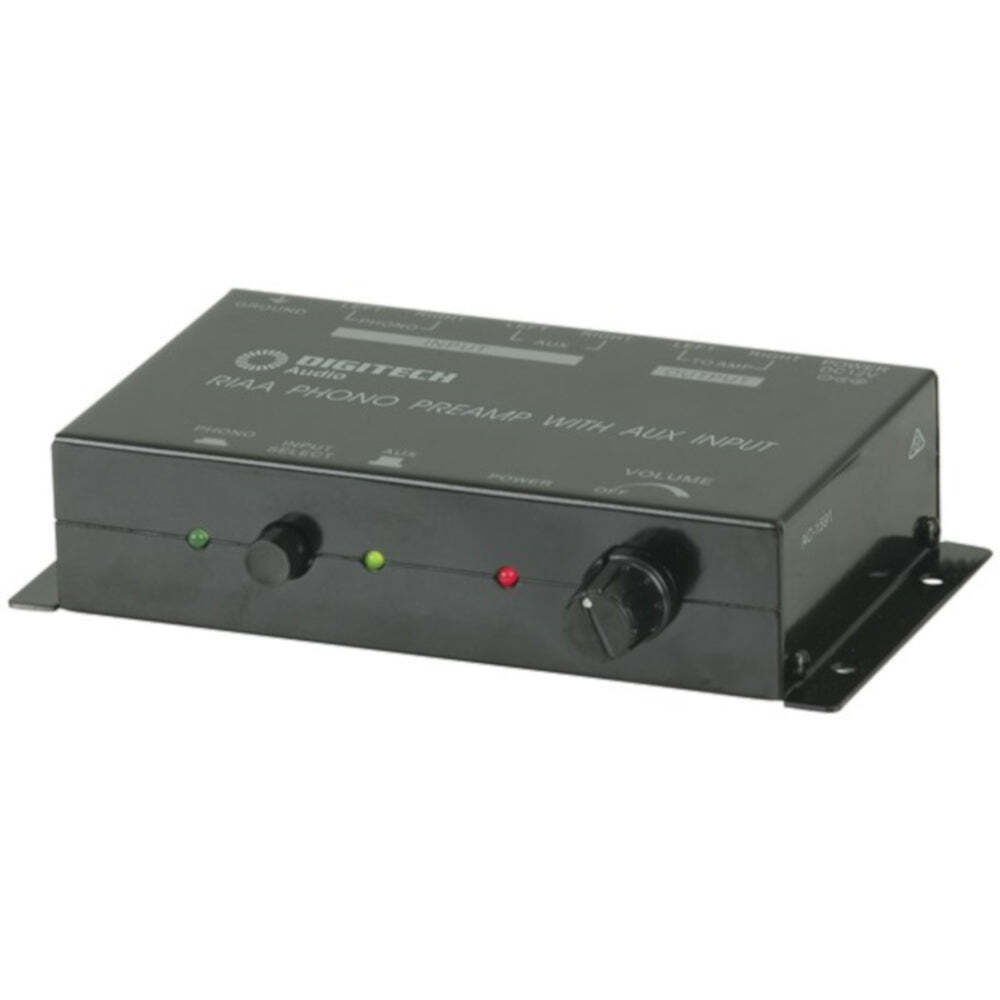

There is a front panel switch to choose between input devices and a volume control on the front panel to adjust the output level as necessary as your turntables' cartridge may provide a lower or higher output than expected. All connections are made with the popular RCA connectors. Power is provided by an included mains adaptor.

Features:

• Volume control
• Stereo RCA output
• Function can be set to mix or IND
• Screw mount holes
• Power: 12VDC at 500mA
• Input Impedance : 47KO
• Output Impedance : 100O
• Phono Amplitude Gain : 40dB (@ 1KHz)
• Auxiliary Amplitude Gain : 6 dB
• Maximum Input : 50mVpp
• Output Level : 5Vpp
• Frequency Response : 20 Hz to 20KHz
• Signal to Noise Ratio : 70dB

Specifications
