Description

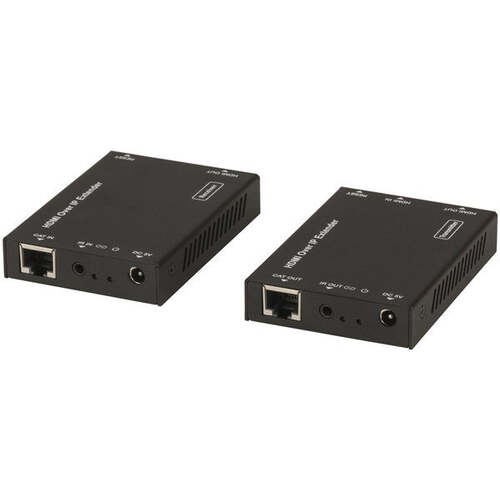

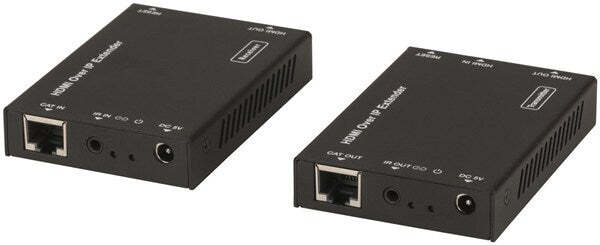

Send high definition AV signals to a screen in another room up to 150m away using a Cat5e/6 cable through a common router or Ethernet switch. A sender and receiver with power supplies are included, and additional receivers are available separately (AC1753) to share the same AV signal to additional screens. Setup is straightforward using the TCP/IP protocol which is used for computer networking and no software is required. Simply connect the receiver and sender into your gigabit network using Cat5e or Cat6 leads (not included) or directly with one long Cat5e or Cat6 cable (not included). Features an HDMI loop output, is compatible up to HDMI 1.3 with up to 6.75Gbps bandwidth, and compliant to HDCP 1.4b. It even allows you to use your infrared remote control from the receiving point, so you can control the device you’re sending video from! What’s more is the infrared extension too, so you can take your remote control with you and still control the remote device. Includes infrared emitter, infrared receiver and two mains power adaptors.



Features:

. 100m (Cat5e), 150m (Cat6) Transmission Distance

. Web Based Interface Control

. HDMI Pass-Through

. Multicast Receiver Support

. Infrared Remote Control Extender

Specifications

Digital Audio Format : LPCM
Maximum Signal Frequency : 48.0kHz
Maximum Channel Support : 2.0ch
Dimension details : Sender Dimensions
Width : 61.0mm
Height : 17.0mm
Depth : 86.0mm
Weight : 155.0g
PSU Powers : Transmitter
DC Plugpack Voltage : 5.0V, 5.0V
DC Current Draw : 1.0A, 1.0A
Item Connection : Barrel Plug
Suitable PSU Included : true
PSU Powers : Receiver
DC Plugpack Voltage : 5.0V
DC Current Draw : 1.0A
Item Connection : Barrel Plug
Suitable PSU Included : true
Resolution Frequency : 60.0Hz, 60.0Hz
HDMI Version : 1.3
HDMI Maximum Data Rate : 6.75Gb/s, 6.75Gb/s
HDMI Maximum Colour Depth : 8.0b
HDMI Colour Space Compatibility : RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDCP Version : 1.4b
Maximum Horizontal Resolution : 1200.0Pixel
Maximum Vertical Resolution : 1920.0Pixel
Compliant with : H.264 and H.265 Compression
Switcher/Converter Type : Balun Extender
Input type : HDMI
Number of inputs : 1.0pc
Dimensions details : Receiver Dimensions
Width : 86.0mm
Height : 17.0mm
Depth : 61.0mm
Weight : 150.0g
Signal Type : HDMI
Input Connection : HDMI Type-A
Connecting Cable : Cat5e UTP, Cat6 UTP
Connecting Cable Termination : RJ45
Maximum Distance Between Baluns (cat5e) : 100.0m, 100.0m
Maximum Distance Between Baluns (cat6) : 150.0m, 150.0m
Output Connection : HDMI Type-A
IR Signal Fequency Compatibility : 20.0kHz, 60.0kHz

(AC1752)

SKU AC1752
Model # AC1752
Barcode # 9319236759547
Brand DIGITECH
Assembled Height 0.017m
Assembled Width 0.086m
