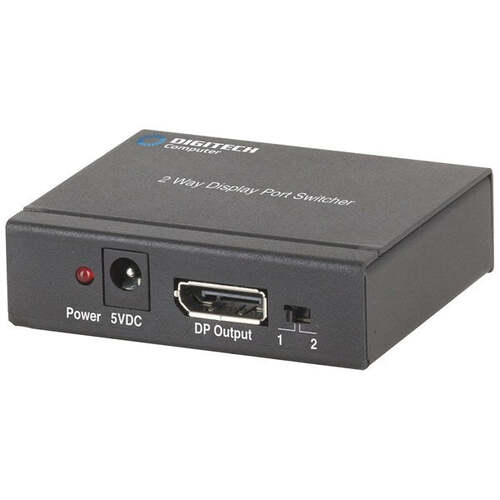

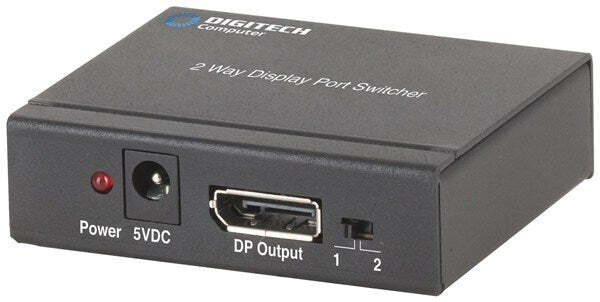

With the flick of a switch this product allows you to select from one of two DisplayPort sources to
output to a single computer monitor, TV or projector. Suitable for when you want the flexibility of
switching between two audio visual sources for the one display device. DisplayPort can be used
to transmit audio and video simultaneously, but each one is optional and can be transmitted without the other. HDMI and DVI output achievable with use of a passive adaptor or Mini DisplayPort with the use of an additional converter cable. Typically suited for small-scale use in the home, office, shop fronts or classrooms where two sources need to be switched. Compliant with VESA DisplayPort standard link rates of 1.62, 2.7 and 5.4Gbps. Switching is operated manually on the front of the unit. Includes a mains power adaptor.

Features:

DisplayPort: V1.2a
Audio: up to 7.1 Channel
Compliant: DP++, HDCP
Power Consumption: 3W


Specifications

Length : 71.00000000mm
Width : 61.00000000mm
Height : 21.00000000mm
DC Plugpack Voltage : 5.00000000V
DC Current Draw : 1.00000000A
Item Connection : Barrel Plug
Suitable PSU Included : true
Maximum Horizontal Resolution : 4096.00000000Pixel
Maximum Vertical Resolution : 2160.00000000Pixel
Switcher/Converter Type : Manual Switcher
Input type : Digital Video
Input Connection : Display Port
Number of inputs : 2.00000000pc
Output Type : Digital Video
Output Connection : Display Port
Number of Outputs : 1.00000000pc
Power Requirement : External Power Required

(AC1757)

SKU AC1757
Model # AC1757
Brand DIGITECH
