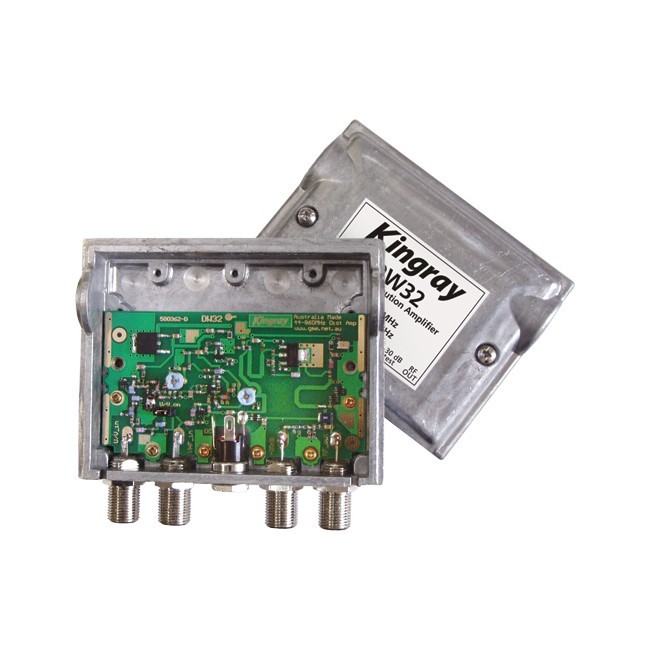

DW32 32DB RF DISTRIBUTION AMPLIFIER - KINGRAY

Terrestrial Distribution Amplifier with 32dB Gain, Separate VHF & UHF Inputs or Combined Input, Frequency Range of 44-230 MHz & 520-820 MHz. It can be either locally or remotely powered. A Kingray PSK18S power supply is included.Kingray’s DA and DW series distribution amplifiers have been designed to suit digital television signals. The technology used is hybrid bipolar and GaAs, which allows for a greater output capacity, whilst having a lower noise figure. The amplifier includes midstage gain controls,a number of flexible powering options and are built in a fully shielded die-cast housing.The DW32 distribution amplifier has a separate inputs for VHF and UHF antennas & a combination VHF/UHF antenna can be used via the UHF input. It is supplied with a PSK18S power supply.

Features

  • Frequency Range 44-230 MHz & 520-820 MHz
  • 32dB Maximum Gain
  • Individual 10dB Gain Control for both VHF & UHF
  • Separate VHF & UHF Inputs or Combined Input
  • Local or Remote Powering Options
  • Built in Slope
  • -30dB Test Point
  • High Output Figure of 112dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Power Consumption: 150mA
  • Operating Voltage: 12-18V DC
  • Australian Made

(DW32)

SKU DW32
Model # DW32
Barcode # 9319493157872
Brand Kingray
Unit Of Measure each
Assembled Width 0.528m
