Overview

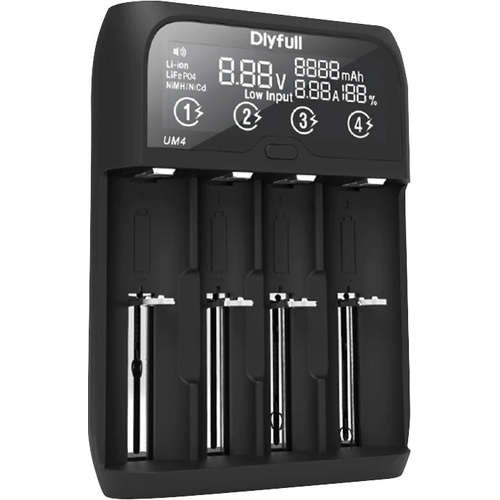

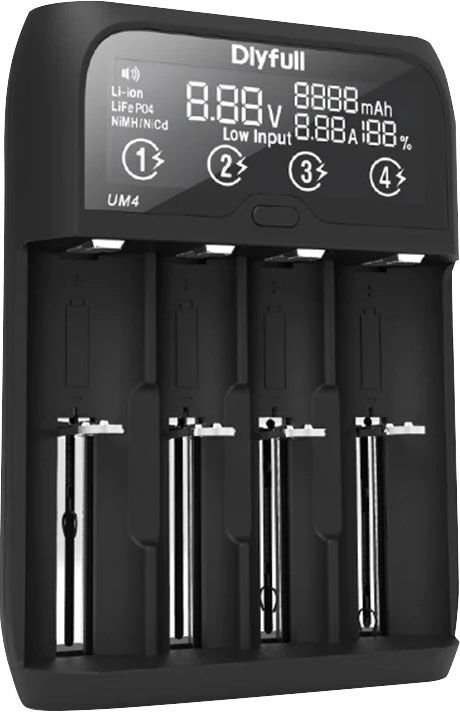

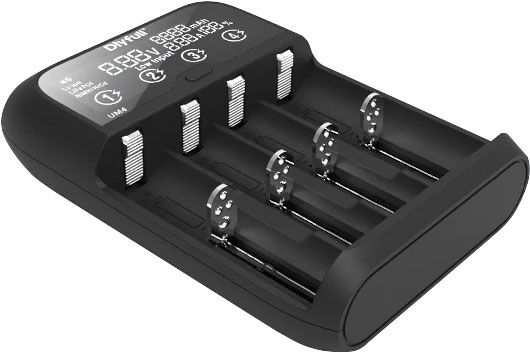

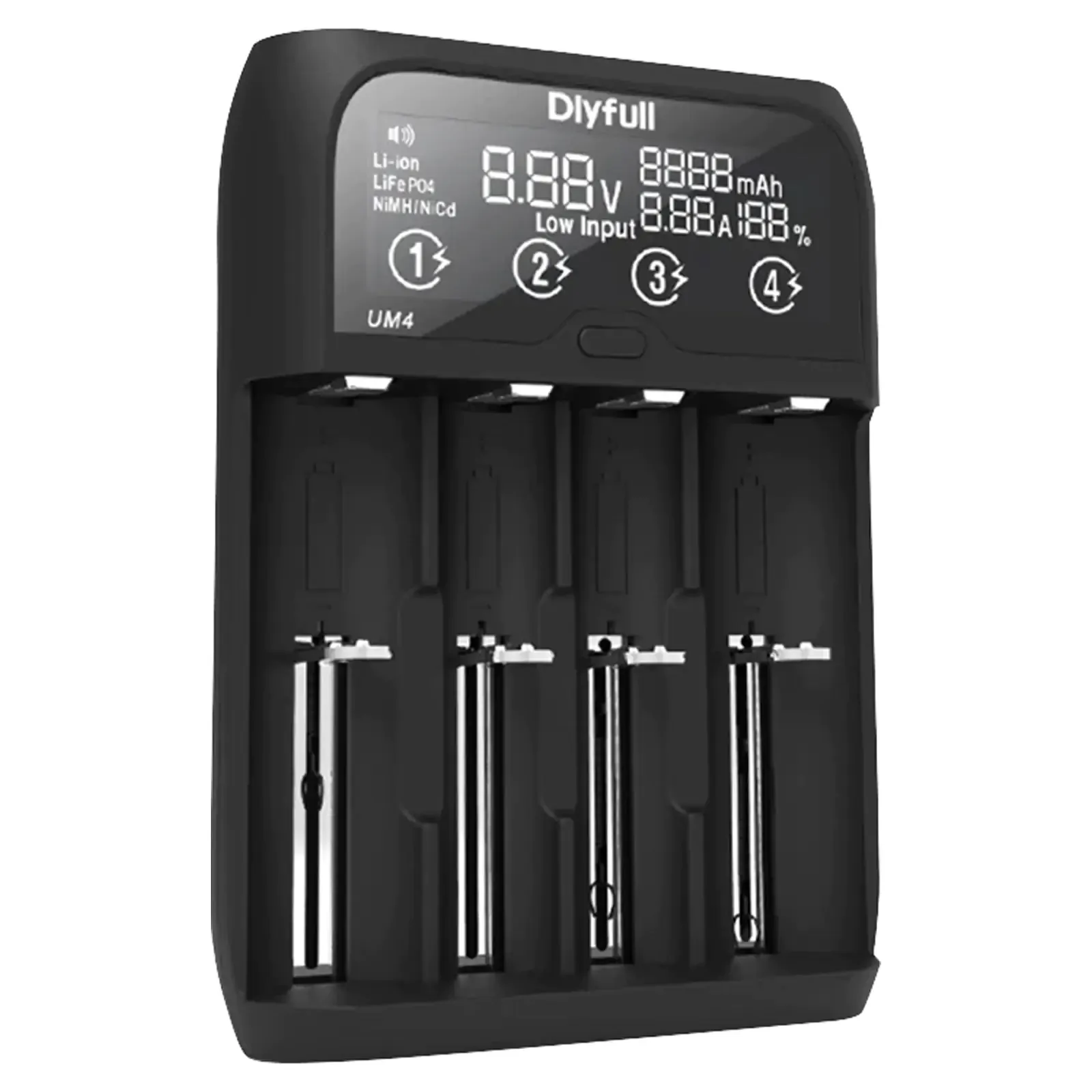

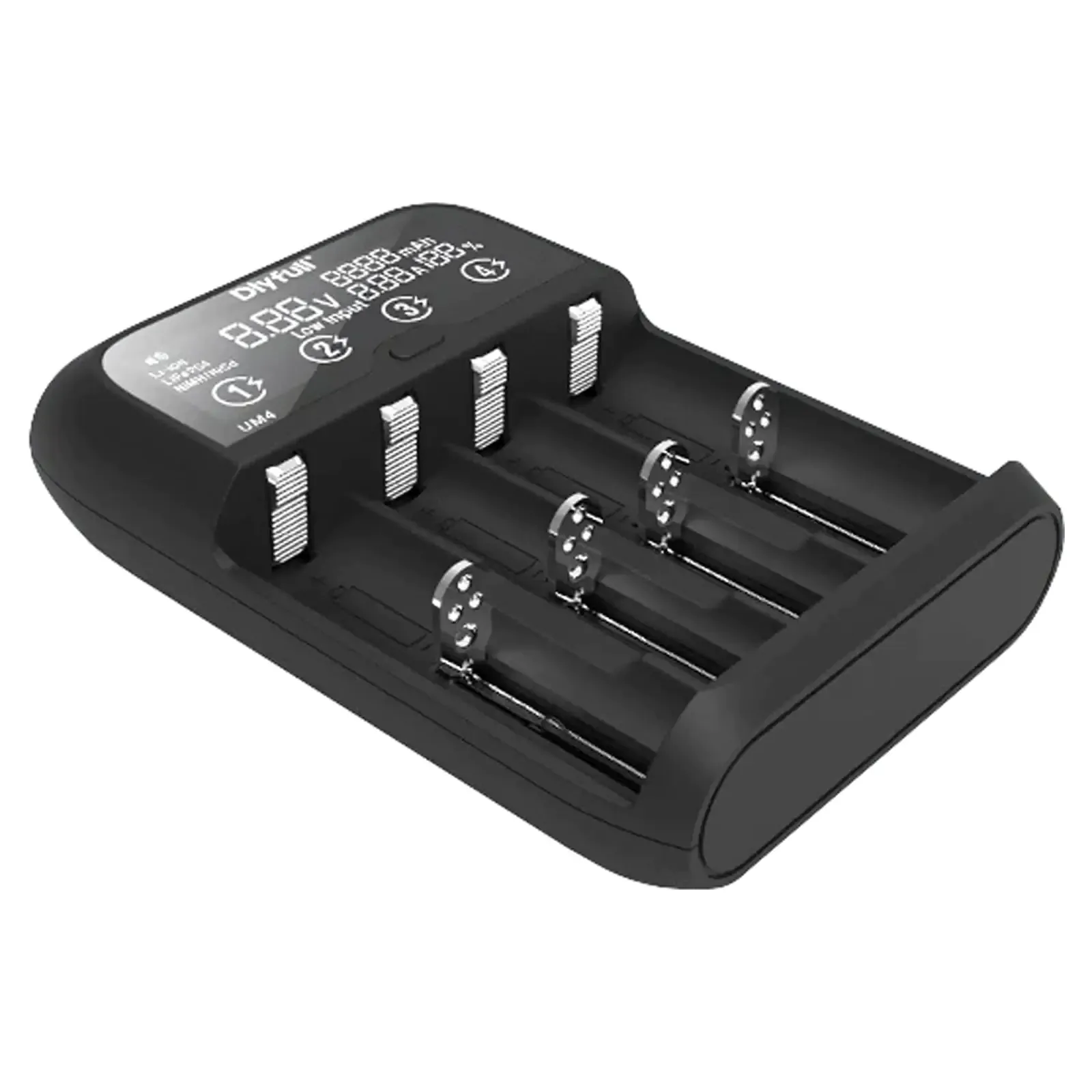

This intelligent charger has four independent charging slots to charge any combination of Ni-MH, Ni-Cd, Li-ion, or LiFePO4 cells at the same time. The microprocessor monitors each battery and provides a safe and effective charge using precise Pulse Width Modulation (PWM) technology. A single Li-ion or LiFePO4 cell can also be fast charged at up to 2A. The high contrast LCD screen provides real-time battery monitoring, including charging current (A), charging capacity (mAh), voltage (V) and battery power (%). Features include alarm and error messages for bad batteries, reverse polarity protection, short circuit, over-charge, and over-temperature. Power comes from an available USB port or USB wall charger using the supplied USB Type-C power cable.
Suits a huge array of battery types:
3.6-3.7V Li-ion, 3.2V LiFePO4: 10340, 10440, 14500, 16340 (RCR23A), 17335, 17500, 17650, 17670, 18490, 18500, 18650, 20700, 21700, 22650, 26500, 26650 etc.
1.2V Ni-MH/Cd: A, AA, AAA, AAAA, C, SC

Features

• Suits Ni-MH, N-Cd, Li-ion & LiFePO4
• Intelligent fast charging up to 2A
• Independent charging slots
• LCD screen

Specifications

Battery Charger

• Charger Output Voltage: 4.2V, 3.65V, 1.48V
• Reverse Polarity Protection: Yes
• Number of Cells: 4pc
• Charger Output Current: 2A, 1A, 650mA, 500mA
• Controller Type: PWM
• Type of Batteries: Nickel Metal Hydride (Ni-MH), Nickel Cadmium (Ni-Cad), Lithium Ion, Lithium Ferrous Phosphate (LiFePO4)
• Multi-cell Charging Conditions: Independent Charge Control for Each Battery Slot
• Cell Type(s) Charged: AA, AAA, Sub-C, C, 10440, 14500, 16340, 17335, 17500, 17670, 18350, 18650, 22650, 26500, 26650, 14650, 18500, 18700, 20700, 21700, 22700

USB Powered

• USB Voltage Input: 5V
• USB Item Connection: Type-C
• USB Lead included: Yes
• USB Input Current: 2A

General

• Dimensions: 129H x 96W x 32Dmm
• Weight: 170g

  *Specifications are subject to change without notice.
