The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using a conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.
Features
- 1/2.8" Sony 2.43 Mega Pixels low illumination CMOS Sensor
- H.264 encoding
- 1080P (Full HD) 1920×1080 resolution
- Conforms to ONVIF (Open Network Video Interface Forum) protocols, Profile-S/G
- Supports Power Over Ethernet (PoE)

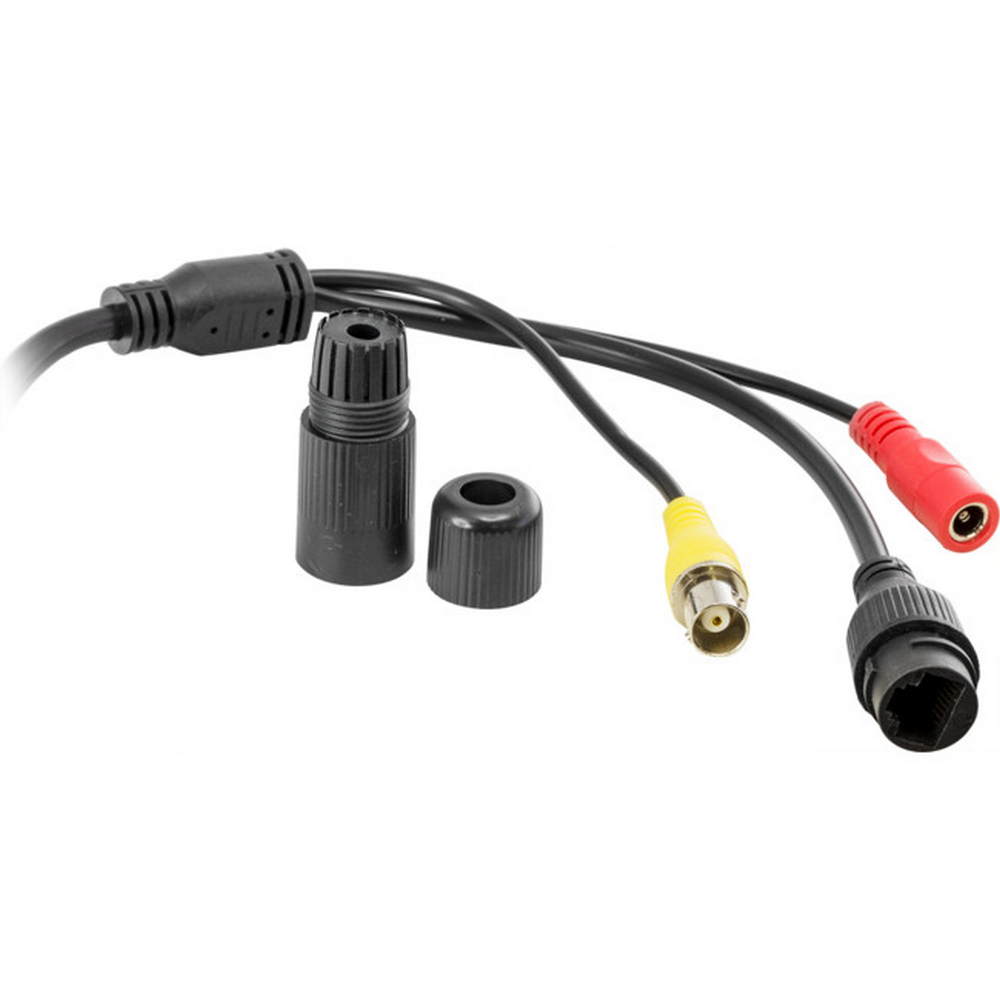

- Analog BNC output for installers
- 3.6mm fixed lens provides with approx 83° view
- 10-15m IR distance / 1x IRIII IR Leds
- IP65
- DC12V with PoE
Specifications
Model | DMW15IPW | |
Camera | Sensor | 1/2.8" Sony CMOS |
Pixel Count | 2.43MP | |
DSP | Hi3516C | |
Resolution | 1920x1080 | |
Lens | 3.6mm (2MP) | |
Lens type (fixed/varifocal:auto/manual) |
Fixed | |
Day/Night ICR (Infrared Cutfilter Removal) |
Auto/B&W/Colour/EXT ICR switching | |
Approx view angle (Horiz) | approx 83° | |
Minimum illumination | 0 Lux/F1.4 (IR On) | |
Electronic shutter | Auto/Manual (1/25 ~ 1/10000) |
|
Encoding | Stream 1 resolution | Up to PAL: 1080P/25fps NTSC: 1080P/30fps |
Stream 1 Encoding | h.264/MJPEG | |
Stream 1 Bitrate | 16~8000kbps CBR/ VBR |
|
Stream 2 resolution | Up to VGA (640*480) | |
Stream 2 Encoding | h.264/MJPEG | |
Stream 2 Bitrate | 16 ~ 8000kbps CBR/VBR |
|
Features | Analogue output | Yes (BNC, CVBS) |
IP Rating | IP65 | |
IR LEDs | 1x IR Array Leds | |
IR Range | 10-15m | |
Adjustable IR Brightness | NO | |
WDR ATR/D-WDR |
DWDR | |
Noise Reduction (none/2D-NR/3D-NR) |
3D-NR | |
Image adjustment (Brightness/Colour/Sharpness) |
Brightness/Sharpness | |
Image flip(H/V/H+V) | H/V/H+V | |
Privacy zones | 4 | |
Motion detection zones | 1 | |
Password protection | Yes | |
OSD (Channel/Timestamp) | Yes (Channel/Timestamp) | |
Alarm | Video loss/Network loss/Tamper | |
Power over Ethernet | Yes(IEEE 802.3 AF STANDARD) | |
Networking | ONVIF Compliance | Profile S (v2.2) |
Protocols supported | TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPnP, SMTP | |
Network interface | RJ45 10M/100M | |
Remote viewing | Web-browser/Apple/Android | |
General | Operating Conditions | –10°~55°C/0%~90%RH |
Power Supply | 12V DC/PoE | |
Power Consumption | <6W | |
Dimensions (DxH) | 95x90mm | |
Weight | 0.4kg |
(DMM15IPW)
12 Months
SKU | DMM15IPW |
Model # | W6138-1IHBB86 |
Barcode # | 9328202024480 |
Brand | DOSS |
Unit Of Measure | Each |
Assembled Width | 0.475m |
