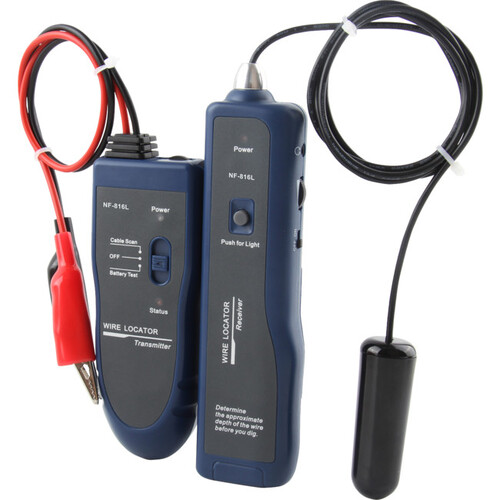

FEATURES

• Pinpoint wires for Pet Fence/Electrical Wires, Metal Pipes, Coax Cable, etc. underground or in-wall, or detect and trace the breaking point of the wire
• Wire tracer range up to 60cm (2 feet) deep and 600M (2000 feet) in length, to locate the alarm, sound & computer wires, measure wire depth, and pinpoint drill sites.
• Sound level adjustment to improve efficiency.
• A pair of earphones supplied can be connected to the receiver 3.5mm jack in a noisy environment.
• White LED flashlight on the receiver
• Built-in 3.7V 1100mA rechargeable lithium battery on both transmitter and receiver

HOW TO CONNECT?

• Connect the transmitter to the wire and turn it on. Red alligator clip for the signal, black clip can be connected to ground or neutral or unloaded.
• Turn on the receiver
• Hang the antenna of the receiver on the ground and swing it back and forth
• When the breakpoint is reached, the tone will weaken and then disappear. The tone will disappear when it is directly above the breakpoint.

SPECIFICATIONS

TRANSMITTER

• Tone Frequency: 200kHz
• Max. Length Distance: 800m / 2400ft
• Max. Depth Distance: 60cm / 24in
• Max. Working Current: Less than 70mA
• Max. Signal Voltage: 15Vp-p
• Signal Display: Tone
• Power Supply: 1 * 3.7V 1100mAh lithium battery built-in
• Transmitter Size: 134 * 49 * 33mm / 5.28 * 1.93 * 1.30in
• Transmitter Weight: 93g / 3.28oz

 RECEIVER

• Frequency: 200kHz
• Max. Working Current: Less than 70mA
• Earphone Jack: 1
• Power Supply: 1 * 3.7V 1100mAh lithium battery
• Receiver Size: 163 * 40 * 27mm / 6.42 * 1.57 * 1.06in
• Receiver Weight: 119g / 4.20oz

Package Dimensions: 25 x 15.2 x 4.9 cm; 440 Grams

Package includes:

• 1pc x Transmitter
• 1pc x Receiver
• 1pc x Earphones
• 1pc x Pouch
• 1pc x Manual (English)
• 1pc x USB-A to Micro USB-B lead
