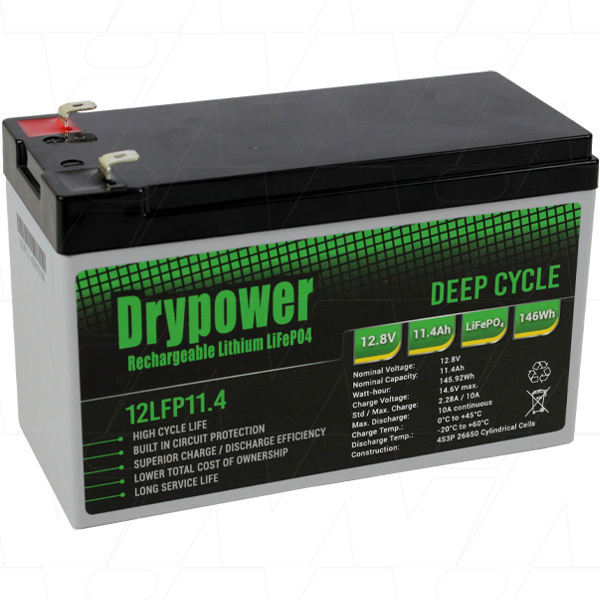

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

• Chemistry    Lithium Iron Phosphate (LiFePO4)
• Voltage    12.8V
• Nominal Capacity    11.4Ah
• Watt Hour    145.9Wh
• Maximum Continuous    10A
• Discharge Current
• Termination    Faston 250 / F2 Size 6.3mm Spade Type
• Size    4S3P
• Width    65mm
• Height    94mm
• Length/Breadth/Depth    151mm
• Weight    1300g

Specifications

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 10A
• Charge voltage: 14.2V - 14.6V (14.2V recommended)
• Standard charge current: 2.28A
• Max. cont. charge current: 10A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 4S
• Parallel Connection: Nil

• >2000 cycles @100% DoD (25°C) to 80% of original capacity
• - longer service life than SLA to reduce maintenance costs.
•   High Energy Density - More Power p/kg
• Higher total system capacity and superior utilisation (full
• 100% DoD) to reduce overall system size and footprint.

• Enclosed in IP5x (dust resistant) or IP6x (dust tight) case
• with closed loop terminals - suitable for harsh environments.
• Stable Chemistry & Built-in Circuit Protection
• IEC & UN38.3 Safety Certified at cell level and integrated
• BMS protection to ensure safety and prevent damage.

• Approx. 1/2 the weight (or less) of equivalent in SLA means
• lower logistics costs and minimal OH&S concerns.
• Superior Charge & Discharge E iciency
• Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA)
• for higher power usage and less downtime when charging.

• Suitable for use in a wider range of applications where
• ambient temperature is atypical: from 20°C up to +60°C.
• Fully Recyclable Battery
• An environmentally friendly battery option, with no lead or
• calcium that can leak into the enviroment.
