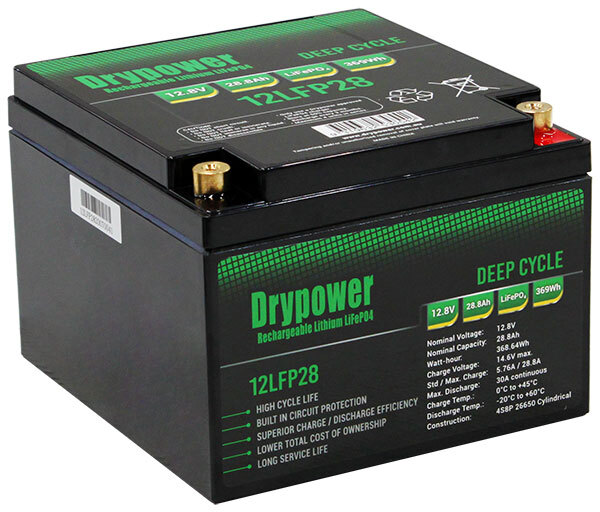

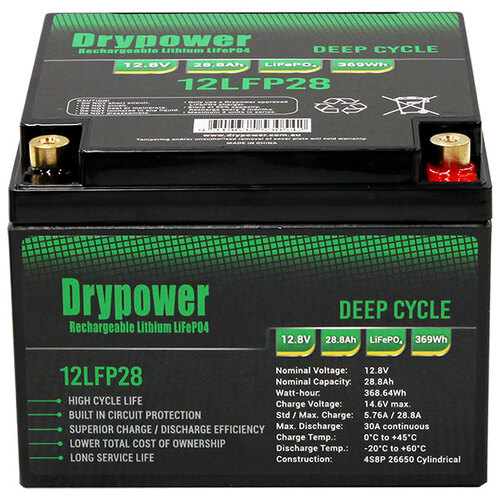

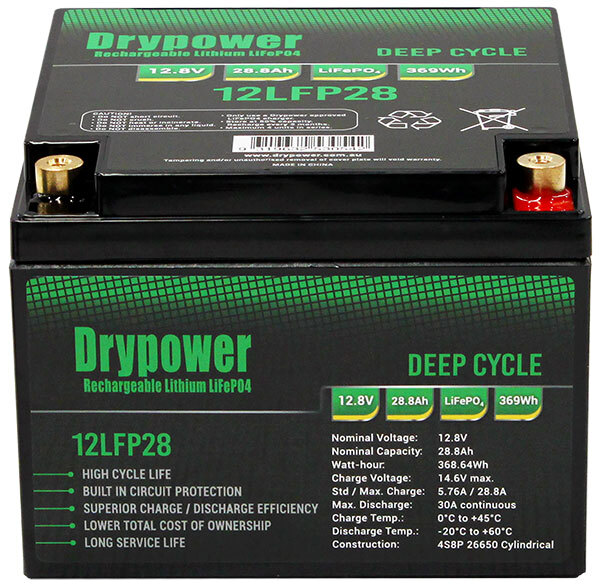

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement 4S8P-Cylindrical Construction

  • Selling Unit    EACH
  • Description    Drypower 12.8V 28.8Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - Up to 4 in Series Capable
  • Chemistry    Lithium Iron Phosphate (LiFePO4)
  • Voltage    12.8V
  • Nominal Capacity    28.8Ah
  • Watt Hour    368.6Wh
  • Maximum Continuous    30A
  • Discharge Current
  • Termination    F8 (M6 Bolts)
  • Size    4S8P
  • Width    166mm
  • Height    125mm
  • Length/Breadth/Depth    176mm
  • Weight    3600g

Specifications

  • Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
  • Max. continuous discharge current: 30A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 5.76A
  • Max. cont. charge current: 28.8A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Up to 4S
 FEATURES & BENEFITS
Long Service Life
  • >2000 cycles @100% DoD (25°C) to 80% of original capacity
  • - longer service life than SLA to reduce maintenance costs.
  •   High Energy Density - More Power p/kg Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint.
Robust Enclosure
  • Enclosed in IP5x (dust resistant) or IP6x (dust tight) case with closed loop terminals - suitable for harsh environments.
Stable Chemistry & Built-in Circuit Protection
  • IEC & UN38.3 Safety Certified at cell level and integrated BMS protection to ensure safety and prevent damage.
Lightweight
  • Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.
Superior Charge & Discharge E iciency
  • Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.
Wide Operating Temperature Tolerance
  • Suitable for use in a wider range of applications where ambient temperature is atypical: from 20°C up to +60°C.
Fully Recyclable Battery
  • An environmentally friendly battery option, with no lead or calcium that can leak into the enviroment.

(12LFP28)

SKU 12LFP28
Model # 12LFP28
Brand DRYPOWER
