High-gain Dual Polarity Sector Antenna for Advanced Wireless Systems

This sector antenna is purpose-built for modern high-capacity wireless networks, offering exceptional performance across the 4.8 to 6.5 GHz frequency range. With a dual ±45° polarity feed system in a single enclosure, it supports MIMO technology for higher throughput and reduced interference. Designed for use in WiFi, WiMAX, WISP, mobile communication, and cell-site applications, it provides operators with reliable long-term operation in challenging outdoor environments. Its optimised radiation pattern, rugged build, and pole-mount design ensure ease of installation and stable connectivity, making it a trusted choice for professional deployments.

Key Features

• Wide frequency coverage: Operates between 4800 and 6500 MHz, making it suitable for multiple wireless LAN and broadband applications.
• High gain output: Provides 18 ± 0.5 dBi gain to deliver powerful signal transmission and extended coverage in point-to-multipoint systems.
• Dual polarity design: Incorporates a ±45° dual polarity feed system in one enclosure, enabling efficient MIMO operation for higher data rates and improved link quality.
• Optimised beam control: Features a 90° ±5° horizontal beamwidth and 4° ±0.3° vertical beamwidth, ensuring targeted coverage while minimising interference.
• Low VSWR performance: Achieves ≤1.8 voltage standing wave ratio, maximising efficiency by reducing signal reflection and power loss.
• Rugged construction: Engineered to withstand wind speeds up to 126 m/s, with a durable white housing rated for temperatures from -35°C to +50°C.

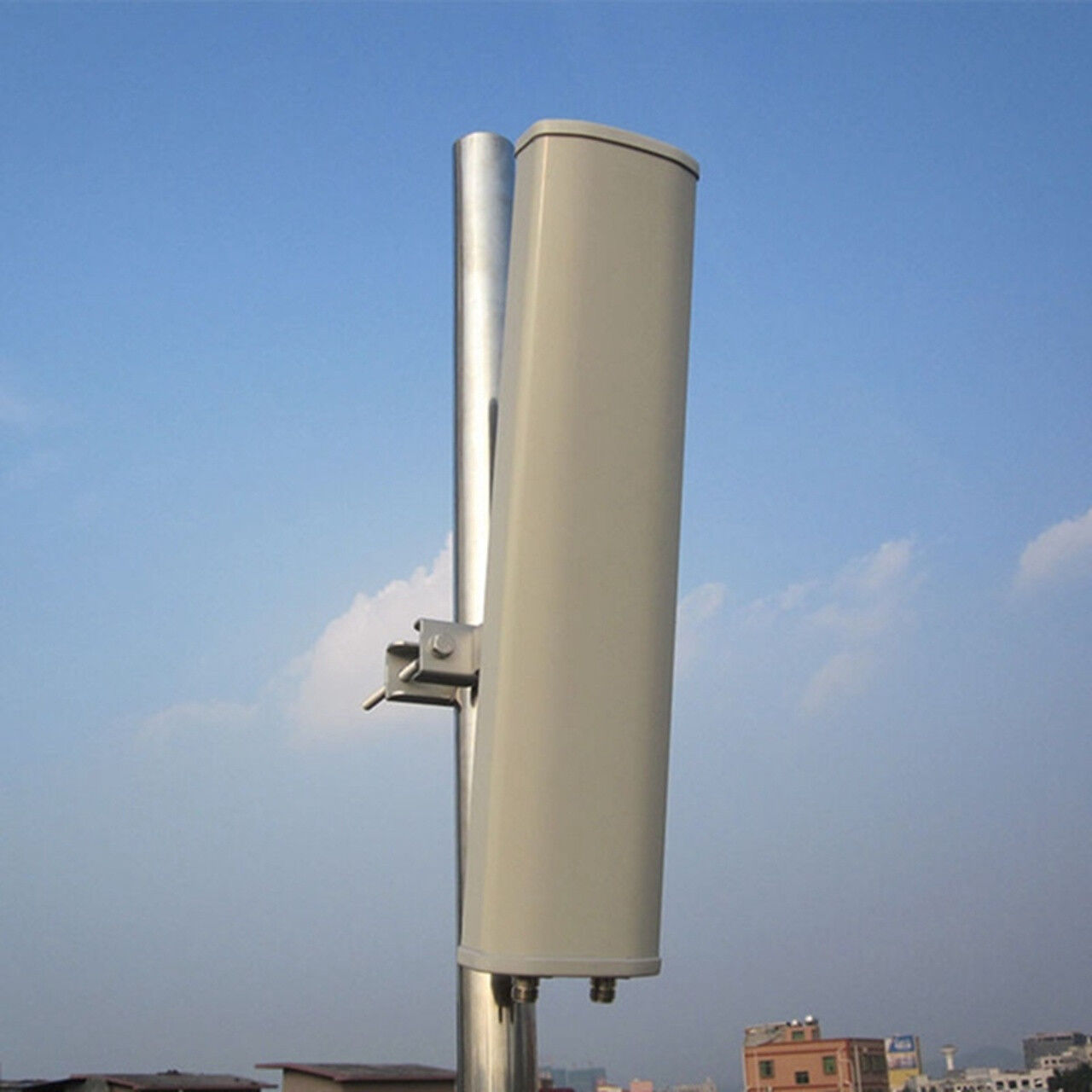

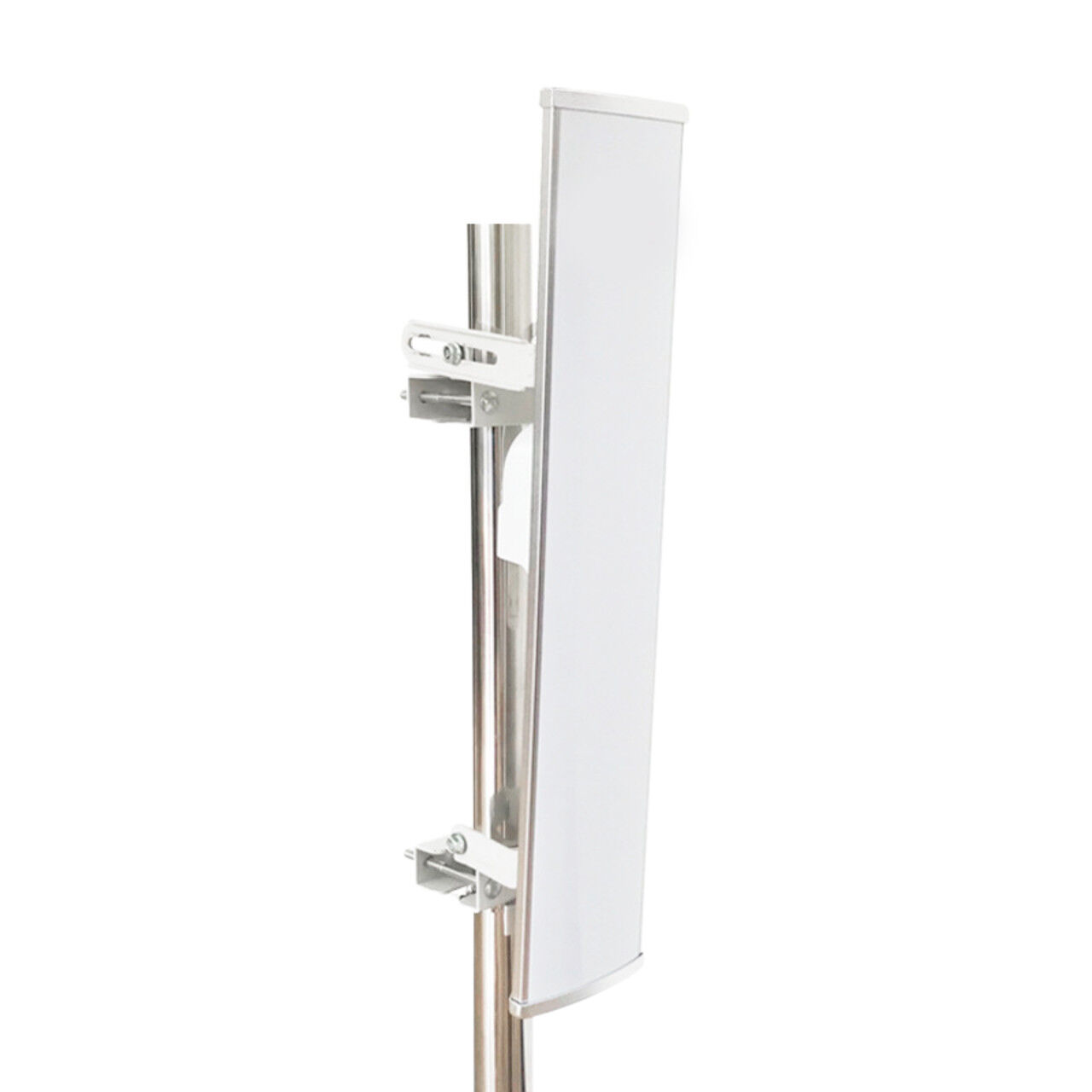

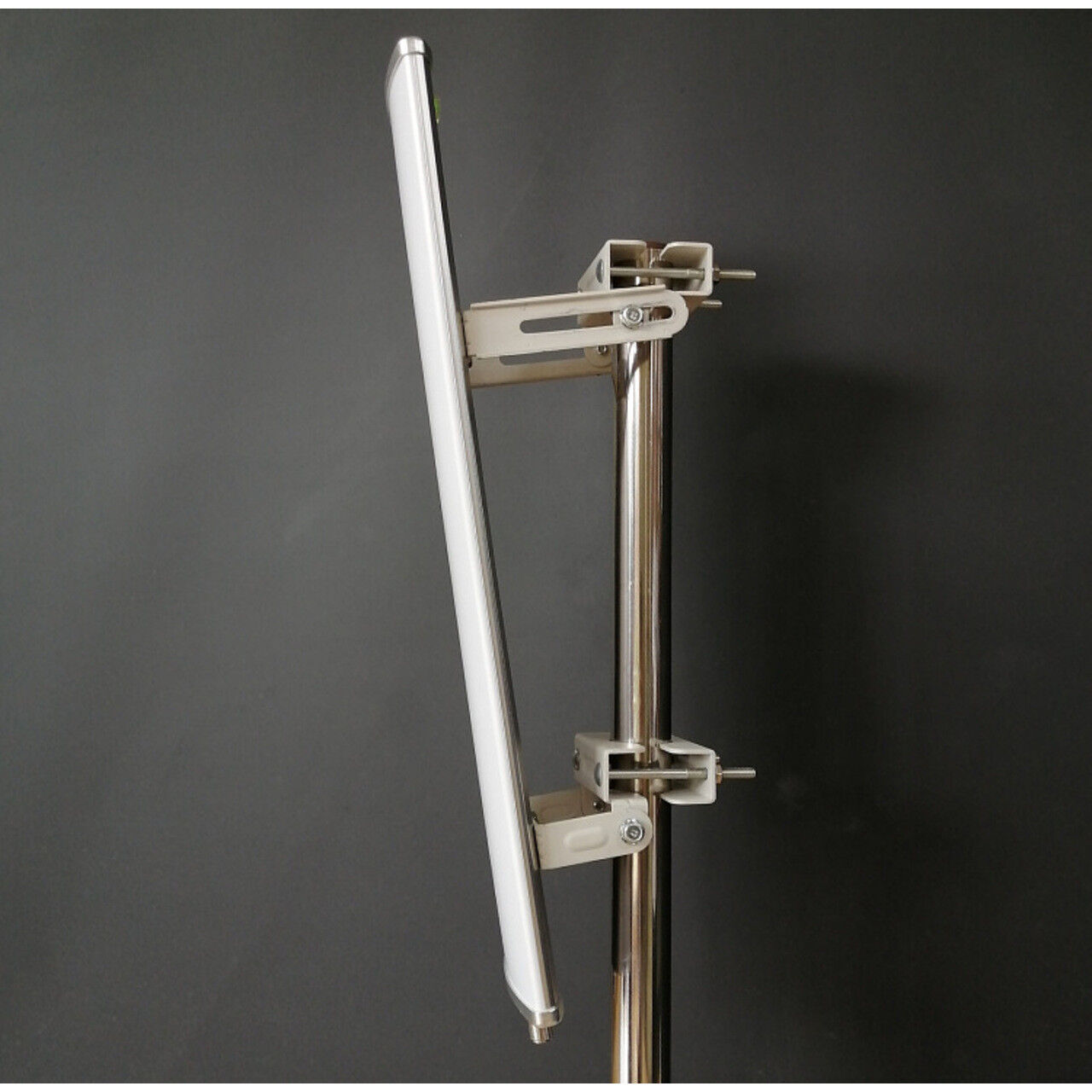

• Pole-mount installation: Supplied with mounting brackets, hose clamp, cables, and screws for fast and secure setup on poles from 30 to 80 mm in diameter.
• Professional applications: Ideal for WiFi hotspots, WISP base stations, WiMAX deployments, mobile backhaul, and cell-site expansions.
• Complete installation kit: Includes all necessary hardware — antenna, two mounting brackets, one hose clamp, two cables, and four screws — for immediate deployment.

Engineered for reliability and long-term stability, this antenna provides network operators with an efficient, high-gain solution for outdoor wireless coverage.
